Bobcat
/
440
/

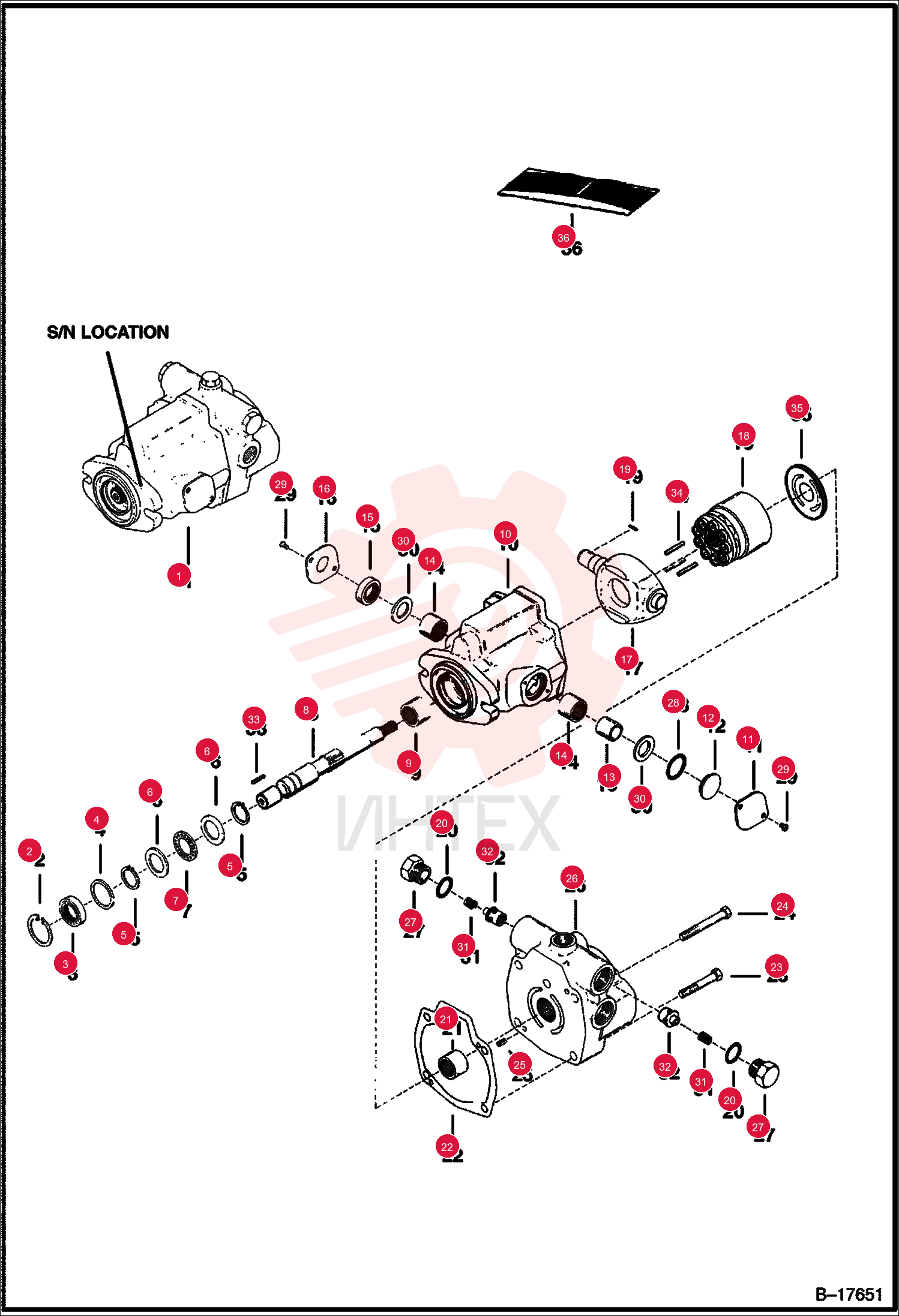

PUMP 6630021 (2)

PUMP 6630021 (2)

PUMP 6630021 (2)

1 6630021

  • 6630021 - PUMP
  • New - Splined Shaft

2 6668006

  • 6668006 - PUMP
  • New - Tapered Keyed Shaft - 70145-LBC

3 661415

  • 661415 - SNAP RING

4 6598875

  • 6598875 - WASHER

5 710776

  • 710776 - RING
  • RETAINER

6 6598878

  • 6598878 - RACE

7 3292657

  • 3292657 - BEARING
  • thrust

8 6630020

  • 6630020 - SHAFT
  • DRIVE
  • drive - Splined

9 851239

  • 851239 - BEARING

10 6598887

  • 6598887 - COVER

11 6648789

  • 6648789 - COVER
  • Was 6598888

12 6598883

  • 6598883 - RACE

13 654387

  • 654387 - BEARING

14 6598886

  • 6598886 - COVER

15 6598892

  • 6598892 - CAM
  • yoke

16 6598893

  • 6598893 - ROTAT.KIT

17 6630170

  • 6630170 - KEY

18 654386

  • 654386 - BEARING

19 17C532

  • 17C532 - BOLT 5

20 17C540

  • 17C540 - BOLT

21 214028

  • 214028 - PIN

22 6630019

  • 6630019 - BACKPLATE
  • back - W/Ref. 21 - 70145-LAK

23 6667997

  • 6667997 - BACKPLATE
  • back - W/Ref. 21 - 70145-LBC

24 6513998

  • 6513998 - PLUG
  • W/Ref. 20

25 25K40108

  • 25K40108 - O RING 10

26 6598881

  • 6598881 - SCREW

27 6598876

  • 6598876 - WASHER

28 6514010

  • 6514010 - SPRING
  • Order 6513998 Plug
  • 6630243 Seat & 6514010 Spring

29 6630243

  • 6630243 - POPPET

30 6598880

  • 6598880 - KEY
  • For Tapered Shaft

31 6654126

  • 6654126 - PIN

32 6667998

  • 6667998 - PLATE
  • wear - 70145-LBC

33 6598896

  • 6598896 - KIT
  • SEAL
  • Ref. 2
  • 3
  • 5
  • 15
  • 20
  • 22 & 28
