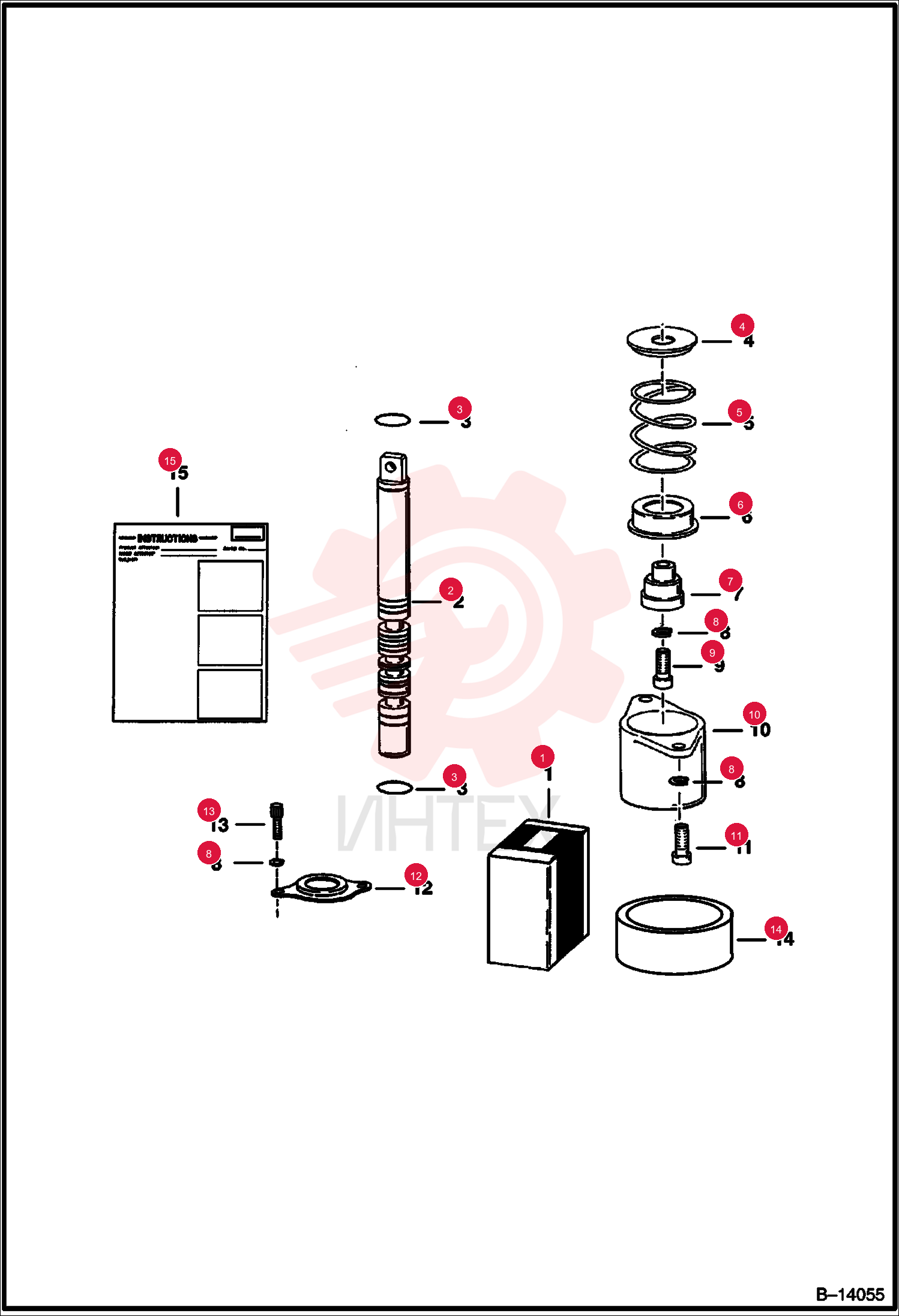

SPOOL 6592119

SPOOL 6592119

SPOOL 6592119

1 6592119

  • 6592119 - SPOOL

2 6665089

  • 6665089 - SEAL 5
  • lip seal - Was 6659554

3 6646372

  • 6646372 - SEAL
  • QUAD RING
  • quad ring seal

4 7211397

  • 7211397 - WASHER
  • SPRING
  • Was 6587523

5 6587580

  • 6587580 - SPRING
  • Was 6592106

6 6592100

  • 6592100 - COLLAR

7 6592109

  • 6592109 - ADAPTER

8 22E4

  • 22E4 - WASHER

9 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE
  • Was 6587633

10 6588163

  • 6588163 - SCREW
  • Was 6588164

11 6592123

  • 6592123 - RETAINER

12 6588165

  • 6588165 - SCREW
  • Was 73G000410B

13 6662848

  • 6662848 - CAP

14 6570145

  • 6570145 - INSTRUCTIONS
