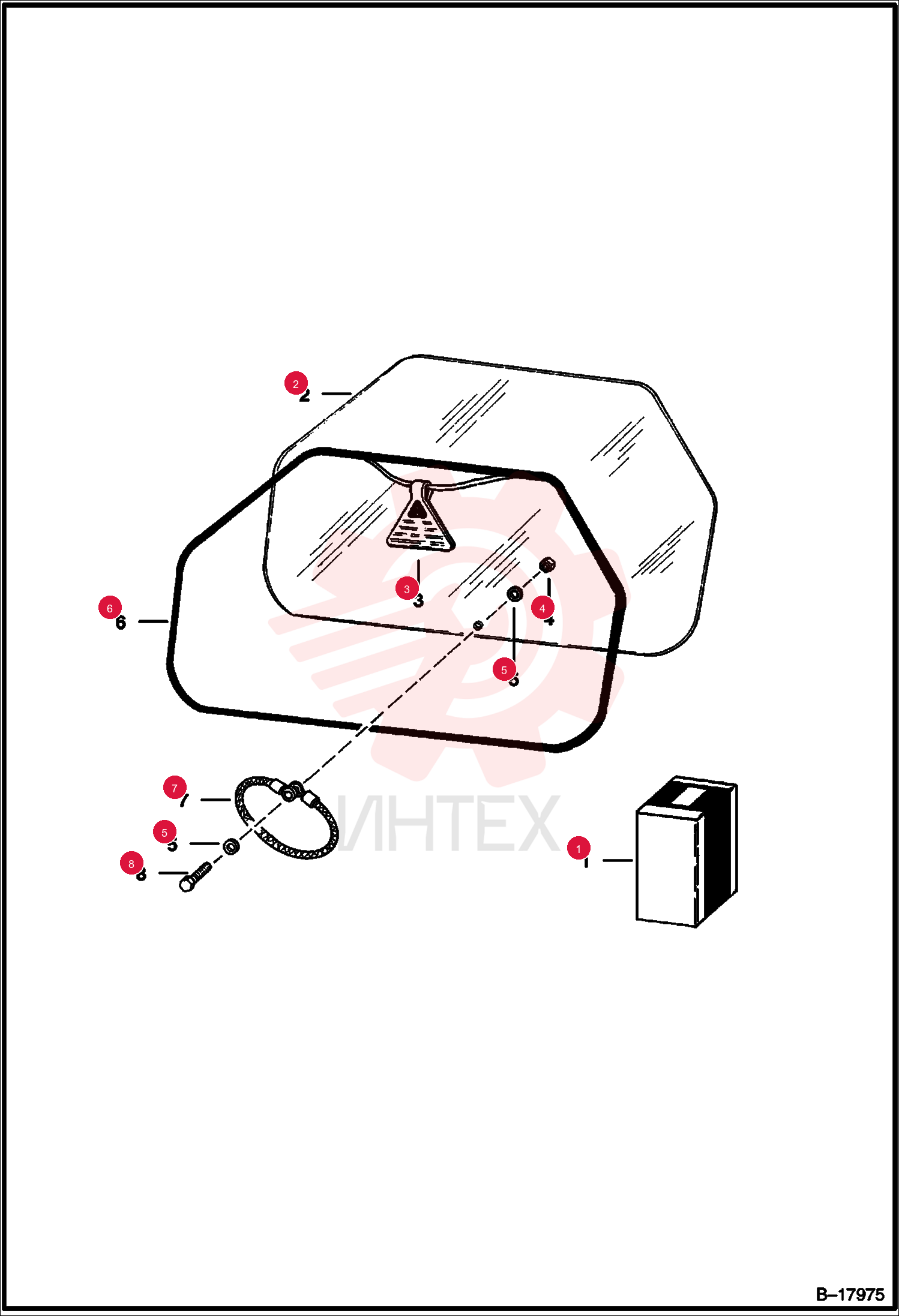

WINDOW 6565767

WINDOW 6565767

WINDOW 6565767

1 6565767

  • 6565767 - WINDOW

2 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

3 85D5

  • 85D5 - NUT PRETRQ HEX LOCK
  • hex

4 25E15

  • 25E15 - WASHER FLAT PLAIN
  • flat

5 6658352

  • 6658352 - MOULDING
  • bulk - sold per foot - Was 6554221

6 6554149

  • 6554149 - CORD
  • bulk - sold per foot - Also Order Ref. 3 (6731478 exit tag) - Was 6554223

7 6555331

  • 6555331 - WIRE ROPE

8 17C516

  • 17C516 - BOLT
  • hex
