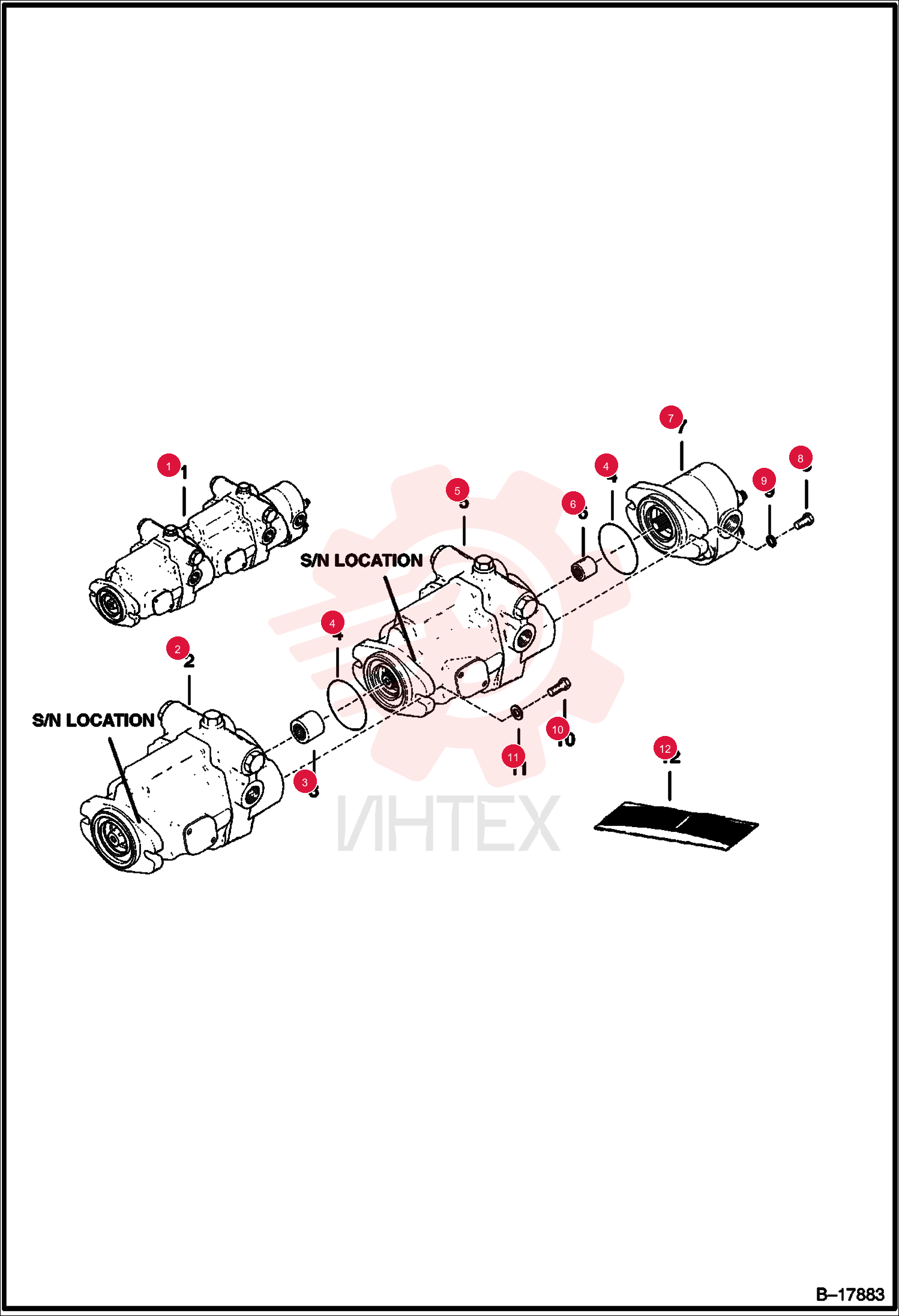

PUMP 6598726 (2)

PUMP 6598726 (2)

PUMP 6598726 (2)

1 6598726

  • 6598726 - PUMP
  • New - Ref. 2-11 - Splined Front Shaft - 78116-LAA

2 6630021

  • 6630021 - PUMP
  • New - Splined Shaft

3 6668006

  • 6668006 - PUMP
  • New - Tapered Keyed Shaft - 70145-LBC

4 6598855

  • 6598855 - COUPLER

5 6660339

  • 6660339 - GASKET
  • Use between gear pump 7003484 & piston pump

6 25K20308

  • 25K20308 - O RING 10
  • Was 6510656

7 6598856

  • 6598856 - COUPLER

8 17C620

  • 17C620 - BOLT

9 6510585

  • 6510585 - SEAL
  • WASHER

10 17C622

  • 17C622 - BOLT

11 6630023

  • 6630023 - SEAL KIT
  • Complete Pump
