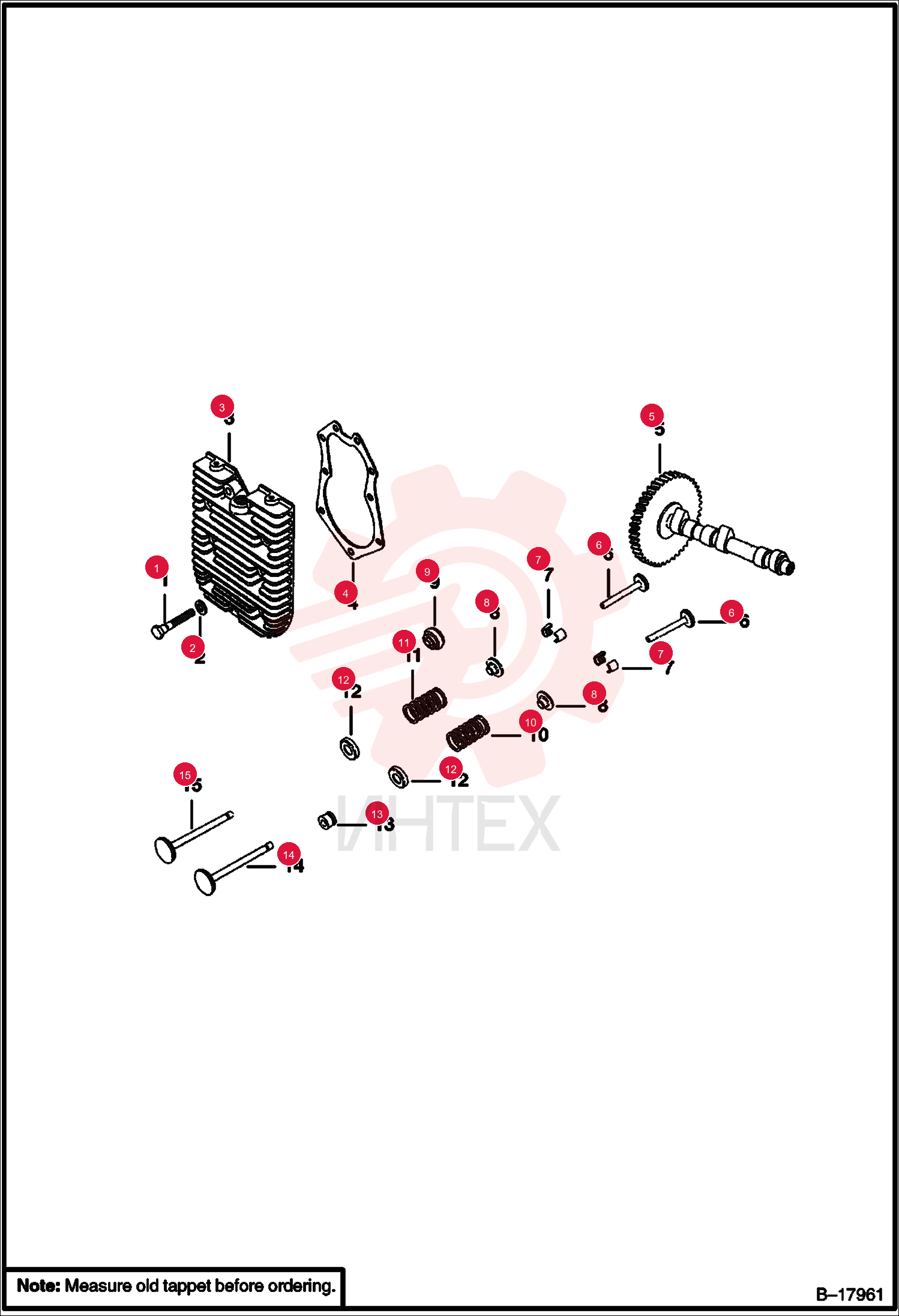

SCREW 47G524 (1)

SCREW 47G524 (1)

SCREW 47G524 (1)

1 47G524

  • 47G524 - SCREW
  • Was 74G000524B

2 6599792

  • 6599792 - WASHER

3 6632093

  • 6632093 - GASKET
  • Was 6599832

4 6599810

  • 6599810 - CAMSHAFT

5 6630559

  • 6630559 - CAMSHAFT

6 6518861

  • 6518861 - KEY
  • Pair

7 6512175

  • 6512175 - RETAINER

8 6518870

  • 6518870 - ROTATOR

9 6599794

  • 6599794 - SPRING
  • intake

10 6599795

  • 6599795 - SPRING
  • exhaust

11 6518883

  • 6518883 - SEAT
  • Was 6599815

12 6599823

  • 6599823 - SEAL

13 6599814

  • 6599814 - VALVE
  • INTAKE
  • intake

14 6599812

  • 6599812 - VALVE
  • EXHAUST
  • exhaust
