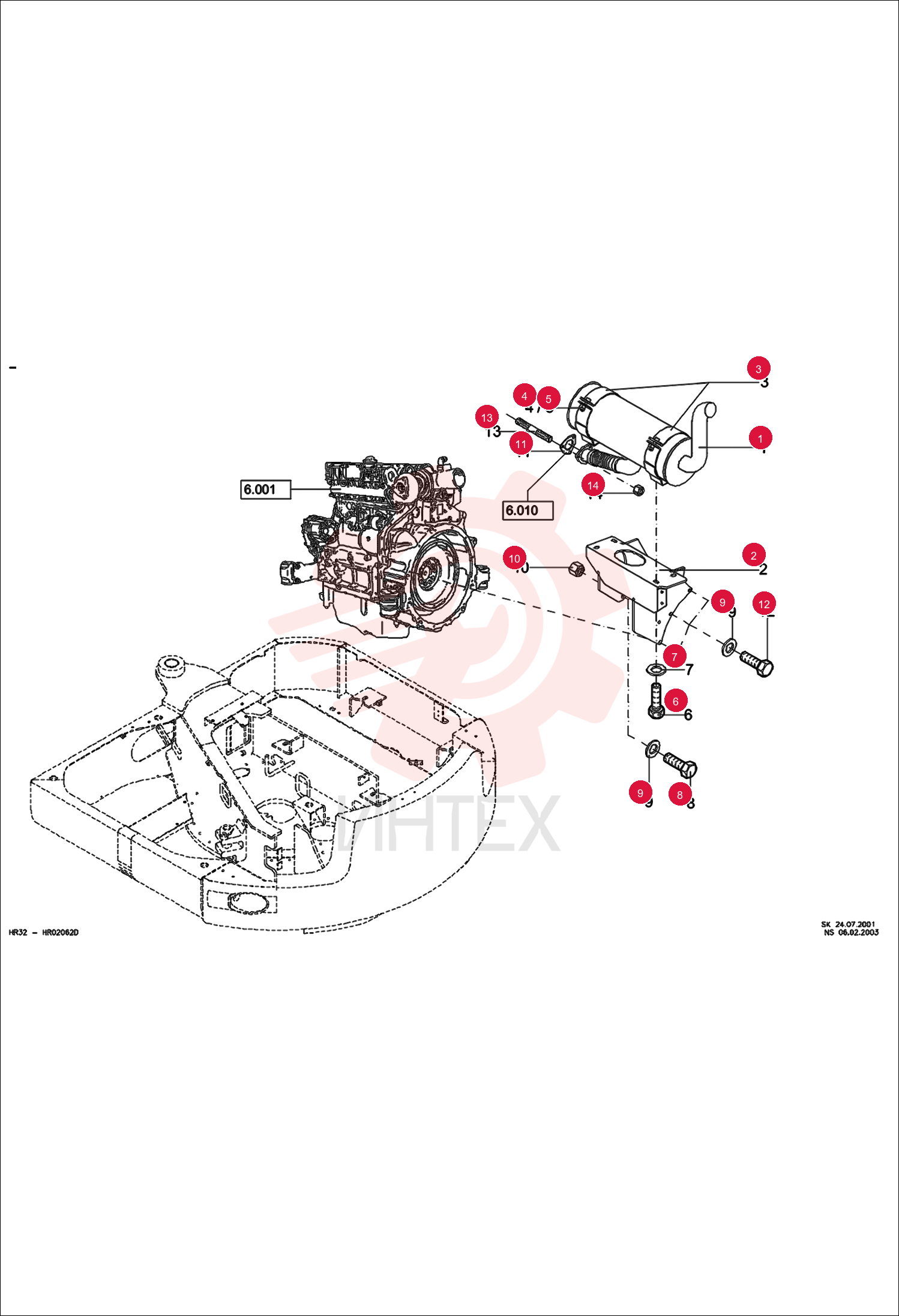

SILENCER 0190016030

SILENCER 0190016030

SILENCER 0190016030

1 0190016030

  • 0190016030 - SILENCER
  • exhaust

2 5761661005

  • 5761661005 - PURIFIER
  • MUFFLER

3 6190016020

  • 6190016020 - EXHAUST SUPPORT

4 5501660675

  • 5501660675 - BRACKET

5 1045707719

  • 1045707719 - BOLT

6 1210707011

  • 1210707011 - NUT

7 1008707018

  • 1008707018 - BOLT

8 1343707057

  • 1343707057 - WASHER

9 1008707424

  • 1008707424 - BOLT

10 1343707059

  • 1343707059 - WASHER

11 1212251013

  • 1212251013 - NUT

12 5411657099

  • 5411657099 - SEAL
  • Was 5411656449

13 1008707124

  • 1008707124 - BOLT

14 5411656901

  • 5411656901 - STUD

15 5411657804

  • 5411657804 - NUT
  • Was 5411657102
