Главная
/
Бренды
/
Bobcat
/
444
/

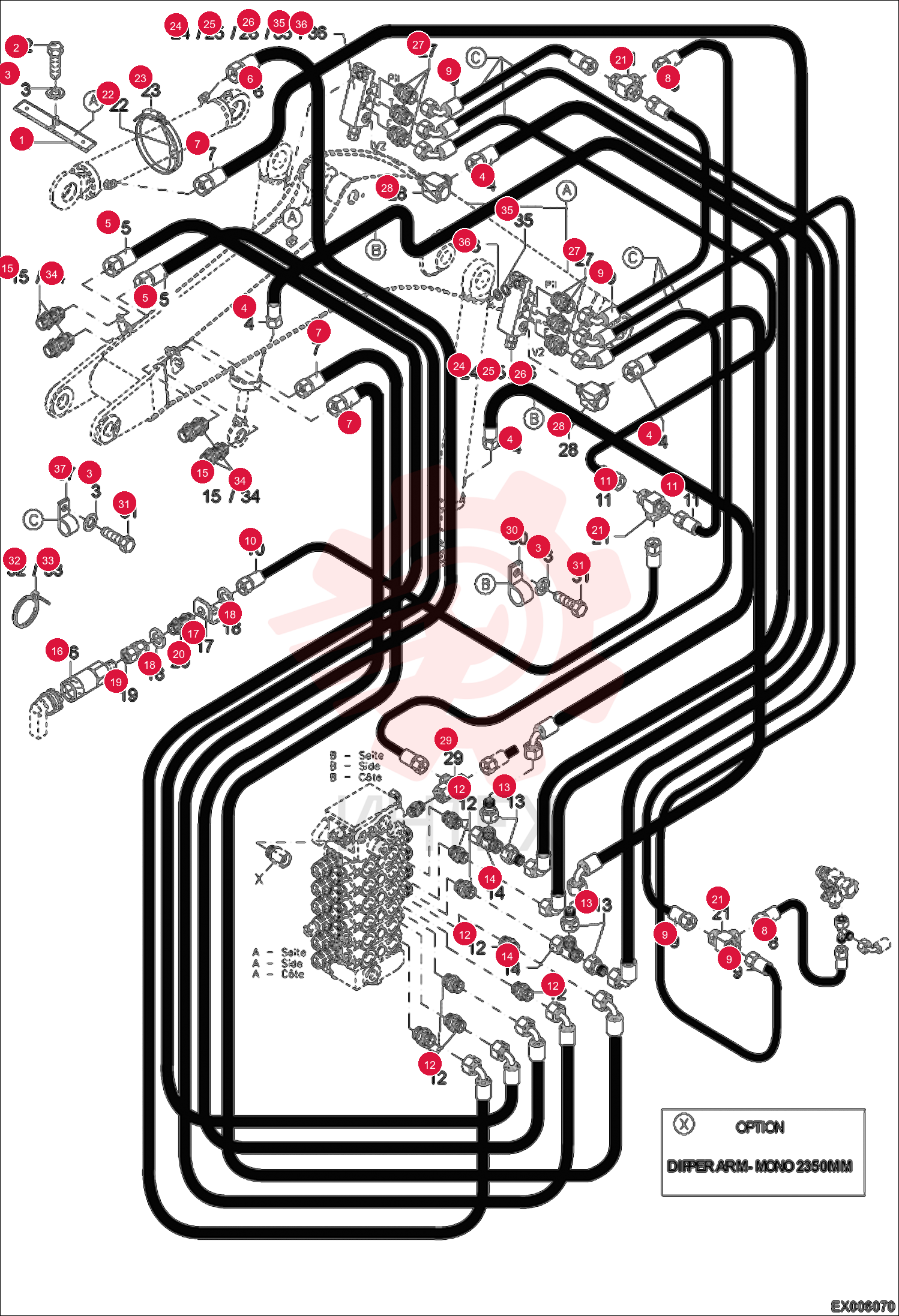

PLATE 0207607522 (2)

PLATE 0207607522 (2)

PLATE 0207607522 (2)

1 0207607522

  • 0207607522 - PLATE
  • Was 6207607520

2 1008707817

  • 1008707817 - BOLT

3 1343707057

  • 1343707057 - WASHER

4 4462370441

  • 4462370441 - HOSE

5 4466600512

  • 4466600512 - HOSE

6 4466505512

  • 4466505512 - HOSE

7 4466601512

  • 4466601512 - HOSE

8 4506320351

  • 4506320351 - HOSE

9 4506115351

  • 4506115351 - HOSE ASSEMBLY CPL.

10 5066315843

  • 5066315843 - HOSE

11 5066315847

  • 5066315847 - HOSE

12 1915060278

  • 1915060278 - FITTING

13 1934060219

  • 1934060219 - HOSE

14 1919060366

  • 1919060366 - FITTING

15 1913060166

  • 1913060166 - FITTING

16 5154650507

  • 5154650507 - PRESSURE ABSORBER

17 6203212010

  • 6203212010 - ANGLE

18 1290707025

  • 1290707025 - WASHER

19 1943000101

  • 1943000101 - CONNECTION

20 1913060151

  • 1913060151 - FITTING

21 1914060111

  • 1914060111 - FITTING

22 0110012050

  • 0110012050 - RUBBER LAYER

23 5660095200

  • 5660095200 - HOSE CLIP

24 5167659777

  • 5167659777 - VALVE
  • LOAD CHECK
  • W/Ref. 35 & 36 - Was 7253003

25 1008707019

  • 1008707019 - BOLT

26 1290707018

  • 1290707018 - WASHER

27 1915060255

  • 1915060255 - FITTING

28 1921060570

  • 1921060570 - FITTING

29 1919060351

  • 1919060351 - FITTING

30 5000210400

  • 5000210400 - HOSE CLIP

31 1008707018

  • 1008707018 - BOLT

32 5350650294

  • 5350650294 - BINDER

33 5350650280

  • 5350650280 - BINDER

34 1636815281

  • 1636815281 - SEAL RING
  • Was 1936815281

35 5167660058

  • 5167660058 - O-RING

36 5167660059

  • 5167660059 - BACKUP WASHER

37 5000136820

  • 5000136820 - HOSE CLIP
