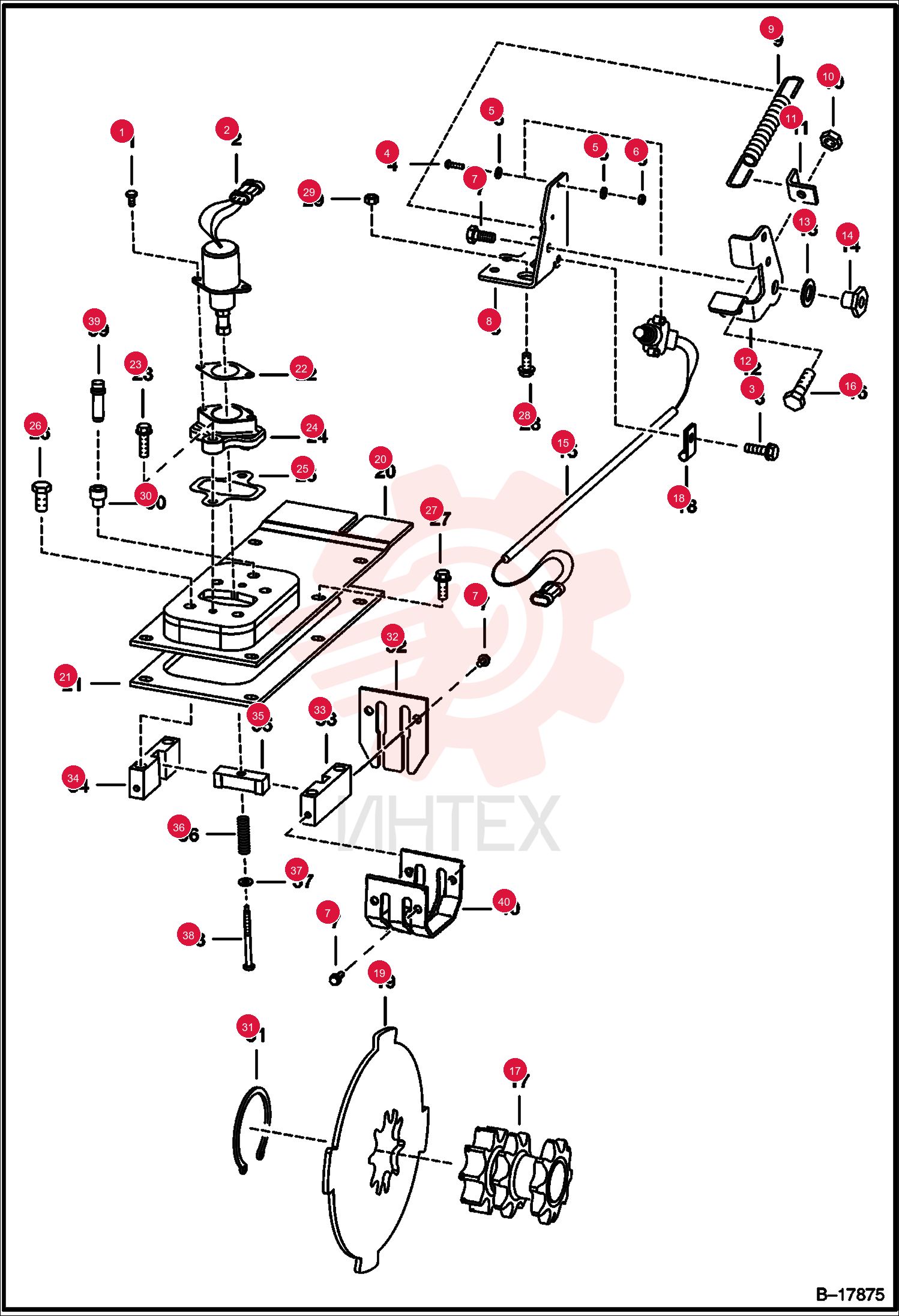

BOLT 5 17C412 (1)
1 17C412
- 17C412 - BOLT 5
2 7136559
- 7136559 - SOLENOID ASSEMBLY
- Was 6681512
3 84G3712
- 84G3712 - SCREW THD ROLLING TT
4 23G812
- 23G812 - SCREW
5 25E8
- 25E8 - WSHR
6 12D8
- 12D8 - NUT HEX MACH SCREW
7 17C610
- 17C610 - BOLT
8 6707313
- 6707313 - MOUNT
9 6585860
- 6585860 - SPRING
10 95D6
- 95D6 - NUT HEXAGON
- Was 91D000006B
11 6707315
- 6707315 - MOUNT
12 6707314
- 6707314 - PEDAL
- brake
13 6700170
- 6700170 - WASHER
- plastic
14 6559479
- 6559479 - NUT RETAINING
15 6707337
- 6707337 - SWITCH
- LOCK TRACTION
16 17C620
- 17C620 - BOLT
17 30H23
- 30H23 - CLAMP
18 6706736
- 6706736 - DISC BRAKE
- disc
19 6706684
- 6706684 - COVER
20 6593418
- 6593418 - GASKET
21 6706737
- 6706737 - GASKET SOLENOID
22 84G3720
- 84G3720 - SCREW THD ROLLING TT
23 6706718
- 6706718 - MOUNT SOLENOID
24 6708016
- 6708016 - GASKET COVER
25 17C820
- 17C820 - BOLT 5
26 84G3716
- 84G3716 - SCREW THD ROLLING TT
27 37C616
- 37C616 - BOLT
28 89D6
- 89D6 - NUT
29 6553411
- 6553411 - BUSHING
- PRESS FIT 5
30 791442
- 791442 - RING SNAP
31 6705898
- 6705898 - BLOCK GUIDE
- guide - RH
32 6705897
- 6705897 - BLOCK GUIDE
- guide - LH
33 6705896
- 6705896 - WEDGE TRACTION LOCK
34 6708018
- 6708018 - SPRING COMPRESSION
35 25E13
- 25E13 - WASHER FLAT PLAIN
36 6708267
- 6708267 - SCREW SOLENOID
37 6680970
- 6680970 - VENT BREATHER
- Was 6670627
38 6708787
- 6708787 - GUIDE
