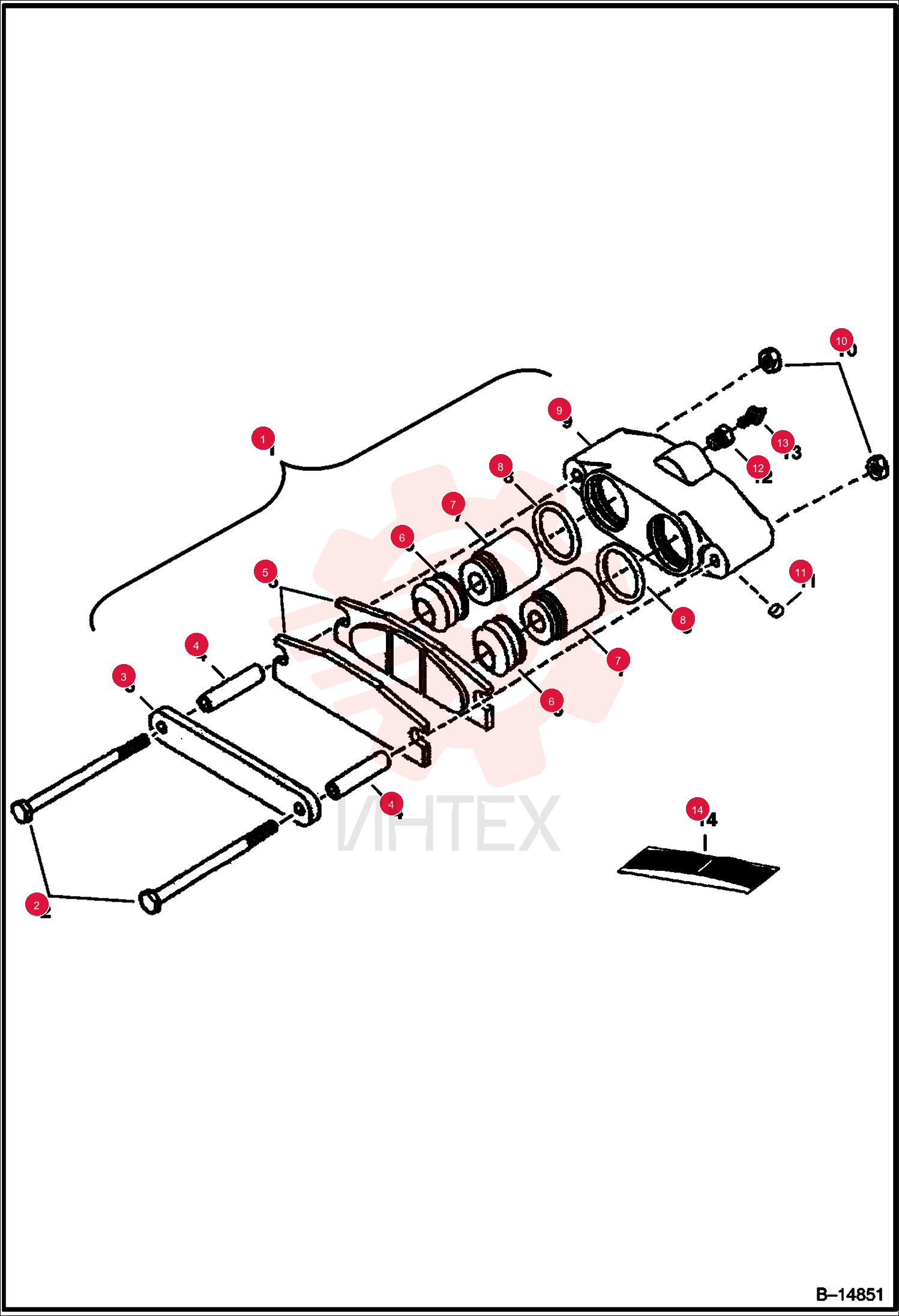

BRAKE CYL 6666932

BRAKE CYL 6666932

BRAKE CYL 6666932

1 6666932

  • 6666932 - BRAKE CYL
  • W/Ref. 2-12

2 6669154

  • 6669154 - BOLT

3 6669155

  • 6669155 - PLATE

4 6669156

  • 6669156 - SPACER

5 6669184

  • 6669184 - STATOR

6 6669159

  • 6669159 - PISTON

7 6669162

  • 6669162 - NUT

8 6669163

  • 6669163 - PLUG

9 6669164

  • 6669164 - ADAPTOR

10 6669165

  • 6669165 - SCREW BLD
  • bleeder

11 6669185

  • 6669185 - O-RING KT
  • W/Ref. 6 & 8
