Bobcat
/
450
/

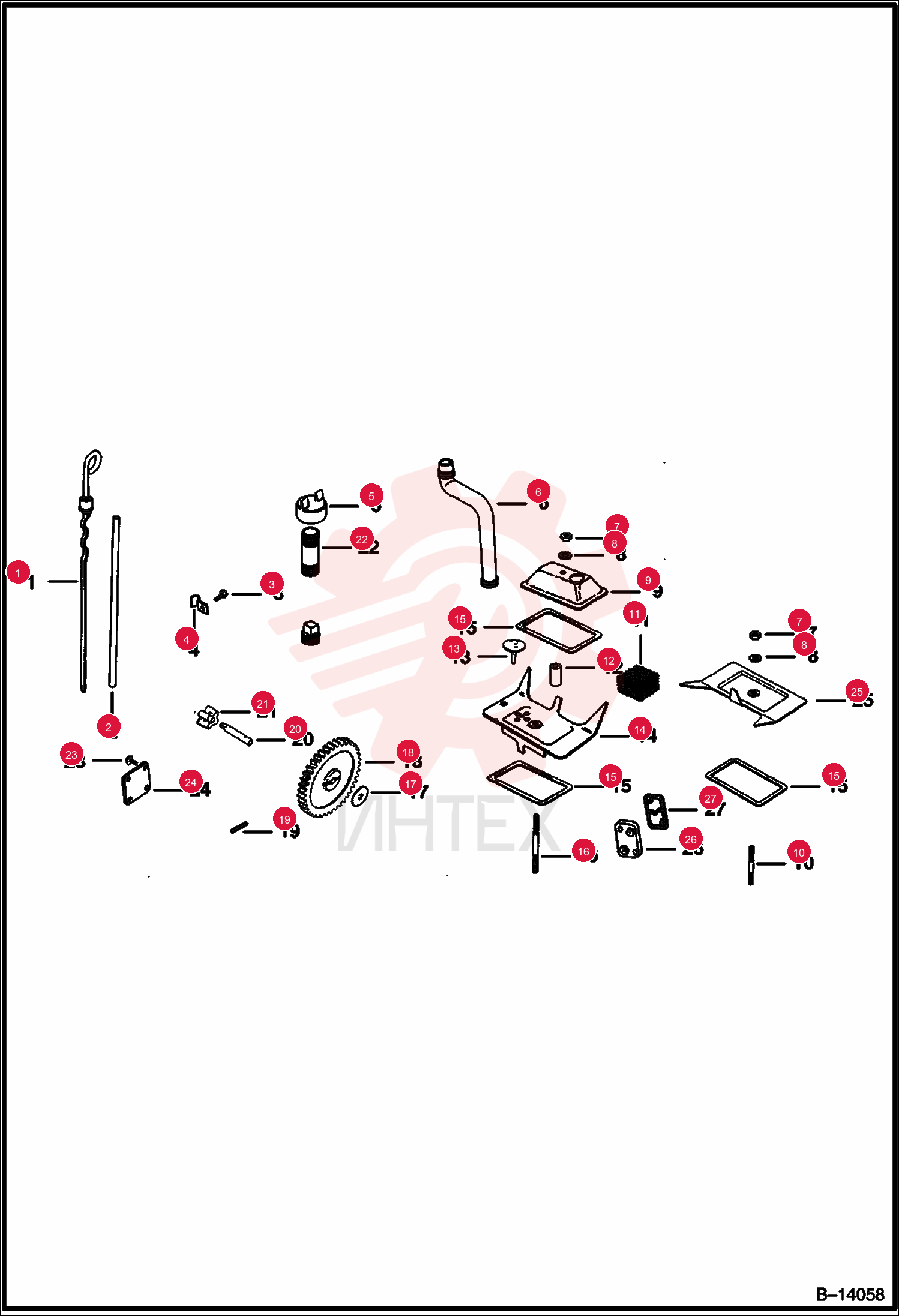

DIPSTICK 6599825

DIPSTICK 6599825

DIPSTICK 6599825

1 6599825

  • 6599825 - DIPSTICK

2 6632119

  • 6632119 - TUBE

3 45G1006

  • 45G1006 - BOLT

4 6599868

  • 6599868 - CLIP

5 6632085

  • 6632085 - HOSE

6 61D4

  • 61D4 - NUT 5

7 6518949

  • 6518949 - WASHER

8 6599851

  • 6599851 - COVER

9 6599786

  • 6599786 - STUD

10 6599796

  • 6599796 - FILTER

11 6599822

  • 6599822 - SEAL

12 6599888

  • 6599888 - VALVE

13 6669304

  • 6669304 - BREATHER
  • W/Ref. 13 - Was 6599853

14 6599836

  • 6599836 - GASKET

15 6518915

  • 6518915 - STUD

16 6599885

  • 6599885 - SPACER

17 6599831

  • 6599831 - PLAS-GEAR
  • oil pump

18 220940

  • 220940 - PIN ROLL

19 6599841

  • 6599841 - SHAFT

20 6632169

  • 6632169 - OIL PUMP

21 6632118

  • 6632118 - NIPPLE

22 46G1006

  • 46G1006 - SCREW

23 6599850

  • 6599850 - COVER

24 6632523

  • 6632523 - COVER
  • Oil Filter

25 6632138

  • 6632138 - GASKET
  • Oil Filter
