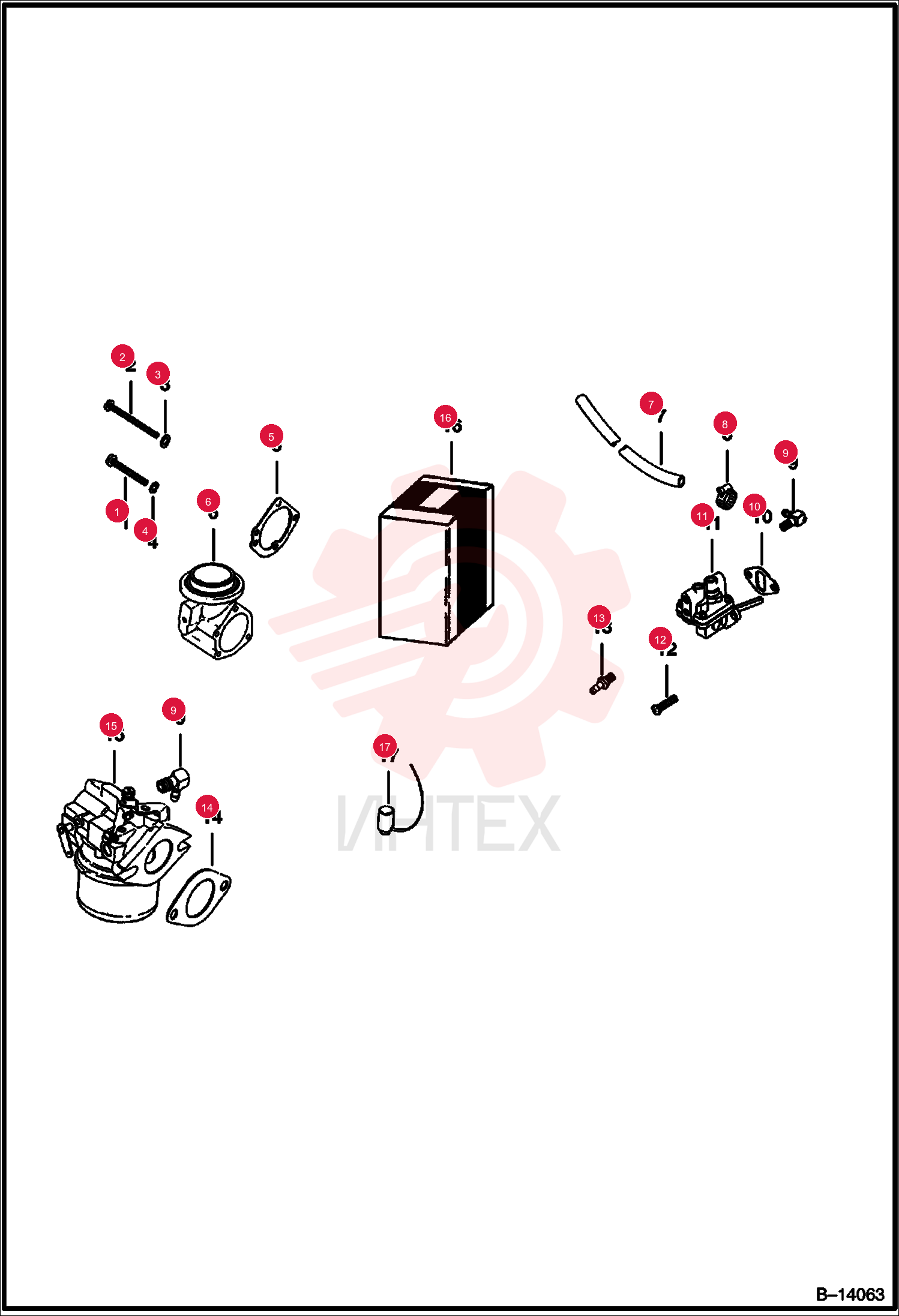

SCREW 86G1024

SCREW 86G1024

SCREW 86G1024

1 86G1024

  • 86G1024 - SCREW

2 616675

  • 616675 - WASHER

3 15E10

  • 15E10 - WASHER

4 6512163

  • 6512163 - GASKET

5 6632074

  • 6632074 - ELBOW

6 6632168

  • 6632168 - LINE

7 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

8 6512203

  • 6512203 - GASKET

9 6630063

  • 6630063 - FUEL PUMP
  • W/Ref. 10

10 43G412

  • 43G412 - SCREW

11 6518866

  • 6518866 - GASKET

12 6670850

  • 6670850 - FLOAT
  • float

13 6648829

  • 6648829 - KIT
  • REPAIR
  • carburetor - See Service Letter Jan. 28 1991 - w/o float

14 6658305

  • 6658305 - SOLENOID
  • For 6658304 Carb. Ref. 15 Eng. Spec. 24655
