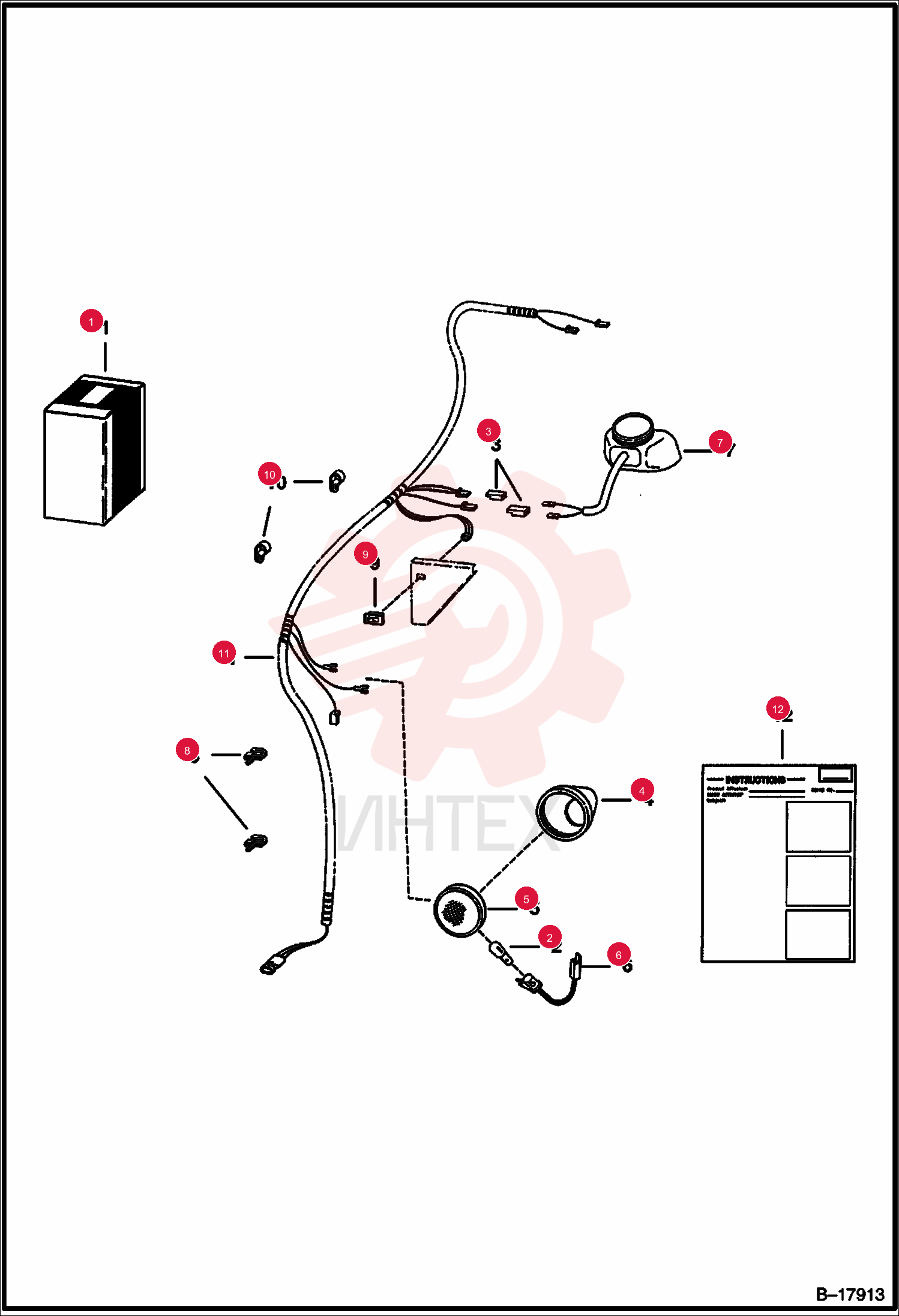

KIT, LIGHT 6708324

KIT, LIGHT 6708324

KIT, LIGHT 6708324

1 6708324

  • 6708324 - KIT
  • LIGHT
  • Ref. 2-10 & 12

2 898731

  • 898731 - LAMP

3 6519548

  • 6519548 - CONN BODY

4 6558142

  • 6558142 - HOUSING
  • LAMP

5 6563740

  • 6563740 - LIGHT
  • SEALED BEAM

6 6564907

  • 6564907 - SOCKET ASSY LAMP

7 6577801

  • 6577801 - LIGHT
  • FRONT ASSY
  • assy

8 6630585

  • 6630585 - CLIP

9 6665410

  • 6665410 - SWITCH
  • HEADLIGHT

10 30H55

  • 30H55 - CLIP

11 6724070ENUS

  • 6724070ENUS - INSTRUCTIONS
  • Was 6724070
