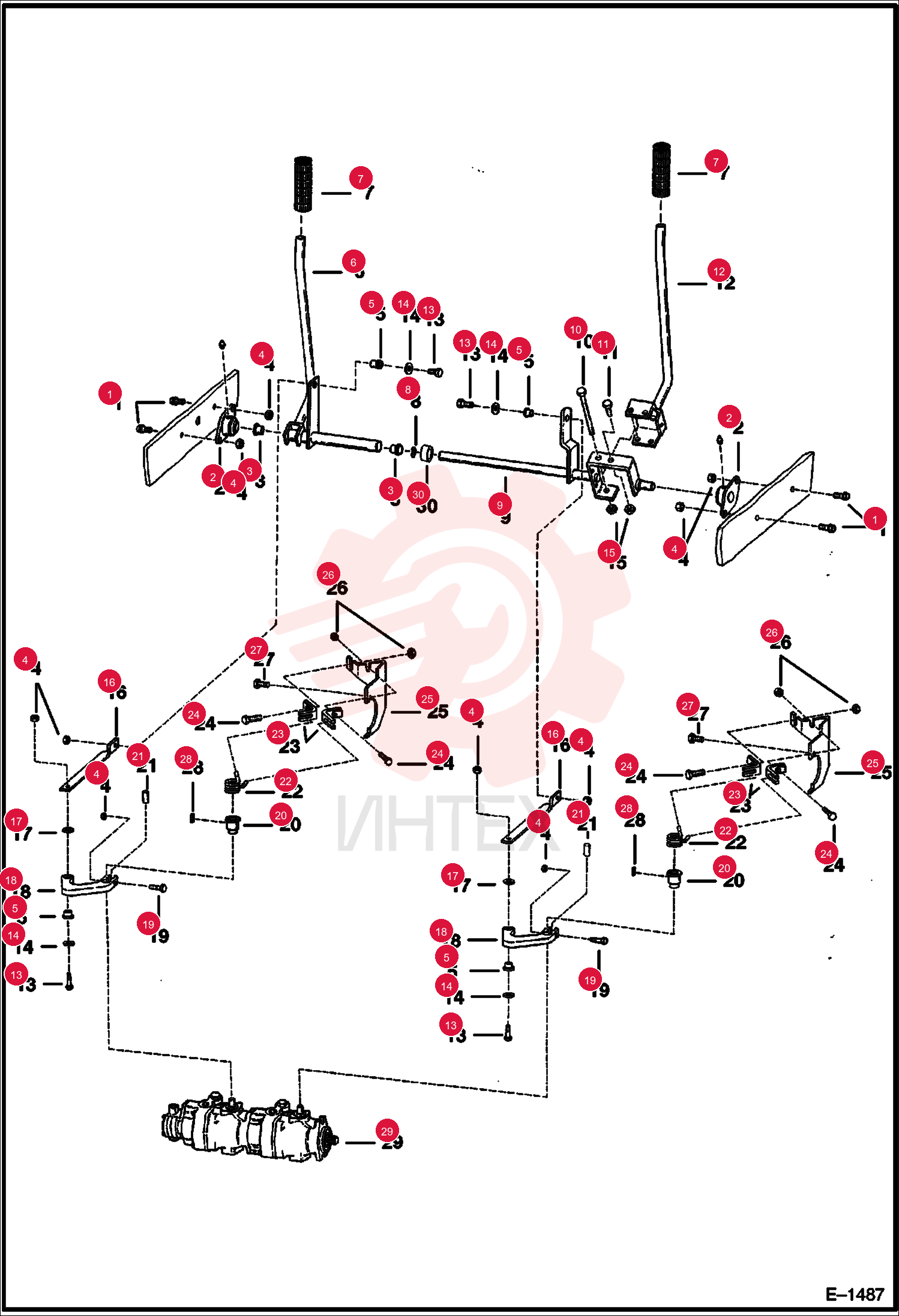

SCREW FLGD HEX CAP 35C612

SCREW FLGD HEX CAP 35C612

SCREW FLGD HEX CAP 35C612

1 35C612

  • 35C612 - SCREW FLGD HEX CAP

2 6558736

  • 6558736 - BUSHING PIVOT

3 6512027

  • 6512027 - BUSHING

4 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

5 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • Was 6630081

6 6513963

  • 6513963 - GRIP HANDLE

7 6599741

  • 6599741 - WASHER WAVE SPRING

8 6728012

  • 6728012 - SHFT ASSY
  • Use W/Ref. 30 Spacer

9 6553081

  • 6553081 - BOLT AUX PIVOT

10 17C620

  • 17C620 - BOLT

11 6707406

  • 6707406 - LEVER

12 17C628

  • 17C628 - BOLT

13 6563914

  • 6563914 - WASHER

14 61D6

  • 61D6 - NUT HEX FINISHED GR5

15 6709397

  • 6709397 - LINK
  • Was 6564245

16 25E29

  • 25E29 - WSHR

17 6564244

  • 6564244 - LEVER

18 17C632

  • 17C632 - BOLT 5

19 6564243

  • 6564243 - LEVER HUB

20 662342

  • 662342 - PIN

21 6564239

  • 6564239 - SPRING

22 6564241

  • 6564241 - GUIDE ASSEMBLY

23 6565191

  • 6565191 - BOLT

24 6564242

  • 6564242 - MOUNT

25 57D6

  • 57D6 - NUT HEX FLNG GR8

26 35C624

  • 35C624 - SCREW FLGD HEX CAP

27 6630170

  • 6630170 - KEY

28 6728036

  • 6728036 - SPACER
  • steering - Use W/Ref. 9 (6728012)
