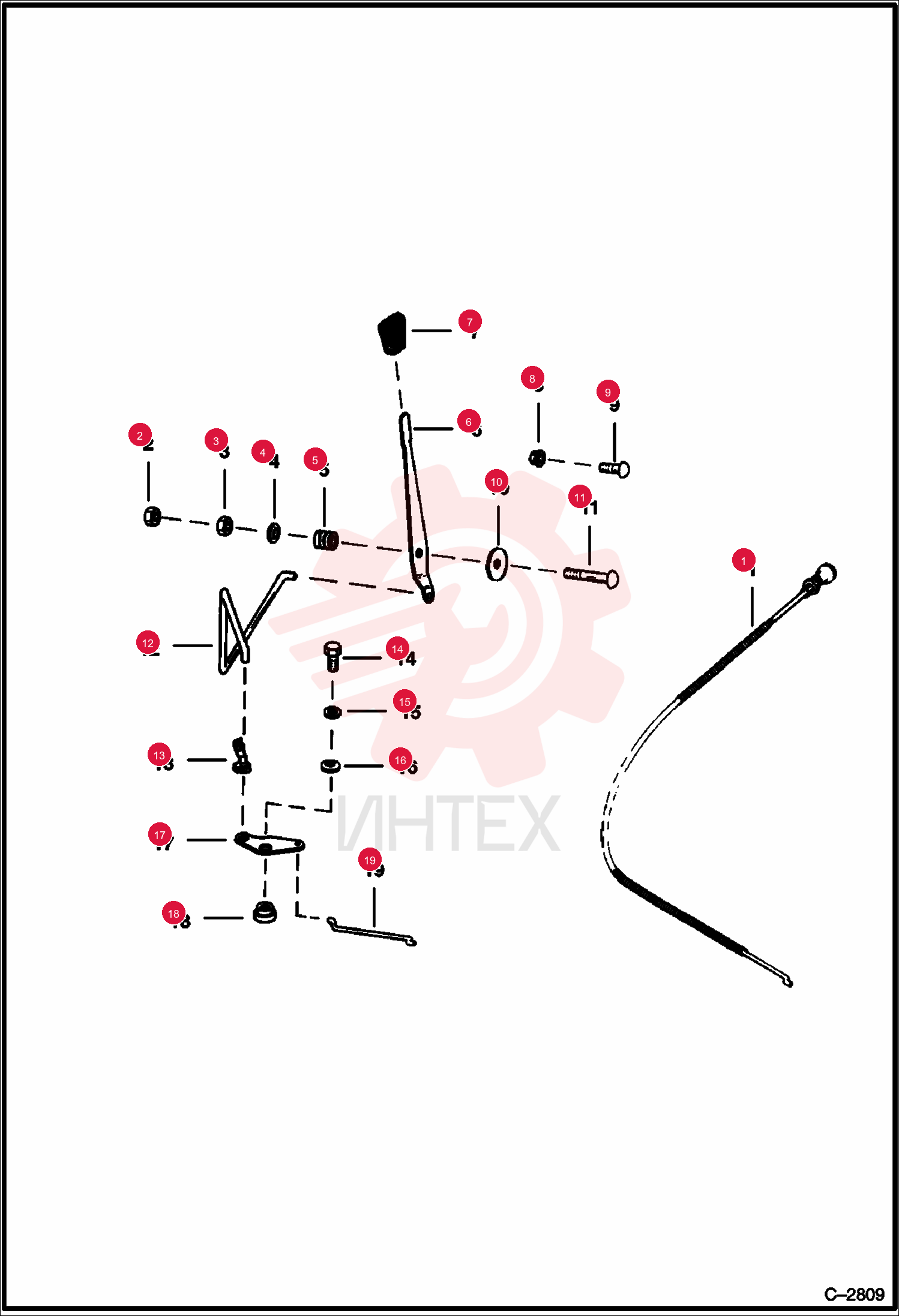

CABLE 6564462

CABLE 6564462

CABLE 6564462

1 6564462

  • 6564462 - CABLE
  • choke

2 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

3 61D6

  • 61D6 - NUT HEX FINISHED GR5

4 6505623

  • 6505623 - WASHER

5 6704453

  • 6704453 - SPRING COMPRESSION

6 6564275

  • 6564275 - LEVER

7 6564452

  • 6564452 - GRIP LEVER

8 57D5

  • 57D5 - NUT HEX FLNG GR8

9 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

10 6562127

  • 6562127 - WASHER

11 7C632

  • 7C632 - BOLT

12 6564783

  • 6564783 - ROD

13 17C412

  • 17C412 - BOLT 5

14 25E13

  • 25E13 - WASHER FLAT PLAIN

15 6512913

  • 6512913 - WASHER

16 6564274

  • 6564274 - BELLCRANK

17 6594255

  • 6594255 - BUSHING

18 6564267

  • 6564267 - ROD
