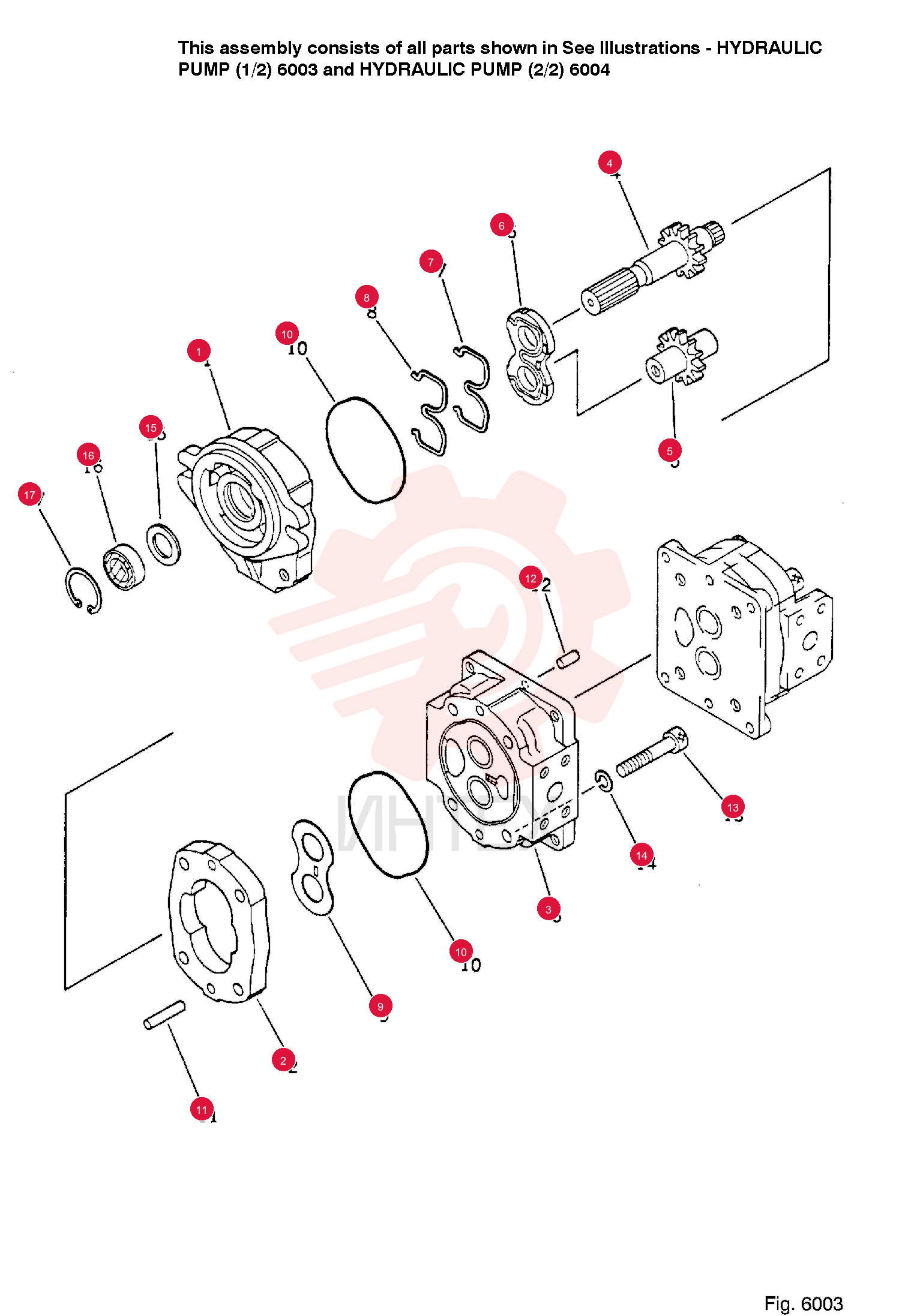

PUMP ASSEMBLY 6640330 (1)

PUMP ASSEMBLY 6640330 (1)

PUMP ASSEMBLY 6640330 (1)

1 6640330

  • 6640330 - PUMP ASSEMBLY

2 6640310

  • 6640310 - PUMP ASSEMBLY

3 6640312

  • 6640312 - BRACKET A

4 6645252

  • 6645252 - GEAR CASE

5 6640313

  • 6640313 - COVER

6 6646057

  • 6646057 - GEAR

7 6646059

  • 6646059 - GEAR

8 6640319

  • 6640319 - SHIELD

9 6640301

  • 6640301 - SEAL

10 6640317

  • 6640317 - RING

11 6640320

  • 6640320 - SHIELD

12 6640300

  • 6640300 - O-RING

13 6640321

  • 6640321 - PIN

14 6640315

  • 6640315 - PIN

15 6637055

  • 6637055 - BOLT

16 6637135

  • 6637135 - WASHER

17 6640303

  • 6640303 - SHIELD

18 6640293

  • 6640293 - SEAL
  • OIL

19 6637231

  • 6637231 - RING
  • SNAP
