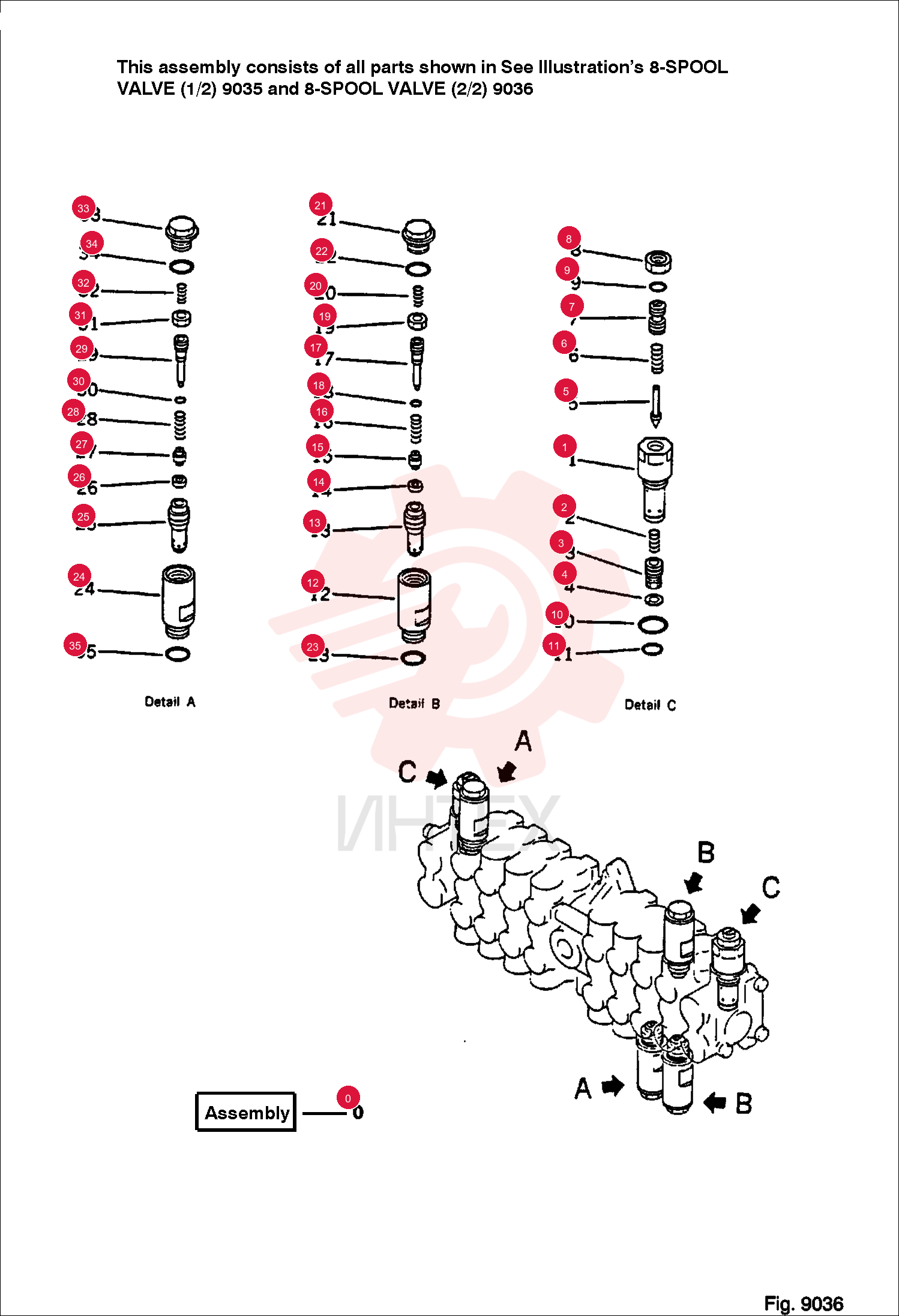

ASSY, VALVE 6642157 (1)

ASSY, VALVE 6642157 (1)

ASSY, VALVE 6642157 (1)

1 6642157

  • 6642157 - ASSY
  • VALVE

2 6640598

  • 6640598 - ASSY
  • VALVE

3 6640249

  • 6640249 - VALVE

4 6643192

  • 6643192 - SLEEVE

5 6640220

  • 6640220 - SPRING

6 6643193

  • 6643193 - VALVE

7 6640217

  • 6640217 - RING

8 6640258

  • 6640258 - POPPET

9 6640219

  • 6640219 - SPRING

10 6640218

  • 6640218 - SCREW

11 6637115

  • 6637115 - NUT

12 6637335

  • 6637335 - O-RING

13 6640243

  • 6640243 - O-RING

14 6637411

  • 6637411 - O-RING

15 6640560

  • 6640560 - VALVE

16 6643230

  • 6643230 - VALVE ASY

17 6640555

  • 6640555 - SLEEVE

18 6643224

  • 6643224 - VALVE

19 6640226

  • 6640226 - SEAL

20 6643225

  • 6643225 - POPPET

21 6643228

  • 6643228 - SPRING

22 6643226

  • 6643226 - SCREW

23 6642082

  • 6642082 - O-RING

24 6643194

  • 6643194 - NUT

25 6640221

  • 6640221 - SPRING

26 6640556

  • 6640556 - PLUG

27 6637417

  • 6637417 - O-RING

28 6637410

  • 6637410 - O-RING

29 6640555

  • 6640555 - SLEEVE

30 6640557

  • 6640557 - VALVE

31 6643224

  • 6643224 - VALVE

32 6640226

  • 6640226 - SEAL

33 6643225

  • 6643225 - POPPET

34 6643227

  • 6643227 - SPRING

35 6643226

  • 6643226 - SCREW

36 6642082

  • 6642082 - O-RING

37 6643194

  • 6643194 - NUT

38 6640221

  • 6640221 - SPRING

39 6640556

  • 6640556 - PLUG

40 6637417

  • 6637417 - O-RING

41 6637410

  • 6637410 - O-RING
