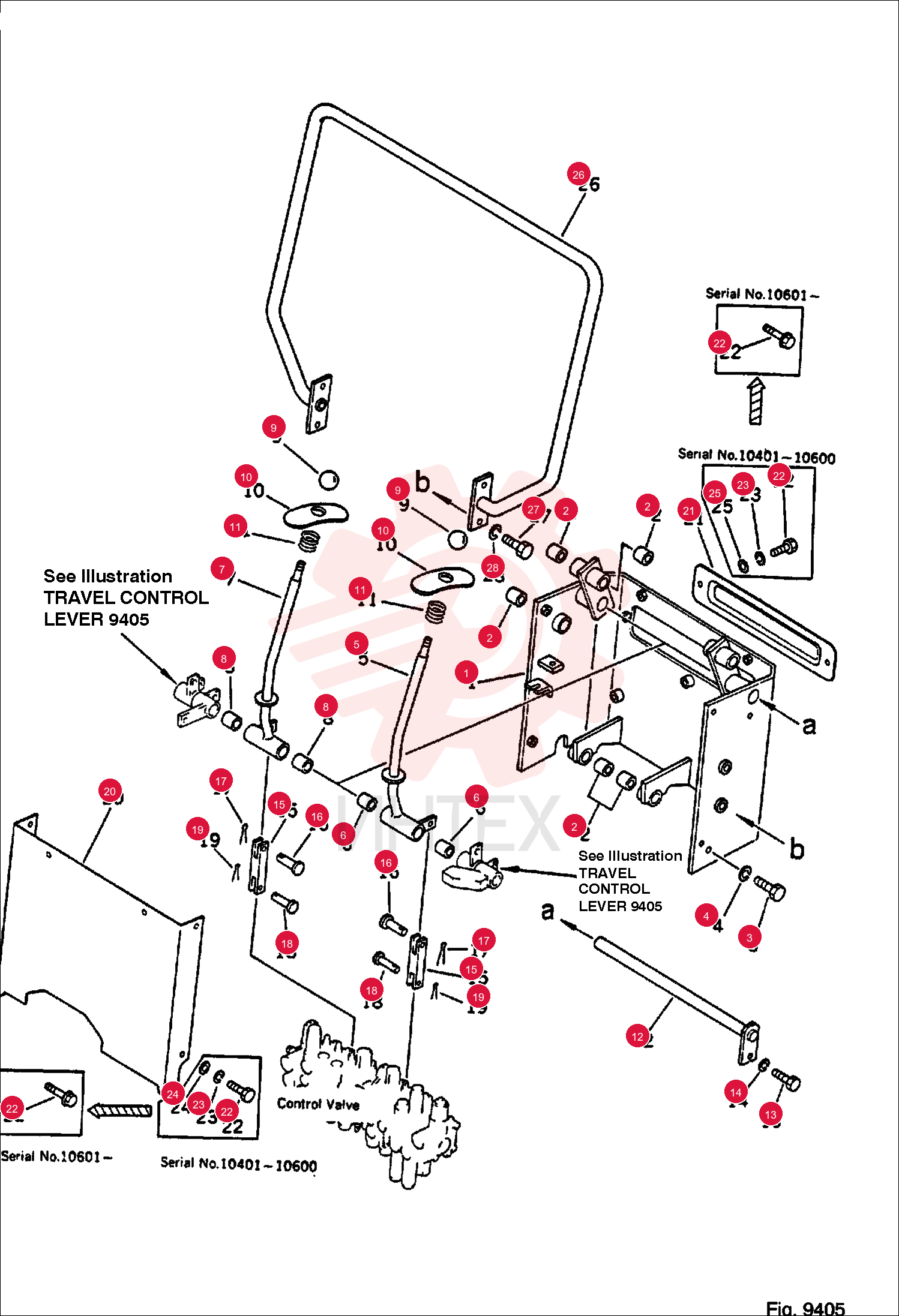

BRACKET ASSEMBLY 6642265 (1)

BRACKET ASSEMBLY 6642265 (1)

BRACKET ASSEMBLY 6642265 (1)

1 6642265

  • 6642265 - BRACKET ASSEMBLY

2 6642266

  • 6642266 - BRACKET ASSEMBLY

3 6638003

  • 6638003 - BRACKET

4 6637746

  • 6637746 - BUSHING

5 6636967

  • 6636967 - BOLT

6 6637135

  • 6637135 - WASHER

7 6642243

  • 6642243 - ASSY
  • LEVER

8 6637985

  • 6637985 - LEVER

9 6637746

  • 6637746 - BUSHING

10 6642244

  • 6642244 - ASSY
  • LEVER

11 6637986

  • 6637986 - LEVER

12 6637746

  • 6637746 - BUSHING

13 6638565

  • 6638565 - KNOB

14 6639438

  • 6639438 - COVER

15 6637744

  • 6637744 - SPRING

16 6637979

  • 6637979 - SHAFT

17 6636958

  • 6636958 - BOLT

18 6637134

  • 6637134 - WASHER

19 6637988

  • 6637988 - YOKE

20 6637254

  • 6637254 - PIN

21 6637197

  • 6637197 - PIN
  • COTTER

22 6637247

  • 6637247 - PIN

23 6637197

  • 6637197 - PIN
  • COTTER

24 6638160

  • 6638160 - COVER

25 6642481

  • 6642481 - COVER

26 6636958

  • 6636958 - BOLT

27 6637066

  • 6637066 - BOLT

28 6637134

  • 6637134 - WASHER

29 6637156

  • 6637156 - WASHER

30 6640821

  • 6640821 - WASHER

31 6642252

  • 6642252 - STAY

32 6637989

  • 6637989 - STAY

33 6642267

  • 6642267 - STAY

34 6642268

  • 6642268 - LEVER

35 6636966

  • 6636966 - BOLT

36 6637135

  • 6637135 - WASHER
