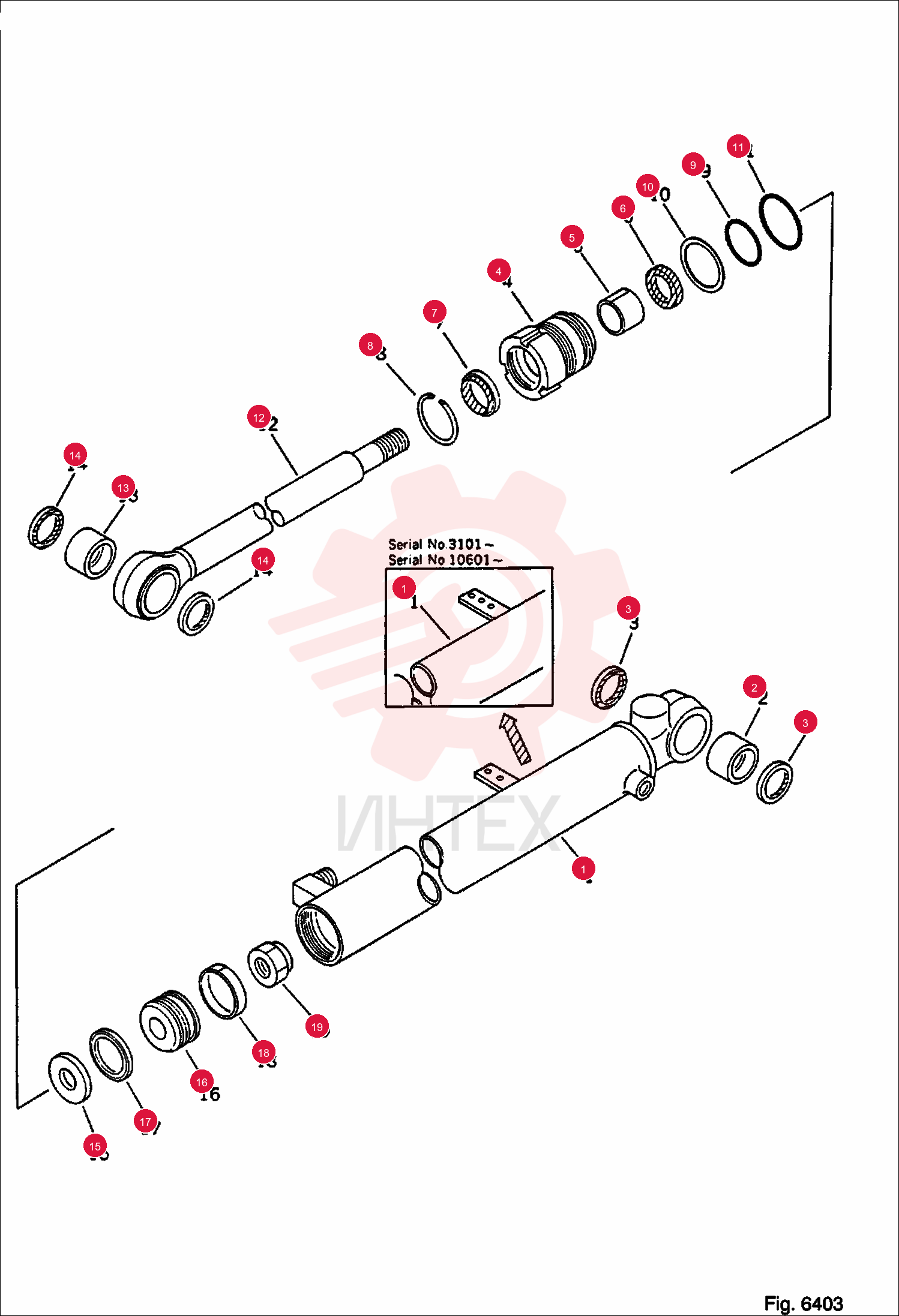

CYL CASE 6640385

CYL CASE 6640385

CYL CASE 6640385

1 6640385

  • 6640385 - CYL CASE

2 6643204

  • 6643204 - CYLINDER

3 6640380

  • 6640380 - CYLINDER

4 6637519

  • 6637519 - BUSHING

5 6637531

  • 6637531 - SEAL
  • DUST

6 6640392

  • 6640392 - CYL HEAD

7 6637561

  • 6637561 - BUSHING

8 6640430

  • 6640430 - PACKING

9 6637569

  • 6637569 - RING
  • SNAP

10 6637388

  • 6637388 - O-RING

11 6640405

  • 6640405 - RING

12 6637361

  • 6637361 - O-RING

13 6640443

  • 6640443 - ROD

14 6637519

  • 6637519 - BUSHING

15 6637531

  • 6637531 - SEAL
  • DUST

16 6640419

  • 6640419 - RETAINER

17 6640408

  • 6640408 - PISTON

18 6637549

  • 6637549 - RING
  • PISTON

19 6637817

  • 6637817 - RING
  • WEAR

20 6637552

  • 6637552 - NUT
