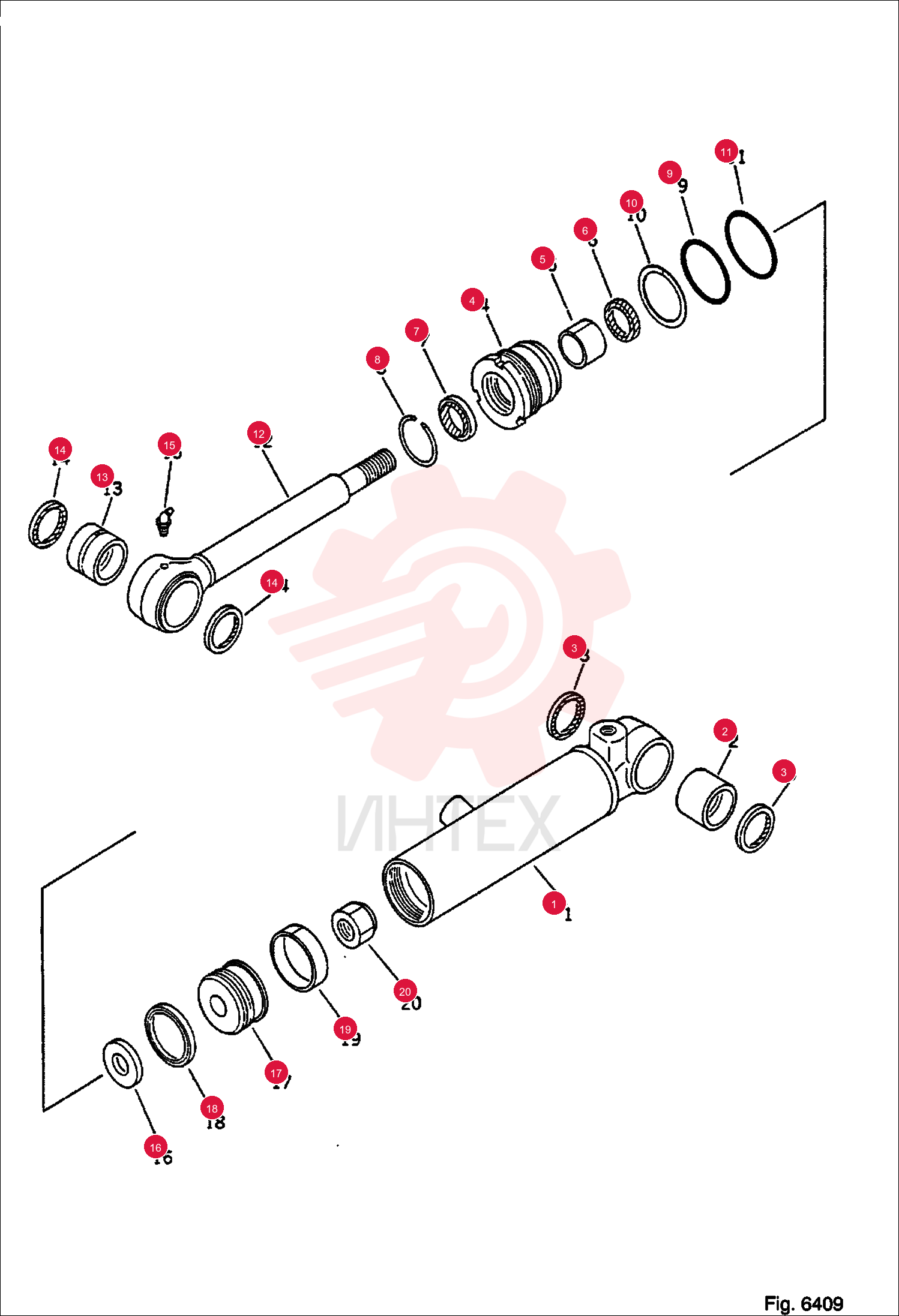

CYLINDER 6640383

CYLINDER 6640383

CYLINDER 6640383

1 6640383

  • 6640383 - CYLINDER

2 6640388

  • 6640388 - CYL CASE

3 6637521

  • 6637521 - BUSHING

4 6637532

  • 6637532 - SEAL
  • DUST

5 6640394

  • 6640394 - CYL HEAD

6 6637561

  • 6637561 - BUSHING

7 6640430

  • 6640430 - PACKING

8 6640438

  • 6640438 - 6648849

9 6637569

  • 6637569 - RING
  • SNAP

10 6637375

  • 6637375 - O-RING

11 6637399

  • 6637399 - RING
  • BACK-UP

12 6637344

  • 6637344 - O-RING

13 6640441

  • 6640441 - ROD

14 6637526

  • 6637526 - BUSHING

15 6637532

  • 6637532 - SEAL
  • DUST

16 6637431

  • 6637431 - FITTING

17 6640419

  • 6640419 - RETAINER

18 6640409

  • 6640409 - PISTON

19 6637550

  • 6637550 - RING
  • PISTON

20 6637543

  • 6637543 - RING
  • WEAR

21 6637552

  • 6637552 - NUT
