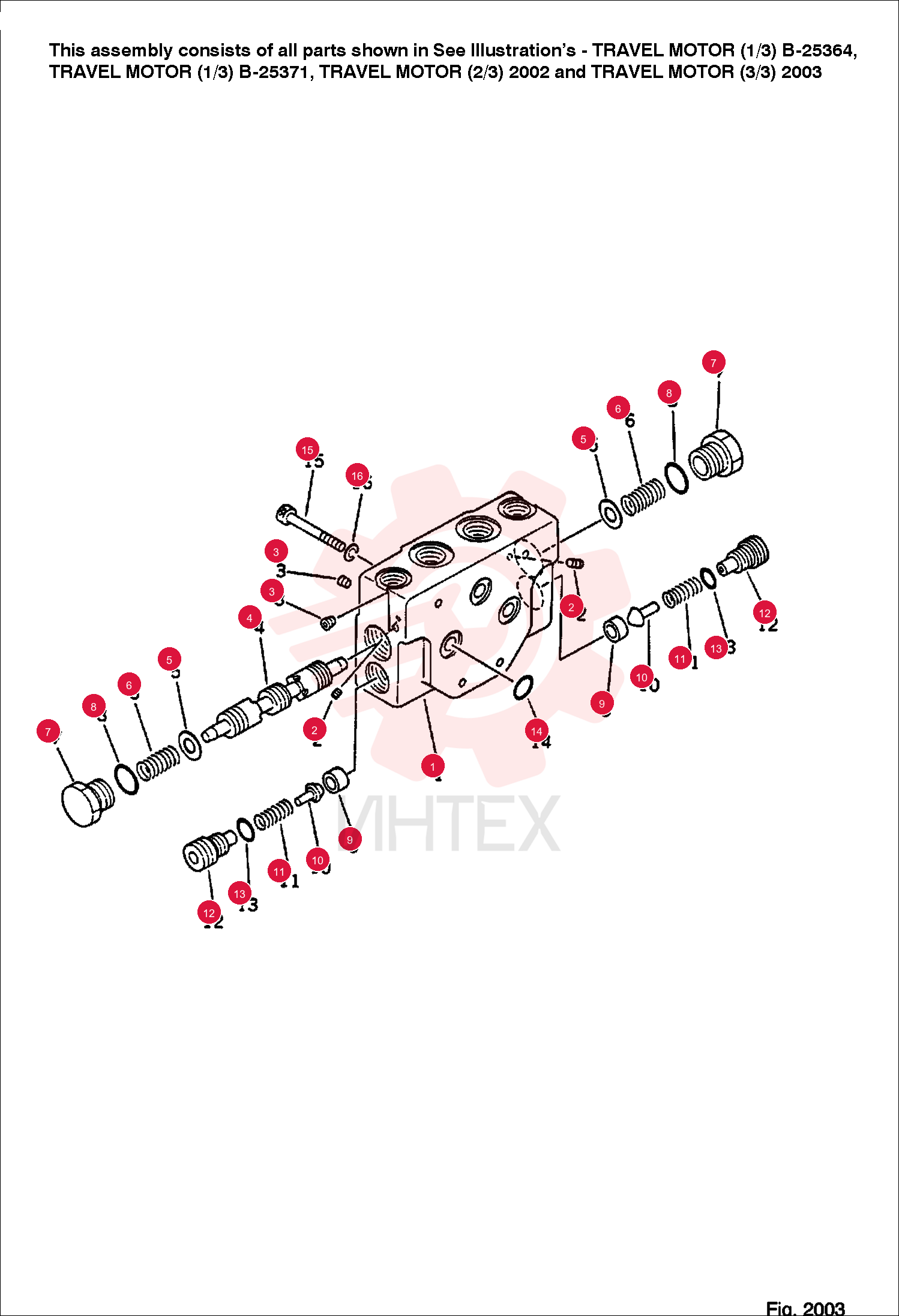

BODY 6642627

BODY 6642627

BODY 6642627

1 6642627

  • 6642627 - BODY

2 6638380

  • 6638380 - VALVE ASY

3 6638027

  • 6638027 - MOTOR

4 6638366

  • 6638366 - CHOKE

5 6638367

  • 6638367 - PLUG

6 6642628

  • 6642628 - SPOOL

7 6638382

  • 6638382 - RING

8 6638361

  • 6638361 - SPRING

9 6638359

  • 6638359 - PLUG

10 6637372

  • 6637372 - O-RING

11 6638365

  • 6638365 - SEAT

12 6638360

  • 6638360 - POPPET

13 6638363

  • 6638363 - SPRING

14 6638364

  • 6638364 - PLUG

15 6637369

  • 6637369 - O-RING

16 6637371

  • 6637371 - O-RING

17 6637060

  • 6637060 - BOLT

18 6637133

  • 6637133 - WASHER
