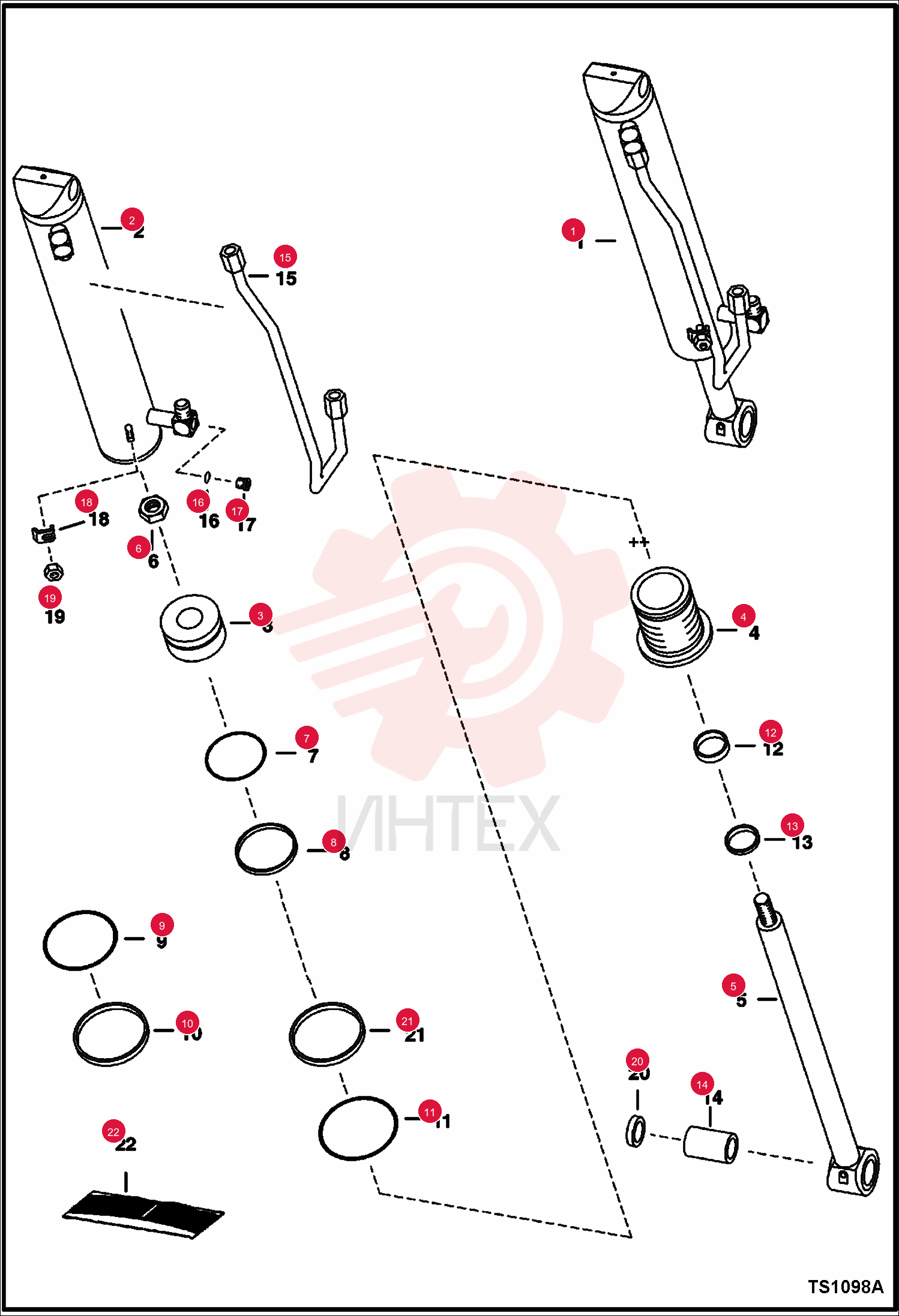

CYLINDER, TILT 6804630 (2)
1 6804630
- 6804630 - CYLINDER
- TILT
- Ref. 2-19
2 6804633
- 6804633 - CASE
- 89 mm (3.5") ID
3 6804632
- 6804632 - PISTON
- 28
- 6 mm (1.125") ID
4 6539934
- 6539934 - HEAD
- CYL TILT
5 6804631
- 6804631 - SHAFT
- ROD CYL TILT
- 38 mm (1.5") OD - W/Ref. 14 - W/grease fitting hole
6 6810539
- 6810539 - NUT
- Was 6804592
7 25K30300
- 25K30300 - O RING 10
- Was 54K30300
8 1530265
- 1530265 - SEAL
- PISTON
- piston
9 54K60304
- 54K60304 - O-RING
- Was 58K338
10 73K338
- 73K338 - RING
11 82K238
- 82K238 - O-RING 10
- Was 58K000238B
12 6667326
- 6667326 - SEAL
13 6690707
- 6690707 - WIPER
- ROD CYL
- Was 6665086
14 6805150
- 6805150 - BUSHING
- PRESS FIT
- wear - W/grease fitting hole
15 6586586
- 6586586 - TUBELINE
- HYD
16 95K6
- 95K6 - O'RING
- tapered boss face
17 75K6
- 75K6 - O-RING
- flat boss face
18 75K7
- 75K7 - O-RING
- flat boss face
19 90K5
- 90K5 - PLUG
- W/Ref. 16 (75K6 O-Ring) - flat boss face - allen socket head
20 6812171
- 6812171 - PLUG
- W/Ref. 16 (75K6 O-ring) - flat boss face - hex head - .5625" threads
21 6816855
- 6816855 - PLUG
- W/Ref. 16 (75K7 O-Ring) flat boss face - hex head - .625" threads
22 6562266
- 6562266 - CLAMP TUBE
23 95D6
- 95D6 - NUT HEXAGON
- Was 91D000006B
24 6654117
- 6654117 - SEAL
- OIL
- 51 mm (2") OD
25 225855
- 225855 - SEAL
- OIL 10
- 38 mm (1.5") OD
26 7196894
- 7196894 - KIT
- SEAL
- Ref. 6-13 - Was 7135555
