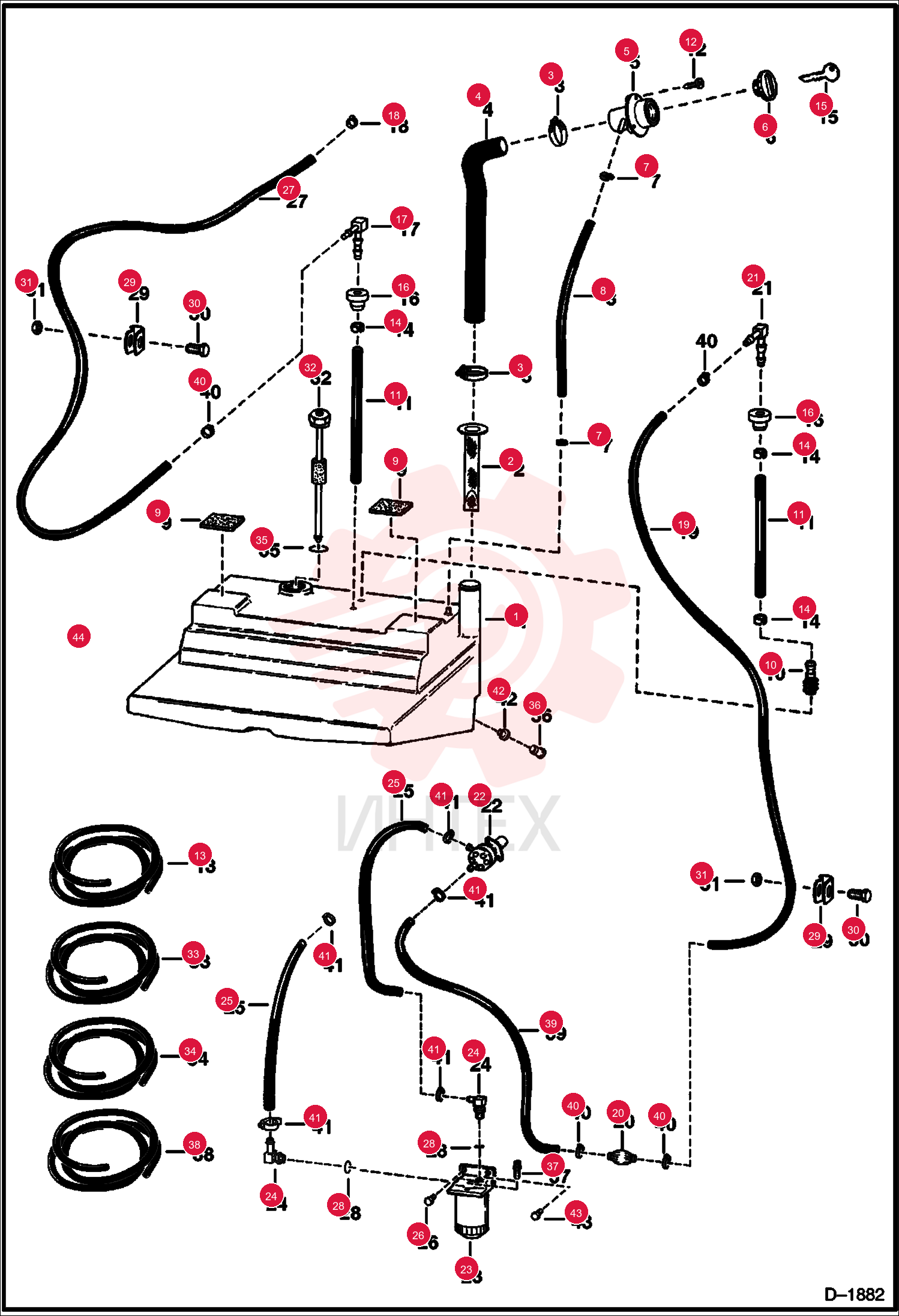

TANK, FUEL 6736659 (5)
1 6736659
- 6736659 - TANK
- FUEL
- Was 6717572
2 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
3 5HM58
- 5HM58 - CLAMP
- constant tension
4 42H32
- 42H32 - HS CLAMP5
- worm gear
5 6710653
- 6710653 - HOSE FUEL FILL
6 6701449
- 6701449 - FLR.TUBE
7 6661114
- 6661114 - CAP
- DIESEL 1 PSI
- green
8 6661696
- 6661696 - CAP
- FUEL LOCKING
- locking - W/Ref. 15 Code PK510
9 42H10
- 42H10 - HOSECLAM5
- worm gear
10 5HM24
- 5HM24 - CLAMP
- constant tension
11 6578278
- 6578278 - BUMP.PAD
- self adhesive one side
12 6650239
- 6650239 - SCREEN
- FUEL PICKUP
- spring coiled - Use W/ fuel pickup line
13 6729853
- 6729853 - HOSE
- 10.25" (260
- 4 mm) long
14 6706517
- 6706517 - SCREW 10
15 6578172
- 6578172 - HOSE BULK
- sold per foot
16 6661213
- 6661213 - RING
- COMPRESSION
17 6654374
- 6654374 - 2 KEYS
- Code GC020
18 6587458
- 6587458 - KEY CAP FUEL 2
- Code PK510
19 6553411
- 6553411 - BUSHING
- PRESS FIT 5
- 0.38" ID
20 7101291
- 7101291 - ELBOW
- Was 6681462
21 42HS04
- 42HS04 - CLAMP HOSE TYPE M
- Was 6515575
22 6657734
- 6657734 - PUMP
- PRIMER HAND
- barbed fittings for 6
- 35 mm (.25") ID hose - barbed fittings for 6
- 35 mm (.25") ID hose
23 7101291
- 7101291 - ELBOW
- barbed on both ends - Was 6661382
24 6655216
- 6655216 - ТОПЛИВОПОДКАЧИВАЮЩИЙ НАСОС
25 FP60000
- FP60000 - ТОПЛИВОПОДКАЧИВАЮЩИЙ НАСОС
- AUTOWELT
26 1712152030
- 1712152030 - ТОПЛИВОПОДКАЧИВАЮЩИЙ НАСОС
- KUBOTA
27 1712152032
- 1712152032 - ТОПЛИВОПОДКАЧИВАЮЩИЙ НАСОС
- KUBOTA
28 6667353
- 6667353 - FILTER
- FUEL ASSY
- W/Ref. 37
29 6667352
- 6667352 - FILTER
- FUEL W/SEPARATOR 12
30 72F1
- 72F1 - FITTING
31 6715183
- 6715183 - ELBOW 90 STRTHD TUBE
- W/Ref. 28 - check boss face to determine correct replacement O-ring
32 17C512
- 17C512 - BOLT 5
33 17C516
- 17C516 - BOLT
- USED WHEN Ref. 35 HAS THREADED THRU HOLES
34 84G3112
- 84G3112 - SCREW THD ROLLING TT
- 5/16 x .75"
35 99K5
- 99K5 - O-RING
- tapered boss face
36 79K5
- 79K5 - O RING 10
- flat boss face
37 30H35
- 30H35 - CLIP INSULATED
38 17C612
- 17C612 - SCREW HEX CAP
39 61D6
- 61D6 - NUT HEX FINISHED GR5
40 7286464
- 7286464 - SENSOR
- FUEL
- - Was 7179839
41 6577821
- 6577821 - HOSE
- BULK
- sold per foot
42 6577822
- 6577822 - HOSE BULK
- sold per foot
43 6717579
- 6717579 - GASKET
44 7203382
- 7203382 - PLUG
- STEEL
- fuel drain - .75" shoulder - Was 6717401
45 6599645
- 6599645 - PLUG
- STEEL
- fuel drain - .5" O.D.
46 6658180
- 6658180 - PLUG
- BLEED
47 6578169
- 6578169 - HOSE BULK
- sold per foot - 0.19" ID
48 5HM13
- 5HM13 - CLAMP CT HOSE
49 5HM14
- 5HM14 - HOSE CLMP CONST TENS
50 6717402
- 6717402 - BUSHING
- 0.54" ID
51 84G3116
- 84G3116 - SCREW
- 5/16 x 1"
52 7297009
- 7297009 - KIT FUEL SCREEN PICKUP TUBE
- W/Ref. 10
- 14
- 16 & (1) PN 6569752
