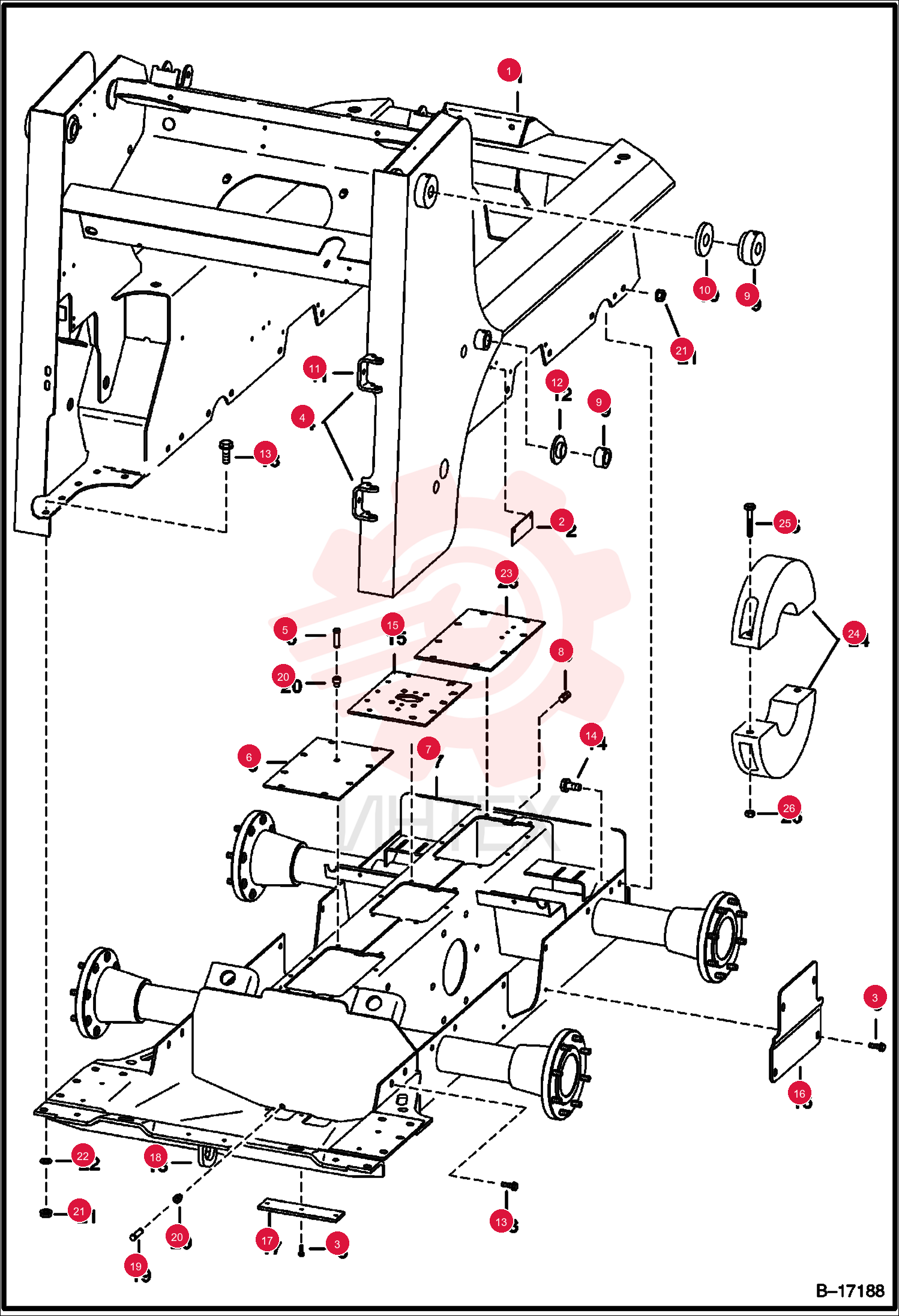

MAINFRAME 6737360 (1)
1 6737360
- 6737360 - MAINFRAME
2 6727837
- 6727837 - COVER
3 84G3712
- 84G3712 - SCREW THD ROLLING TT
4 6708987
- 6708987 - HINGE
- WELD-ON
- for 2-piece rear door
5 6708987
- 6708987 - HINGE
- WELD-ON
- for 1-piece rear door
6 6680970
- 6680970 - VENT BREATHER
- Was 6670627
7 6700330
- 6700330 - COVER
8 6731121
- 6731121 - PLUG RECESSED PIPE
- chaincase fill - Was 11F12
9 6702584
- 6702584 - BUSHING
- WELD-ON
- weld on
10 6702583
- 6702583 - BUSHING
- WELD-ON
11 6577394
- 6577394 - HINGE
- hinge - weld on - for two piece rear door
12 6555987
- 6555987 - BUSHING
- weld on
13 31C824
- 31C824 - BOLT 10
14 31C820
- 31C820 - BOLT
15 31C820
- 31C820 - BOLT
16 6706042
- 6706042 - COVER
17 6733701
- 6733701 - COVER
- Was 6704695
18 6700182
- 6700182 - COVER
- DRAIN
19 6706485
- 6706485 - BRACKET
- tie down - weld-on
20 6599645
- 6599645 - PLUG
- STEEL
- chaincase drain
21 6553411
- 6553411 - BUSHING
- PRESS FIT 5
22 83D8
- 83D8 - LKNUT HEX FLG GR8
23 83D8
- 83D8 - LKNUT HEX FLG GR8
24 6701097
- 6701097 - WASHER
25 6578505
- 6578505 - COVER
26 6714361
- 6714361 - COUNTERWEIGHT
- AXLE
- front - 71
- 6 kg (38.7 lb) - 114
- 3 mm (4.5") wide
27 17C640
- 17C640 - BOLT
28 61D6
- 61D6 - NUT HEX FINISHED GR5
