843.0
/

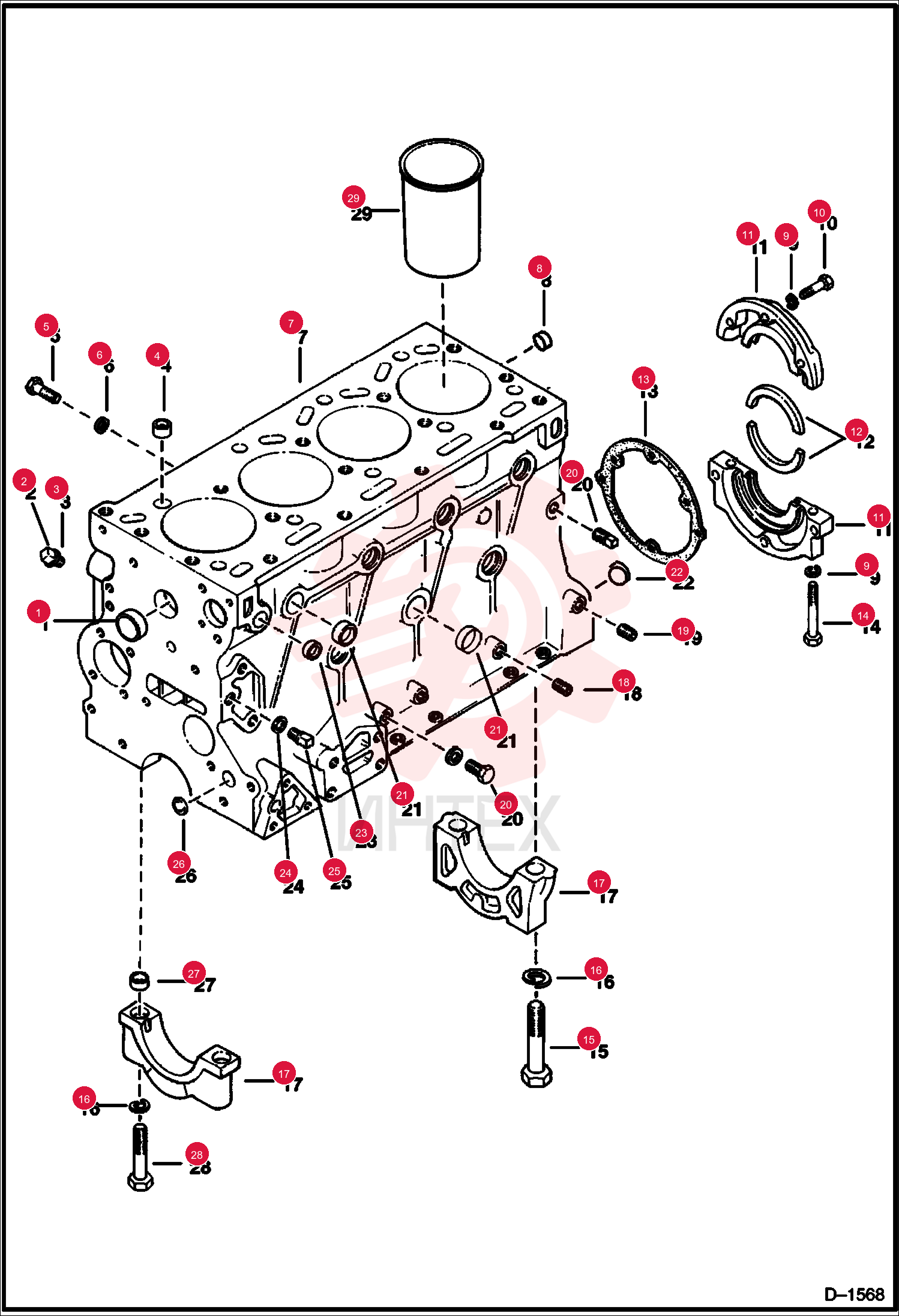

PLUG 998061

PLUG 998061

PLUG 998061

1 998061

  • 998061 - PLUG

2 18C508

  • 18C508 - BOLT

3 3490221

  • 3490221 - WASHER

4 998062

  • 998062 - PLUG
  • water

5 3490721

  • 3490721 - WASHER

6 4E5

  • 4E5 - WASHER

7 18C520

  • 18C520 - BOLT

8 998042

  • 998042 - HSG

9 6510580

  • 6510580 - SEAL 2

10 18C540

  • 18C540 - BOLT

11 6645245

  • 6645245 - WASHER

12 16F2

  • 16F2 - PLUG
  • Was 998050B

13 41K4

  • 41K4 - PLUG

14 16F4

  • 16F4 - PLUG

15 6641352

  • 6641352 - PLUG
  • Was 998048B

16 3490721

  • 3490721 - WASHER

17 3493490

  • 3493490 - PLUG

18 998047

  • 998047 - PLUG

19 998029

  • 998029 - SLEEVE
