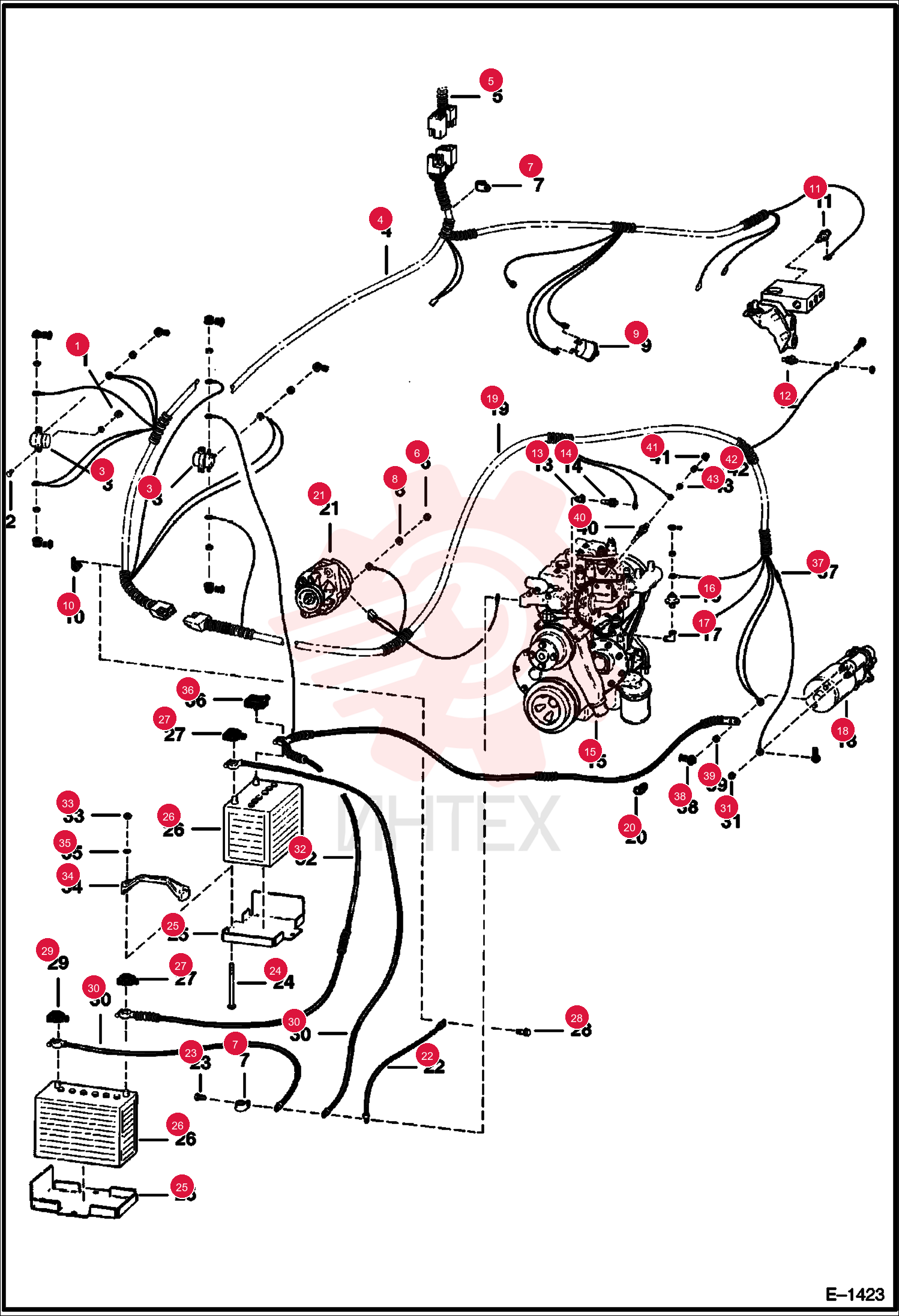

843.0
/
NUT 5 61D4 (1)

NUT 5 61D4 (1)

NUT 5 61D4 (1)

1 61D4

  • 61D4 - NUT 5

2 17C408

  • 17C408 - BOLT

3 7C412

  • 7C412 - SCREW 15
  • carriage

4 6659319

  • 6659319 - SOLENOID
  • STARTER MAGNETIC
  • Was 6632186

5 6567432

  • 6567432 - HARNESS
  • chassis

6 1DM6

  • 1DM6 - NUT
  • Was 4DM6

7 30H46

  • 30H46 - CLIP

8 6E4

  • 6E4 - WASHER 10

9 6564875

  • 6564875 - SWITCH
  • hydro. pressure

10 6671062

  • 6671062 - SWITCH
  • PRESS OIL HYD
  • hydro. pressure - Was 6664577

11 30H55

  • 30H55 - CLIP

12 6564560

  • 6564560 - SWITCH
  • hydro. temp.

13 6564767

  • 6564767 - ADAPTOR

14 6658818

  • 6658818 - SENDER TEMP
  • eng temp - threaded connector

15 6564576

  • 6564576 - ENGINE

16 6631010

  • 6631010 - SWITCH
  • PRESS OIL ENG
  • pressure - Engine Oil

17 1309105

  • 1309105 - ELBOW

18 6567087

  • 6567087 - HARNESS
  • engine

19 30H45

  • 30H45 - CLIP

20 6563025

  • 6563025 - CABLE

21 84G3712

  • 84G3712 - SCREW THD ROLLING TT

22 6558826

  • 6558826 - MOUNT
  • battery

23 6665917

  • 6665917 - BATTERY
  • Was 6633910

24 6630154

  • 6630154 - CAP
  • Danger

25 6630155

  • 6630155 - CAP
  • Poison

26 6514898

  • 6514898 - 6 CAPS
  • tilt-tite

27 6599652

  • 6599652 - BOOT

28 18C616

  • 18C616 - BOLT 5

29 2356058

  • 2356058 - BOOT

30 6564716

  • 6564716 - CABLE
  • negative - W/Ref. 27

31 4DM5

  • 4DM5 - NUT HEXAGON M5

32 6565059

  • 6565059 - CABLE
  • POSITIVE
  • positive - W/Ref. 29 & 36

33 59D5

  • 59D5 - NUT LOCK HEX PT

34 6569203

  • 6569203 - CLAMP BATTERY
  • battery

35 25E15

  • 25E15 - WASHER FLAT PLAIN

36 6598956

  • 6598956 - BOOT

37 3675725

  • 3675725 - DIODE

38 6560172

  • 6560172 - COVER

39 4DM10

  • 4DM10 - NUT HEX

40 6599285

  • 6599285 - GLOW PLUG

41 6660927

  • 6660927 - TERM NUT
