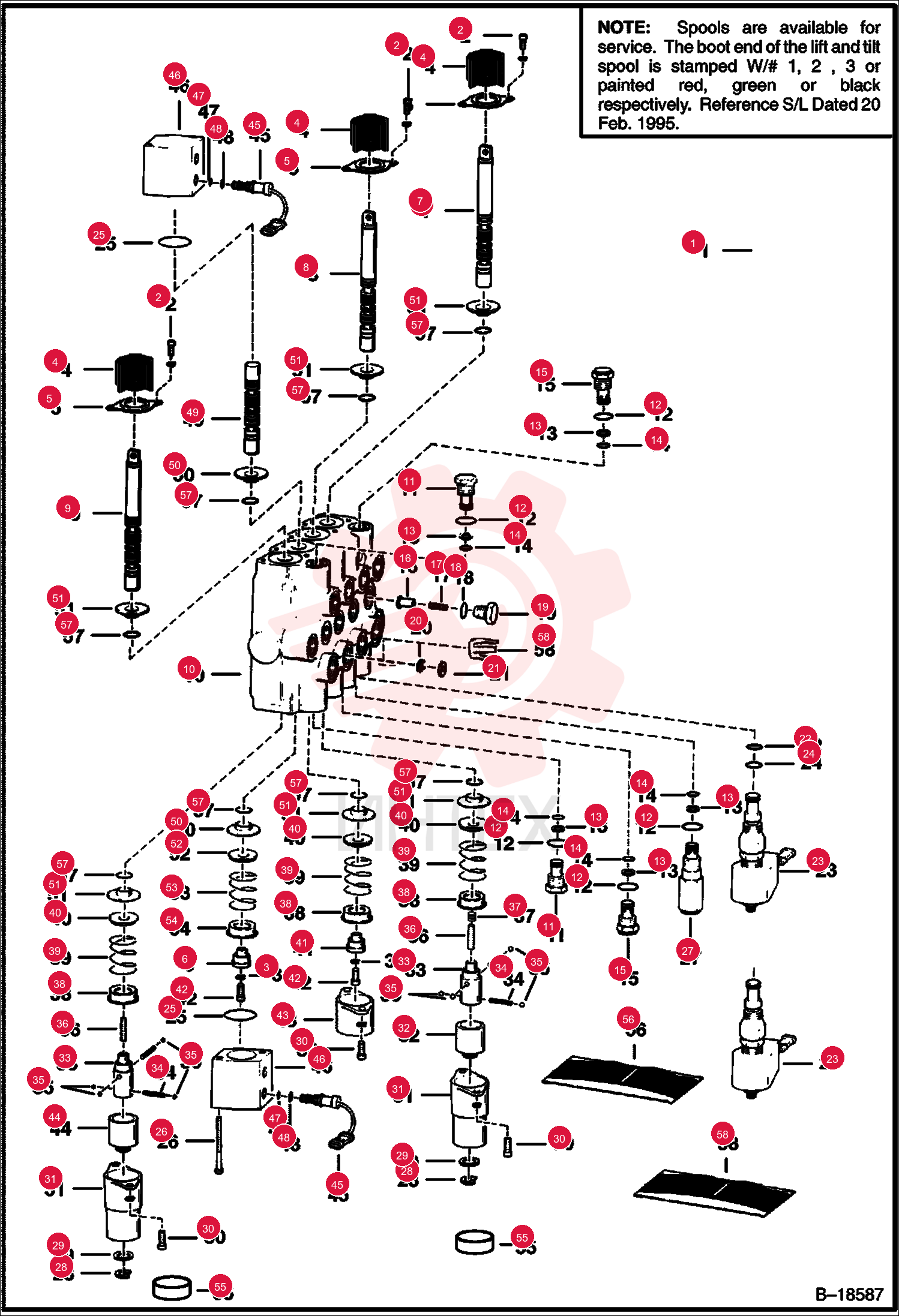

SCREW 73G410 (1)
1 73G410
- 73G410 - SCREW
2 22E4
- 22E4 - WASHER
3 6583727
- 6583727 - BOOT
4 6592123
- 6592123 - RETAINER
5 6593358
- 6593358 - ADAPTER
6 6666582
- 6666582 - SPOOL BOM
- lift - #1 or red - SEE NOTE
7 6666583
- 6666583 - SPOOL BOM
- lift - #2 or green - SEE NOTE
8 6666584
- 6666584 - SPOOL BOM
- lift - #3 or black - SEE NOTE
9 6666586
- 6666586 - SPOOL
- TILT
- tilt - #2 or green - SEE NOTE
10 6666587
- 6666587 - SPOOL
- TILT
- tilt - #3 or black - SEE NOTE
11 6666585
- 6666585 - SPOOL
- TILT
- tilt - #1 or red - SEE NOTE
12 6592119
- 6592119 - SPOOL
- auxiliary - SEE NOTE
13 6592720
- 6592720 - PLUG
- W/Ref. 12-14
14 79K10
- 79K10 - O RING 10
15 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
16 58K014
- 58K014 - O-RING 10
- back-up washer required - Was 25K20016
17 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity - W/Ref. 12-14 - Was 6661345
18 6592115
- 6592115 - SEAT
19 6592117
- 6592117 - SPRING
- LOAD CHECK
20 79K8
- 79K8 - O RING 10
21 6592116
- 6592116 - NUT
- load check
22 6592111
- 6592111 - ORIFICE
- .161/.154
23 6593680
- 6593680 - RETAINER
24 6650101
- 6650101 - O-RING
25 6650690
- 6650690 - VALVE
- RELIEF
26 6650102
- 6650102 - O-RING
27 1K127
- 1K127 - O-RING 10
- Was 93K127
28 17C444
- 17C444 - BOLT
29 6599161
- 6599161 - VALVE
- RELIEF
- relief - W/Ref. 12-14
30 799119
- 799119 - RING
31 6592098
- 6592098 - WASHER
32 6588163
- 6588163 - SCREW
- Was 69G000412B
33 6592094
- 6592094 - BONNET
34 6592096
- 6592096 - SLEEVE
- lift
35 6592099
- 6592099 - ADAPTER
36 6592107
- 6592107 - SPRING
- DETENT 5
37 6592105
- 6592105 - BALL 5
38 6632374
- 6632374 - SCREW
39 6596807
- 6596807 - PLUG
- plastic - 0.46" long
40 54K20002
- 54K20002 - O'RING 10
41 6592100
- 6592100 - COLLAR
42 6592106
- 6592106 - SPRING
43 6592101
- 6592101 - WASHER
44 6592109
- 6592109 - ADAPTER
45 74G416
- 74G416 - SCREW
46 6592097
- 6592097 - BONNET
47 6593349
- 6593349 - SLEEVE
48 6649018
- 6649018 - VALVE PULSAR
- Pulsar
49 6531083
- 6531083 - BLOCK
50 25K20010
- 25K20010 - O RING 10
51 79K6
- 79K6 - O RING 10
52 6532704
- 6532704 - SPOOL SHT
53 6593359
- 6593359 - BUSHING
54 6592103
- 6592103 - BUSHING
55 6593364
- 6593364 - WASHER
56 6593366
- 6593366 - SPRING
57 6593365
- 6593365 - COLLAR
58 6631704
- 6631704 - CAP
59 6816716
- 6816716 - SEAL KIT
- - complete valve - Was 6586465
60 6659554
- 6659554 - SEAL
- lip
61 6646372
- 6646372 - SEAL
- QUAD RING
- quad ring seal
62 6816250
- 6816250 - KIT
- SEAL
- - Ref. 4
- 30 & 57 - For One Spool - Was 6596310
