Главная
/
Бренды
/
Bobcat
/
843.0
/

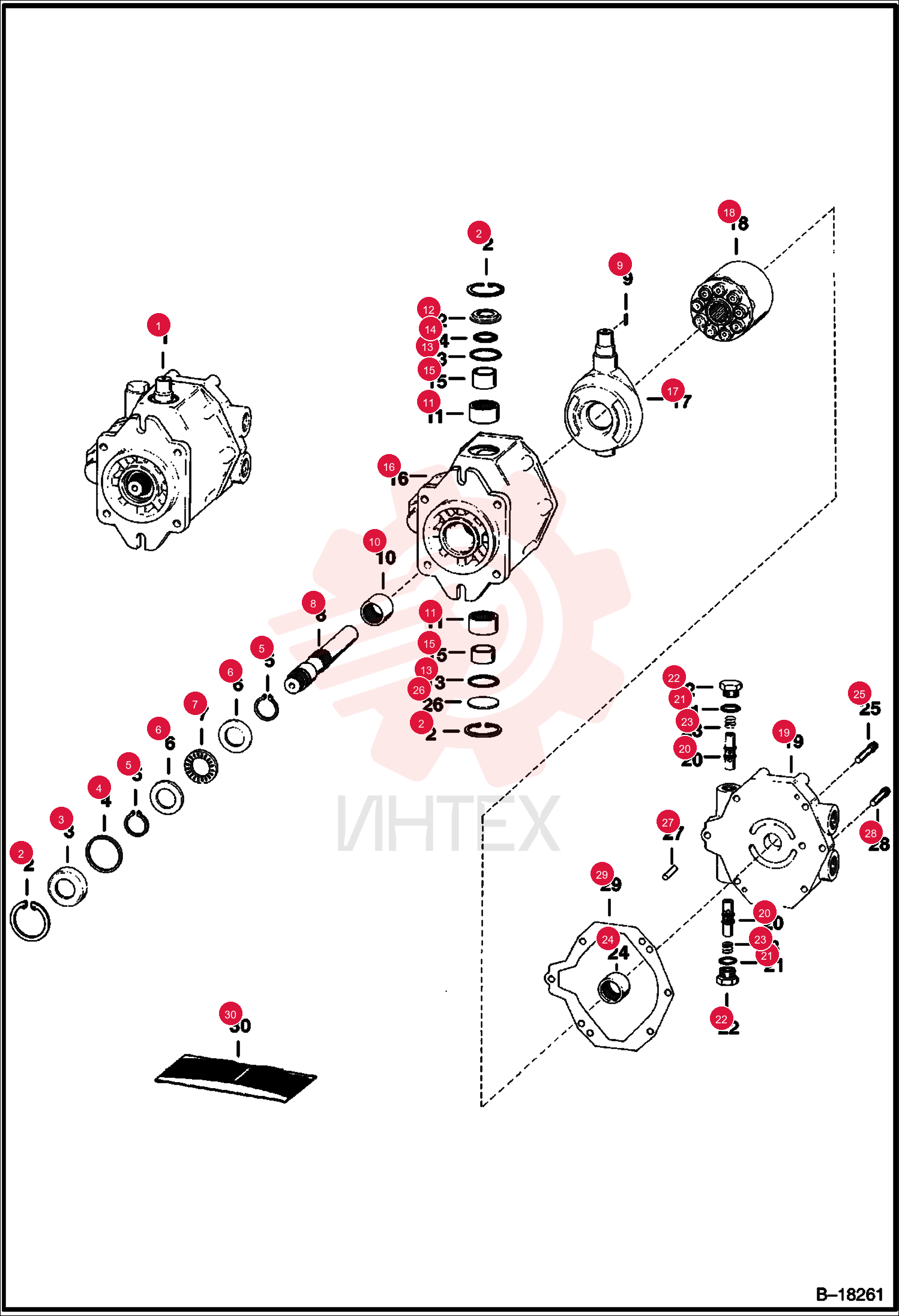

SNAP RING 952149 (2)

SNAP RING 952149 (2)

SNAP RING 952149 (2)

1 952149

  • 952149 - SNAP RING
  • retaining

2 6513981

  • 6513981 - SPACER

3 6513982

  • 6513982 - WASHER

4 658128

  • 658128 - RING
  • SNAP
  • retaining

5 6513983

  • 6513983 - RACE
  • thrust

6 6513984

  • 6513984 - BEARING
  • thrust

7 6631912

  • 6631912 - SHAFT

8 6513986

  • 6513986 - KEY

9 6513987

  • 6513987 - BEARING

10 6513988

  • 6513988 - COVER
  • seal

11 58K225

  • 58K225 - O RING 10

12 6514011

  • 6514011 - SEAL

13 6513990

  • 6513990 - RACE

14 6513991

  • 6513991 - HOUSING
  • W/Ref. 10

15 6653330

  • 6653330 - HOUSING
  • W/Ref. 10 - For 6652047 pump

16 6513993

  • 6513993 - YOKE

17 6513994

  • 6513994 - GROUP
  • ROTATING

18 6513995

  • 6513995 - COVER
  • W/Ref. 24 - For 6631910 pump

19 6513978

  • 6513978 - VALVE
  • RELIEF

20 58K118

  • 58K118 - O RING 10

21 6513998

  • 6513998 - PLUG

22 6514010

  • 6514010 - SPRING

23 6514009

  • 6514009 - BEARING

24 93G736

  • 93G736 - SCREW

25 6513996

  • 6513996 - COVER

26 886203

  • 886203 - PIN ROLL

27 93G728

  • 93G728 - BOLT

28 6631911

  • 6631911 - GASKET

29 6658179

  • 6658179 - SEAL KIT
  • Ref. 2
  • 5
  • 13
  • 14
  • 21
  • 29
