Bobcat
/
843.0
/

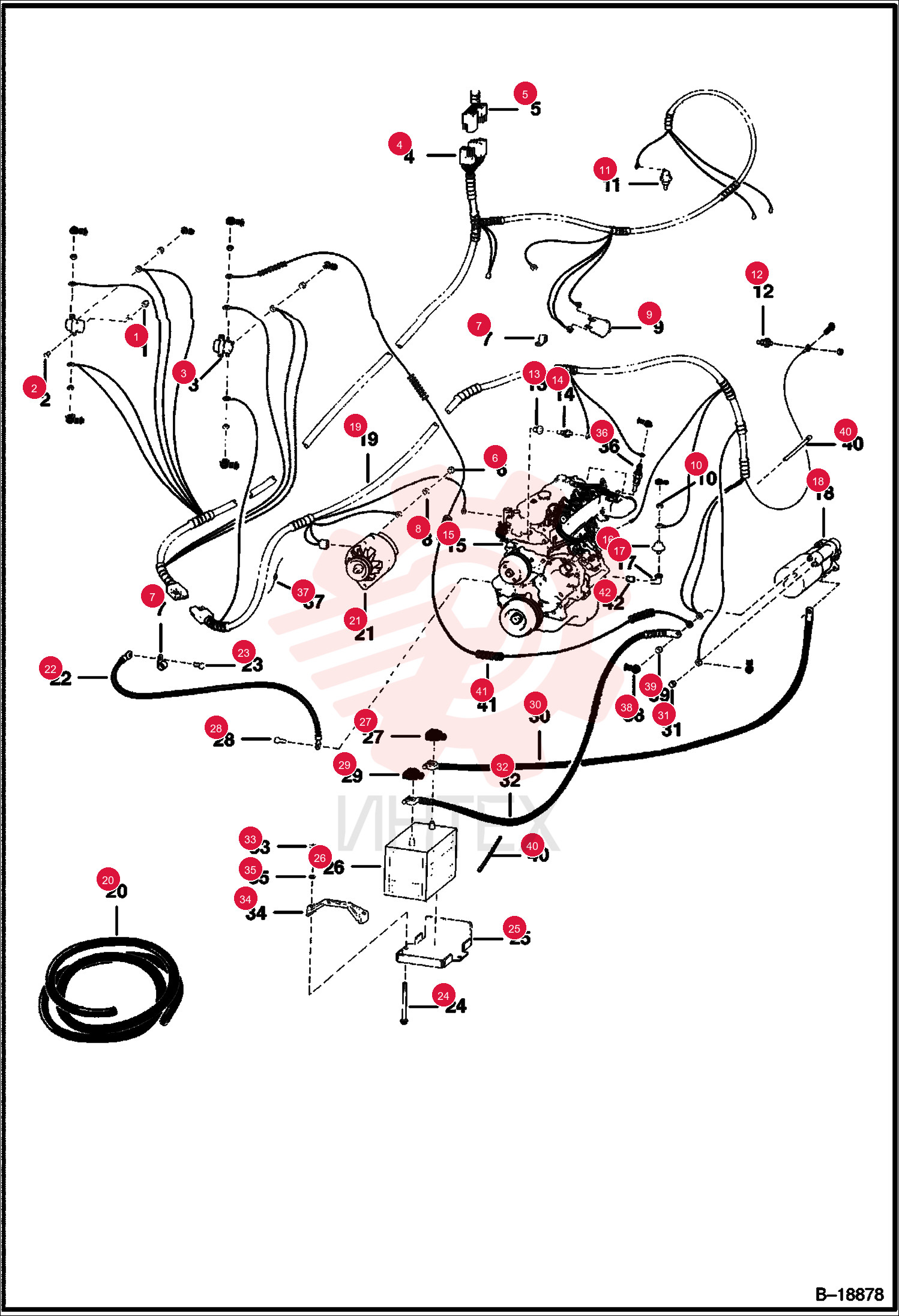

NUT 5 61D4 (3)

NUT 5 61D4 (3)

NUT 5 61D4 (3)

1 61D4

  • 61D4 - NUT 5

2 17C408

  • 17C408 - BOLT

3 6659319

  • 6659319 - SOLENOID
  • STARTER MAGNETIC
  • Was 6632186

4 6567432

  • 6567432 - HARNESS
  • chassis

5 1DM6

  • 1DM6 - NUT
  • Was 4DM6

6 30H46

  • 30H46 - CLIP

7 6E4

  • 6E4 - WASHER 10

8 6671062

  • 6671062 - SWITCH
  • PRESS OIL HYD
  • hydro. pressure - Was 6664577

9 12D8

  • 12D8 - NUT HEX MACH SCREW

10 7251584

  • 7251584 - SWITCH
  • TEMP
  • hyd temp - Was 6632633

11 6632053

  • 6632053 - SWITCH
  • filter

12 6564767

  • 6564767 - ADAPTOR

13 6658818

  • 6658818 - SENDER TEMP
  • eng temp - threaded connector

14 6631010

  • 6631010 - SWITCH
  • PRESS OIL ENG
  • pressure - Engine Oil

15 1309105

  • 1309105 - ELBOW

16 6569334

  • 6569334 - HARNESS
  • ENG
  • engine

17 6563505

  • 6563505 - CONDUIT
  • bulk - sold per foot

18 6563025

  • 6563025 - CABLE

19 84G3712

  • 84G3712 - SCREW THD ROLLING TT

20 6571757

  • 6571757 - BOLT

21 6561733

  • 6561733 - BOX
  • battery

22 7269857

  • 7269857 - BATTERY WET 1000 CCA
  • - Was 6665032

23 6599652

  • 6599652 - BOOT

24 1CM1016

  • 1CM1016 - SCREW
  • Was 2CM01016B

25 2356058

  • 2356058 - BOOT

26 6579227

  • 6579227 - CABLE
  • negative

27 4DM5

  • 4DM5 - NUT HEXAGON M5

28 6568685

  • 6568685 - CABLE
  • POSITIVE
  • positive - W/Ref. 29

29 59D5

  • 59D5 - NUT LOCK HEX PT

30 6569203

  • 6569203 - CLAMP BATTERY
  • battery

31 25E15

  • 25E15 - WASHER FLAT PLAIN

32 6631808

  • 6631808 - GLOW PLUG

33 3675725

  • 3675725 - DIODE

34 6560172

  • 6560172 - COVER

35 4DM10

  • 4DM10 - NUT HEX

36 6610510

  • 6610510 - STRAP
  • TIE 10
  • Was 1715312

37 6576477

  • 6576477 - WIRE

38 6667584

  • 6667584 - NIPPLE
  • Was 6651946
