Bobcat
/
843.0
/

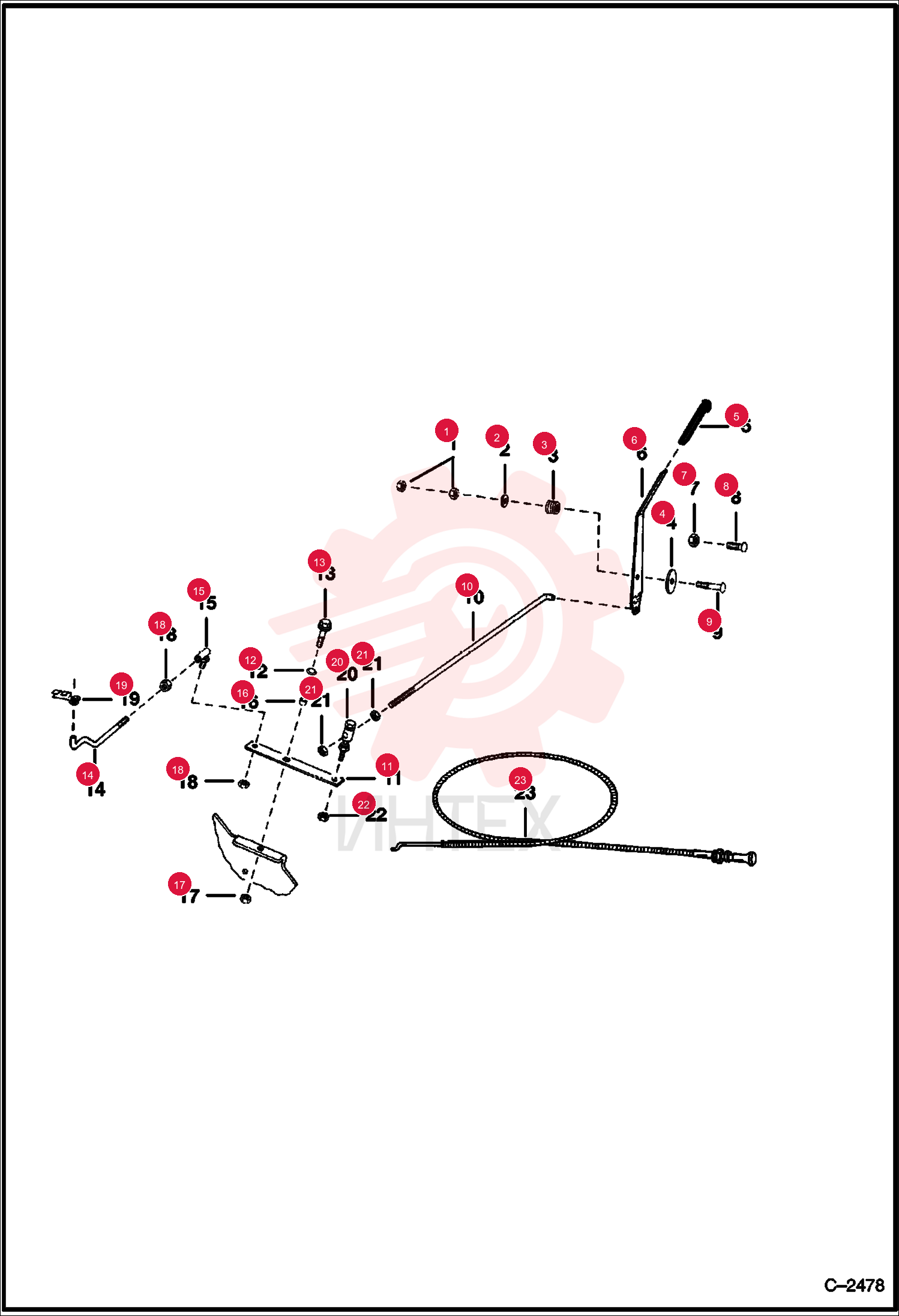

NUT 7D6 (1)

NUT 7D6 (1)

NUT 7D6 (1)

1 7D6

  • 7D6 - NUT

2 27E6

  • 27E6 - WASHER HARDEN PLAIN

3 6562126

  • 6562126 - SPRING

4 6562127

  • 6562127 - WASHER

5 6553557

  • 6553557 - GRIP

6 6563940

  • 6563940 - LEVER

7 57D5

  • 57D5 - NUT HEX FLNG GR8

8 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

9 7C640

  • 7C640 - BOLT

10 6565150

  • 6565150 - ROD

11 6560157

  • 6560157 - LEVER

12 6512913

  • 6512913 - WASHER

13 84G3720

  • 84G3720 - SCREW THD ROLLING TT

14 6564351

  • 6564351 - ROD

15 6554858

  • 6554858 - BALL JOINT
  • ball

16 6544654

  • 6544654 - BUSHING

17 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

18 62D4

  • 62D4 - NUT HEX FINISHED GR5

19 6557291

  • 6557291 - SWIVEL
  • BALL JOINT

20 61D4

  • 61D4 - NUT 5

21 85D4

  • 85D4 - NUT 5

22 6564758

  • 6564758 - CABLE
  • THROTTLE
  • shutoff - See Service Bulletin 843-002
