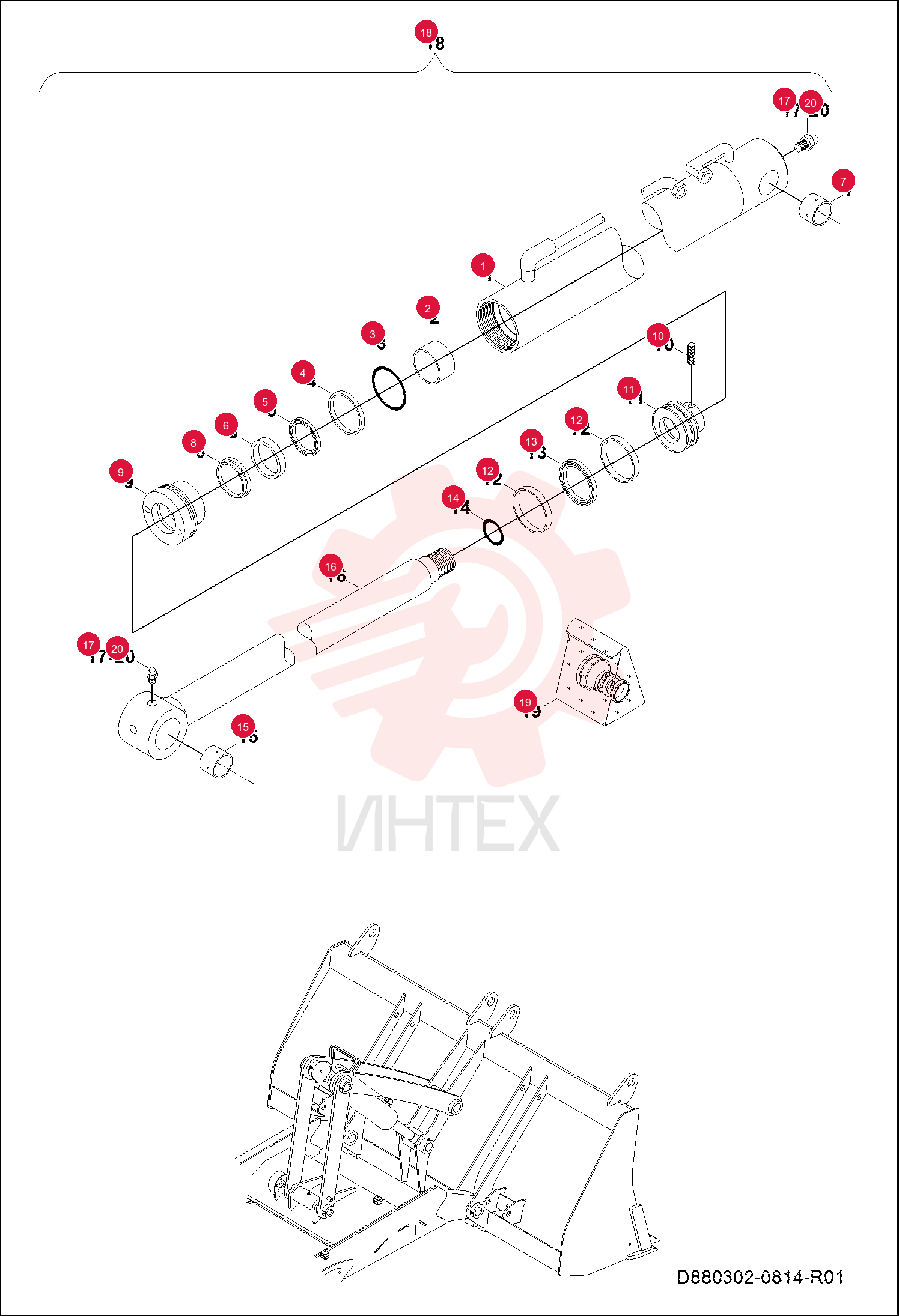

CYLINDER PIPE ASSY. 7289872

CYLINDER PIPE ASSY. 7289872

CYLINDER PIPE ASSY. 7289872

1 7289872

  • 7289872 - CYLINDER PIPE ASSY.

2 7289852

  • 7289852 - TEFLON RING

3 7289873

  • 7289873 - O-RING

4 7289874

  • 7289874 - RING BACK-UP

5 7289854

  • 7289854 - OMEGAT

6 7289855

  • 7289855 - RING LOCK

7 7289875

  • 7289875 - BUSHING

8 7289857

  • 7289857 - SEAL DUST

9 7289876

  • 7289876 - GUIDE

10 7289859

  • 7289859 - BOLT HEX

11 7289877

  • 7289877 - PISTON

12 7289878

  • 7289878 - TEFLON RING

13 7289879

  • 7289879 - OMEGAT

14 7289864

  • 7289864 - O-RING

15 7289880

  • 7289880 - BUSHING

16 7289881

  • 7289881 - ROD ASSEMBLY

17 7289862

  • 7289862 - FITTING GREASE

18 7289882

  • 7289882 - TILT CYLINDER ASSY.

19 7289883

  • 7289883 - REPAIR KIT

20 7289871

  • 7289871 - GREASER COVER
