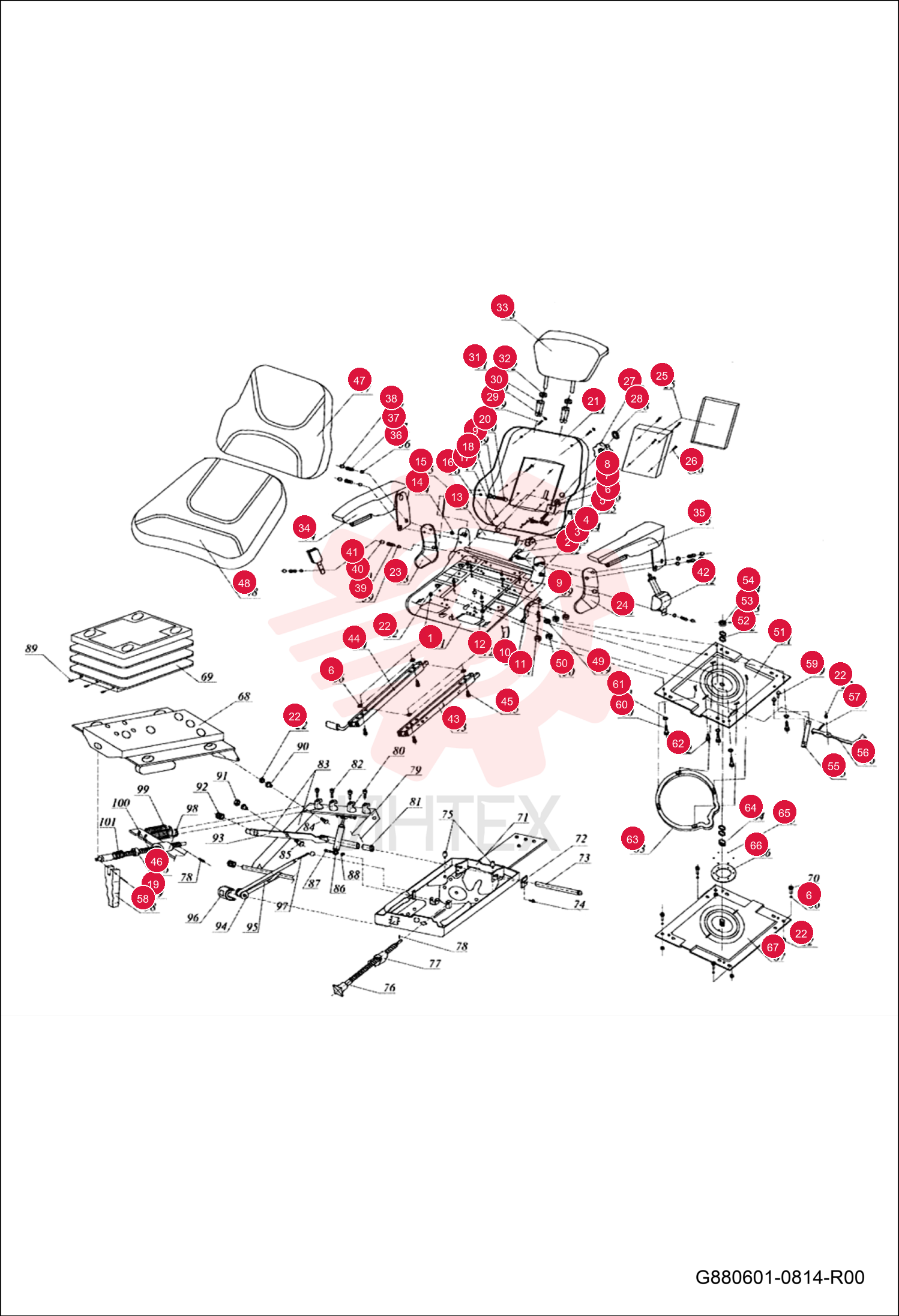

SEAT PLATE ASSY.

SEAT PLATE ASSY.

SEAT PLATE ASSY.

1 7290445

  • 7290445 - SEAT PLATE ASSY.

2 7290446

  • 7290446 - BACKREST RECLINING PLASTIC

3 7290447

  • 7290447 - ECCENTRIC GEAR PIN

4 7290448

  • 7290448 - ECCENTRIC GEAR OPPOSITE

5 7290449

  • 7290449 - PIPE PIN

6 7290450

  • 7290450 - SCREW

7 7290451

  • 7290451 - ECCENTRIC PLATE

8 7290452

  • 7290452 - BUSHING

9 7290453

  • 7290453 - WASHER

10 7290454

  • 7290454 - BACKREST RECLINING HANDLE

11 7290455

  • 7290455 - BACKREST RECLINING SPRING

12 7290456

  • 7290456 - BACKREST RECLINING PLASTIC

13 7290457

  • 7290457 - MECHANICAL LUMBAR PLATE

14 7290458

  • 7290458 - NUT

15 7290459

  • 7290459 - BACKREST SETUP SPRING

16 7290460

  • 7290460 - RUBBER WEDGE

17 7290461

  • 7290461 - POP RIVET

18 7290462

  • 7290462 - WASHER

19 7290463

  • 7290463 - PIPE PIN

20 7290464

  • 7290464 - SCREW

21 7290465

  • 7290465 - BACKREST ASSY WITH LUMBAR

22 7290466

  • 7290466 - NUT

23 7290467

  • 7290467 - RIGHT SIDE PLATE PLASTICS

24 7290468

  • 7290468 - LEFT SIDE PLATE PLASTICS

25 7290469

  • 7290469 - DOCUMENTS POCKET

26 7290470

  • 7290470 - SCREW

27 7290471

  • 7290471 - KNOB

28 7290472

  • 7290472 - KNOB COVER

29 7290473

  • 7290473 - SCREW

30 7290474

  • 7290474 - SCREW COVER

31 7290475

  • 7290475 - HEADREST PIN PIPE PLASTICS

32 7290476

  • 7290476 - HEADREST PIN PIPE PLASTIC C.

33 7290477

  • 7290477 - HEADREST ASSY.

34 7290478

  • 7290478 - ARMREST RIGHT

35 7290479

  • 7290479 - ARMREST LEFT

36 7290480

  • 7290480 - LOCK WASHER

37 7290481

  • 7290481 - SCREW

38 7290482

  • 7290482 - PLASTIC PLUG

39 7290483

  • 7290483 - WASHER

40 7290484

  • 7290484 - SCREW

41 7290485

  • 7290485 - PLASTIC PLUG

42 7290486

  • 7290486 - SAFETY BELT ASSY.

43 7290487

  • 7290487 - LEFT SLIDE ASSY.

44 7290488

  • 7290488 - RIGHT SLIDE ASSY.

45 7290489

  • 7290489 - SCREW

46 7290490

  • 7290490 - BEARING COVER

47 7290491

  • 7290491 - BACKREST COVERING ASSY.

48 7290492

  • 7290492 - SEAT COVERING ASSY.

49 7290493

  • 7290493 - CENTRAL PLASTICS

50 7290494

  • 7290494 - SIDE SUPPORT PLASTICS

51 7290495

  • 7290495 - TURNING TRAY UPPER PLATE

52 7290496

  • 7290496 - WASHER

53 7290497

  • 7290497 - COTTER PIN

54 7290498

  • 7290498 - NUT

55 7290499

  • 7290499 - PLATE

56 7290500

  • 7290500 - TURNING TRAY HANDLE ASSY.

57 7290501

  • 7290501 - TURNING HANDLE SPRING

58 7290502

  • 7290502 - WEIGHT ADJUSTMENT PLASTICS

59 7290503

  • 7290503 - SCREW

60 7290504

  • 7290504 - SCREW

61 7290505

  • 7290505 - PLASTICS WASHER

62 7290506

  • 7290506 - SCREW

63 7290507

  • 7290507 - TURNING TRAY SUPPORT PL.

64 7290508

  • 7290508 - BEARING

65 7290509

  • 7290509 - BALL

66 7290510

  • 7290510 - TURNING TRAY PLASTICS

67 7290511

  • 7290511 - TURNING TRAY BASE PLATE
