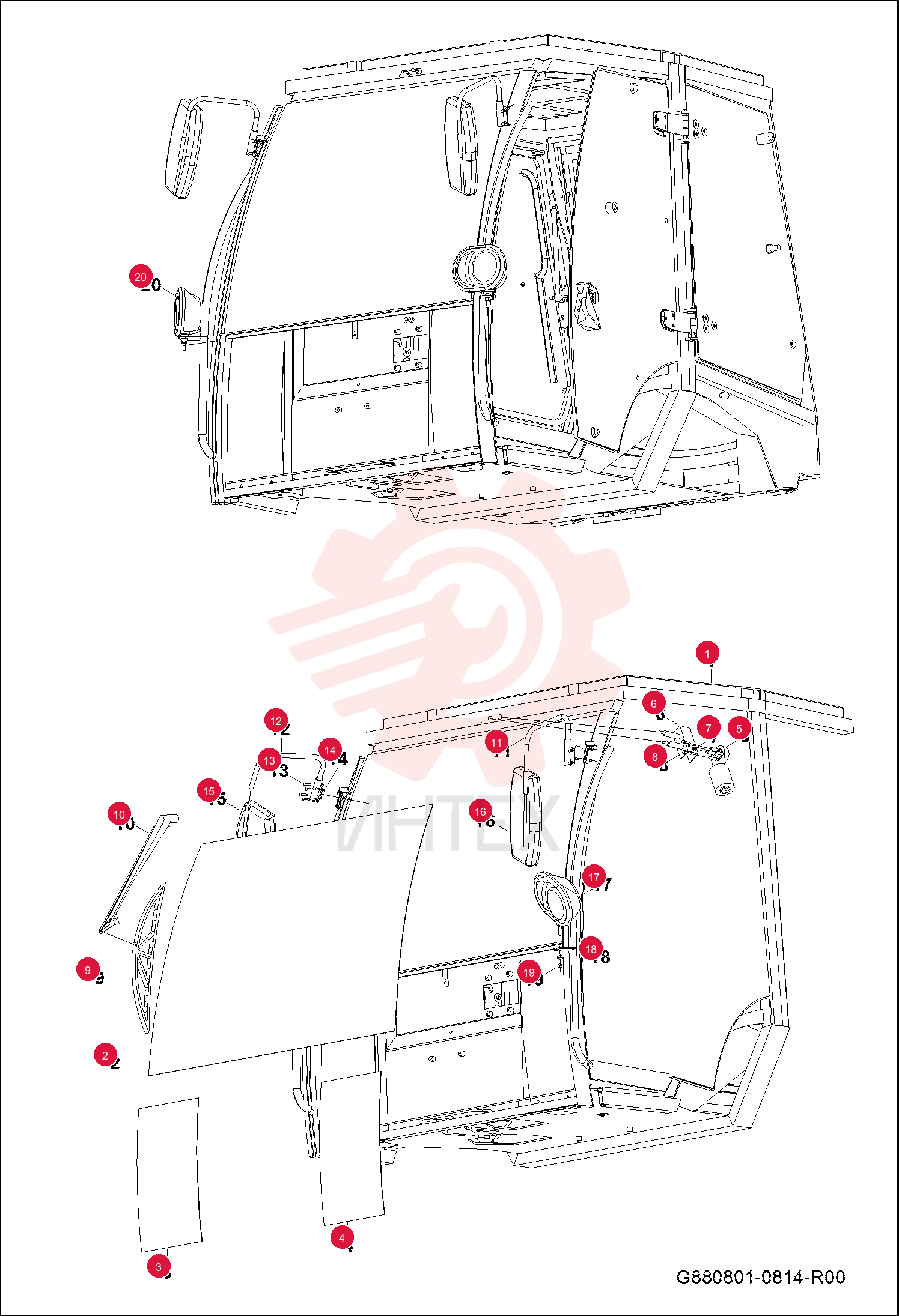

CABIN FRAME

CABIN FRAME

CABIN FRAME

1 7290556

  • 7290556 - CABIN FRAME

2 7290557

  • 7290557 - FRONT GLASS

3 7290558

  • 7290558 - KNEE GLASS RIGHT

4 7290559

  • 7290559 - KNEE GLASS LEFT

5 7290560

  • 7290560 - WIPER MOTOR

6 7290561

  • 7290561 - WIPER MOTOR MECHANICM

7 7290562

  • 7290562 - NUT

8 7290563

  • 7290563 - BOLT

9 7290564

  • 7290564 - BROOM

10 7290565

  • 7290565 - LEVER

11 7290566

  • 7290566 - LEVER

12 7290566

  • 7290566 - LEVER

13 7290567

  • 7290567 - BOLT

14 7290568

  • 7290568 - NUT

15 7290569

  • 7290569 - MIRROR

16 7290569

  • 7290569 - MIRROR

17 7290570

  • 7290570 - LIGHT HEAD

18 7290571

  • 7290571 - WASHER

19 7290572

  • 7290572 - NUT

20 7290573

  • 7290573 - LIGHT HEAD
