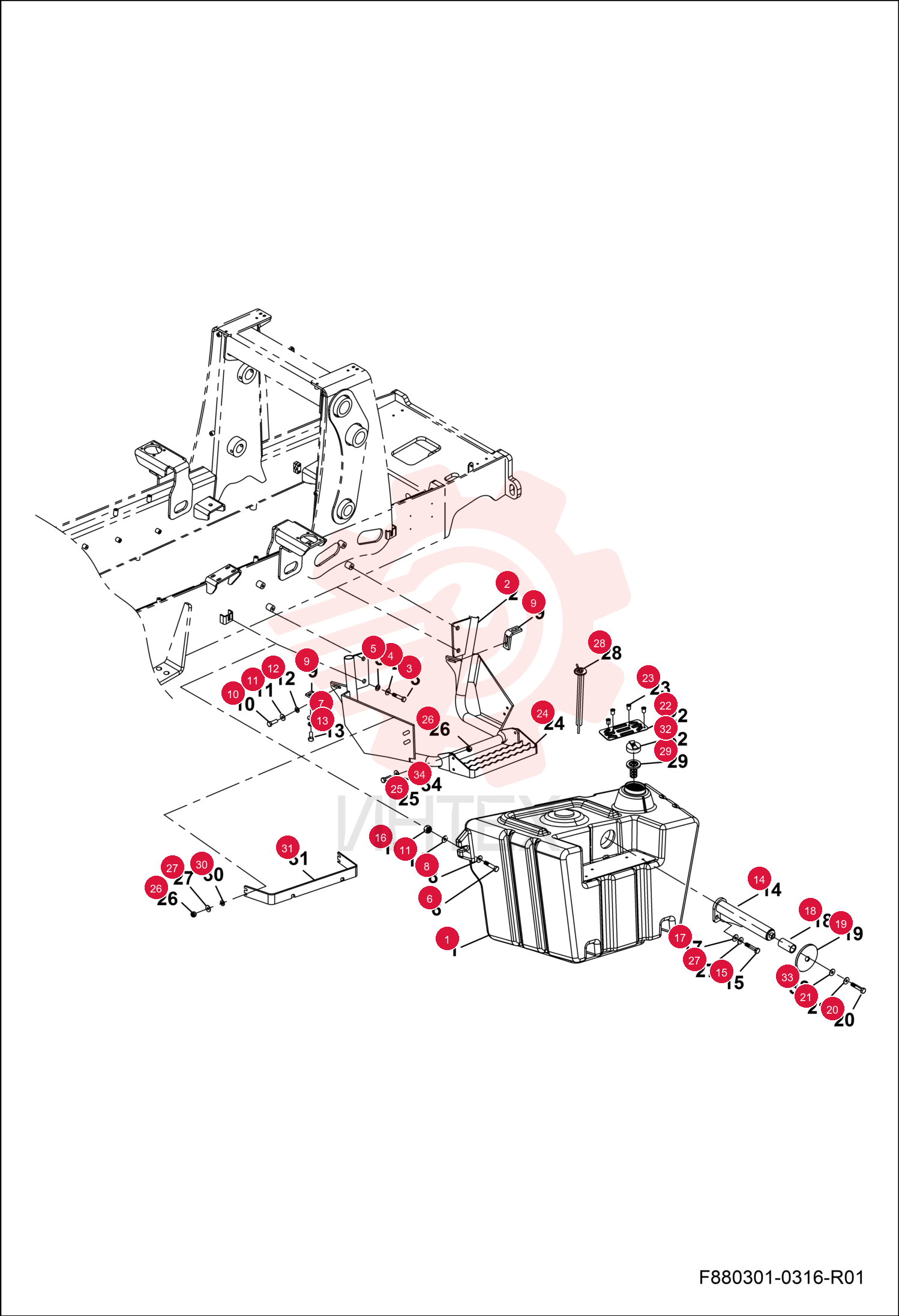

FUEL TANK 7290350 (1)

FUEL TANK 7290350 (1)

FUEL TANK 7290350 (1)

1 7290350

  • 7290350 - FUEL TANK

2 7290351

  • 7290351 - PIPE

3 7290352

  • 7290352 - BOLT

4 7289999

  • 7289999 - WASHER FLAT

5 7290001

  • 7290001 - WASHER LOCK

6 7290354

  • 7290354 - BOLT HEX

7 7290355

  • 7290355 - NUT HEX

8 7290356

  • 7290356 - PLATE

9 7290357

  • 7290357 - BRACKET

10 7289515

  • 7289515 - BOLT HEX

11 7289314

  • 7289314 - WASHER FLAT

12 7289635

  • 7289635 - WASHER LOCK

13 7289991

  • 7289991 - BOLT HEX

14 7290358

  • 7290358 - PIN

15 7289849

  • 7289849 - BOLT HEX

16 7289514

  • 7289514 - NUT HEX

17 7289259

  • 7289259 - WASHER LOCK

18 7290359

  • 7290359 - PIPE

19 7290360

  • 7290360 - COWER

20 7290361

  • 7290361 - BOLT

21 7290362

  • 7290362 - WASHER

22 7290363

  • 7290363 - STEP PLATE

23 7289614

  • 7289614 - BOLT HEX

24 7290342

  • 7290342 - STEP CAB

25 7289279

  • 7289279 - BOLT HEX

26 7289641

  • 7289641 - NUT HEX

27 7289604

  • 7289604 - WASHER FLAT

28 7290364

  • 7290364 - GAUGE LEVEL

29 7290384

  • 7290384 - FILTER BREATHER AIR

30 7288891

  • 7288891 - WASHER LOCK

31 7290365

  • 7290365 - PLATE

32 7290338

  • 7290338 - CAP FUEL

33 7304101

  • 7304101 - WASHER

34 7288892

  • 7288892 - WASHER FLAT
