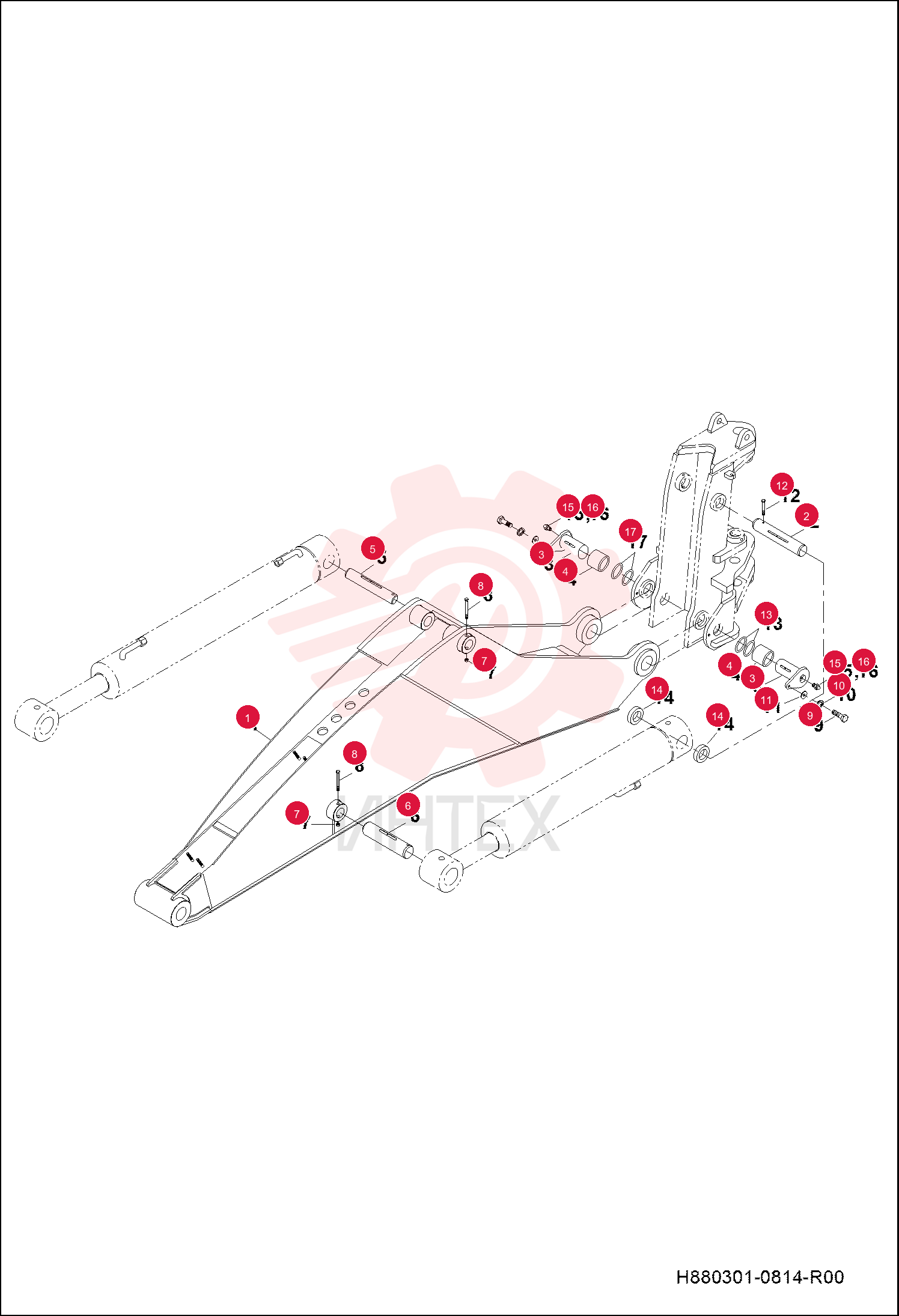

BACKHOE BOOM

BACKHOE BOOM

BACKHOE BOOM

1 7290701

  • 7290701 - BACKHOE BOOM

2 7290702

  • 7290702 - PIN PIVOT

3 7290703

  • 7290703 - PIN PIVOT

4 7290704

  • 7290704 - BUSHING PIVOT

5 7290705

  • 7290705 - PIN

6 7290706

  • 7290706 - PIN

7 7288888

  • 7288888 - NUT HEX

8 7290707

  • 7290707 - BOLT HEX

9 7288895

  • 7288895 - BOLT HEX

10 7289259

  • 7289259 - WASHER LOCK

11 7289260

  • 7289260 - WASHER FLAT

12 7290708

  • 7290708 - BOLT HEX

13 7294983

  • 7294983 - SHIM

14 7294984

  • 7294984 - BUSHING

15 7289862

  • 7289862 - FITTING GREASE

16 7289871

  • 7289871 - GREASER COVER

17 7294985

  • 7294985 - SHIM
