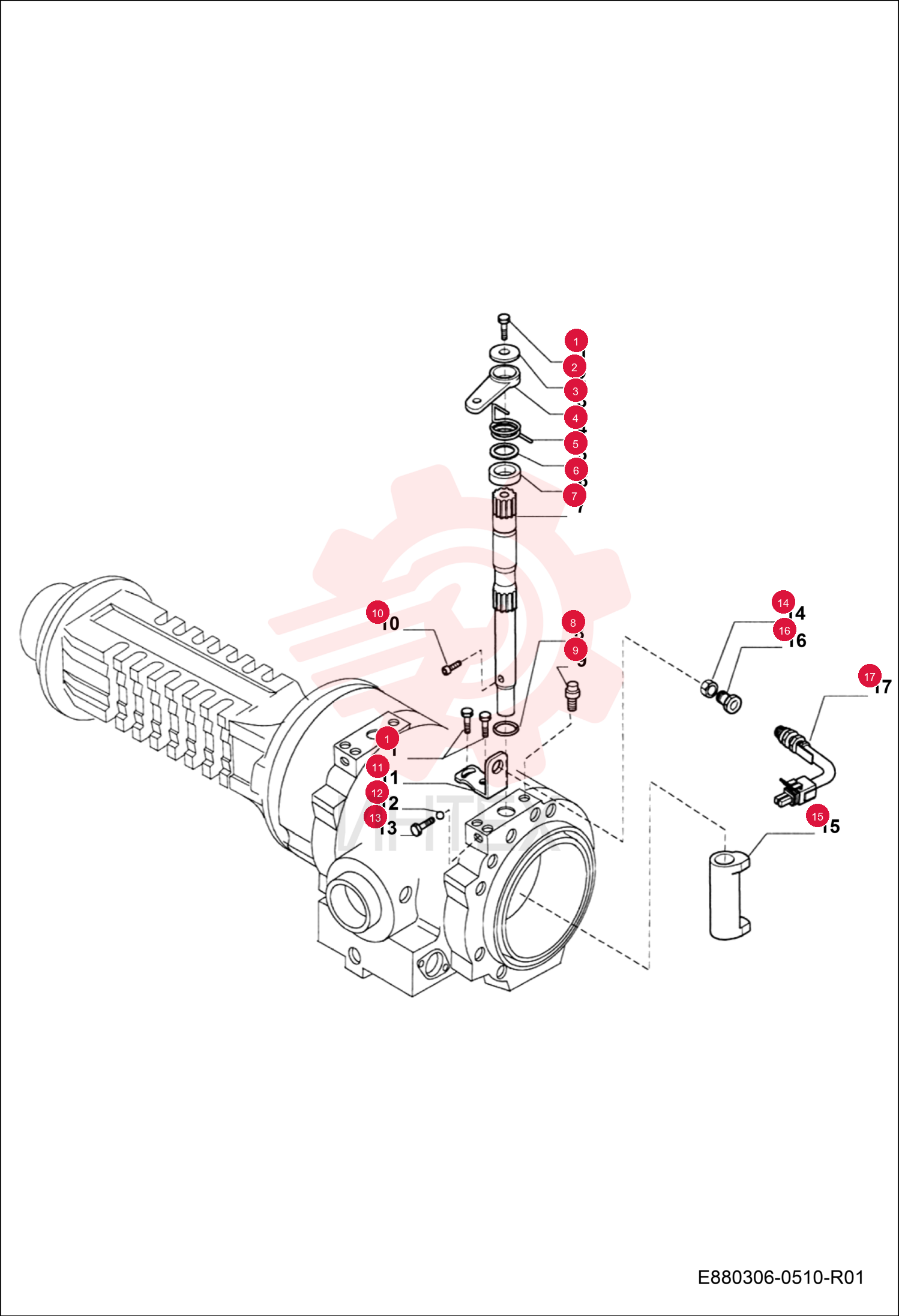

BOLT

BOLT

BOLT

1 7290087

  • 7290087 - BOLT

2 7290088

  • 7290088 - WASHER

3 7290089

  • 7290089 - BRAKE LEVER

4 7290091

  • 7290091 - LEFT SPRING

5 7290090

  • 7290090 - RIGHT SPRING

6 7290092

  • 7290092 - BUSH

7 7290093

  • 7290093 - SPACER

8 7290094

  • 7290094 - BRAKE SHAFT

9 7290095

  • 7290095 - O-RING

10 7290096

  • 7290096 - BREATHER

11 7290097

  • 7290097 - BOLT

12 7290098

  • 7290098 - BRACKET

13 7290099

  • 7290099 - BALL

14 7290100

  • 7290100 - BOLT

15 7290101

  • 7290101 - NUT

16 7290102

  • 7290102 - CAM

17 7290103

  • 7290103 - LEVER LOCK

18 7290104

  • 7290104 - SWITCH
