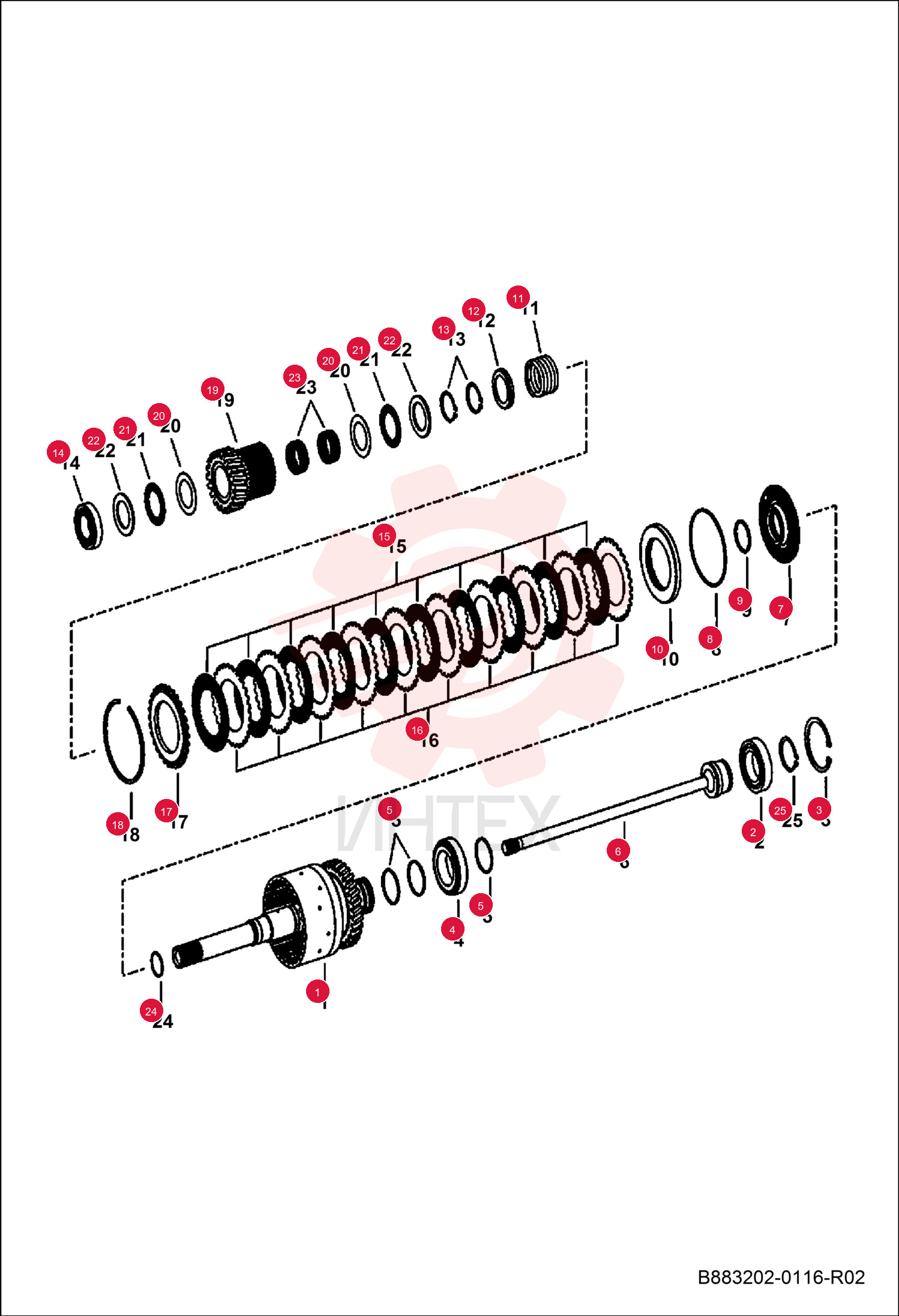

SHAFT INPUT 7291038 (1)

SHAFT INPUT 7291038 (1)

SHAFT INPUT 7291038 (1)

1 7291038

  • 7291038 - SHAFT INPUT

2 7291039

  • 7291039 - BEARING BALL

3 7291040

  • 7291040 - RING RETAINING

4 7291041

  • 7291041 - ROLL BEARING

5 7291042

  • 7291042 - PISTON RING

6 7291043

  • 7291043 - SHAFT TRANS

7 7291044

  • 7291044 - PISTON UNION

8 7291045

  • 7291045 - O-RING

9 7291046

  • 7291046 - O-RING

10 7291047

  • 7291047 - WASHER FLAT

11 7291048

  • 7291048 - SEAL RING

12 7291049

  • 7291049 - RING SEAL

13 7291050

  • 7291050 - RING RETAINING

14 7291051

  • 7291051 - BEARING ROLLER

15 7291052

  • 7291052 - DISC CLUTCH

16 7291053

  • 7291053 - DISC CLUTCH

17 7291054

  • 7291054 - SHIM RING

18 7291055

  • 7291055 - SNAP RING A=2.0

19 7291063

  • 7291063 - SEGMAN A=4.0

20 7291062

  • 7291062 - SEGMAN A=3.75

21 7291061

  • 7291061 - SNAP RING A=2.25

22 7291060

  • 7291060 - SNAP RING A=3.25

23 7291059

  • 7291059 - SNAP RING A=3.0

24 7291058

  • 7291058 - SNAP RING A=2.75

25 7291057

  • 7291057 - SNAP RING A=2.5

26 7291056

  • 7291056 - SNAP RING A=2.25

27 7291064

  • 7291064 - CARRIER DISC

28 7291065

  • 7291065 - WASHER FLAT

29 7291066

  • 7291066 - WASHER FLAT

30 7291067

  • 7291067 - DISC CLUTCH

31 7291068

  • 7291068 - WASHER FLAT

32 7291069

  • 7291069 - PISTON RING

33 7291070

  • 7291070 - RING
