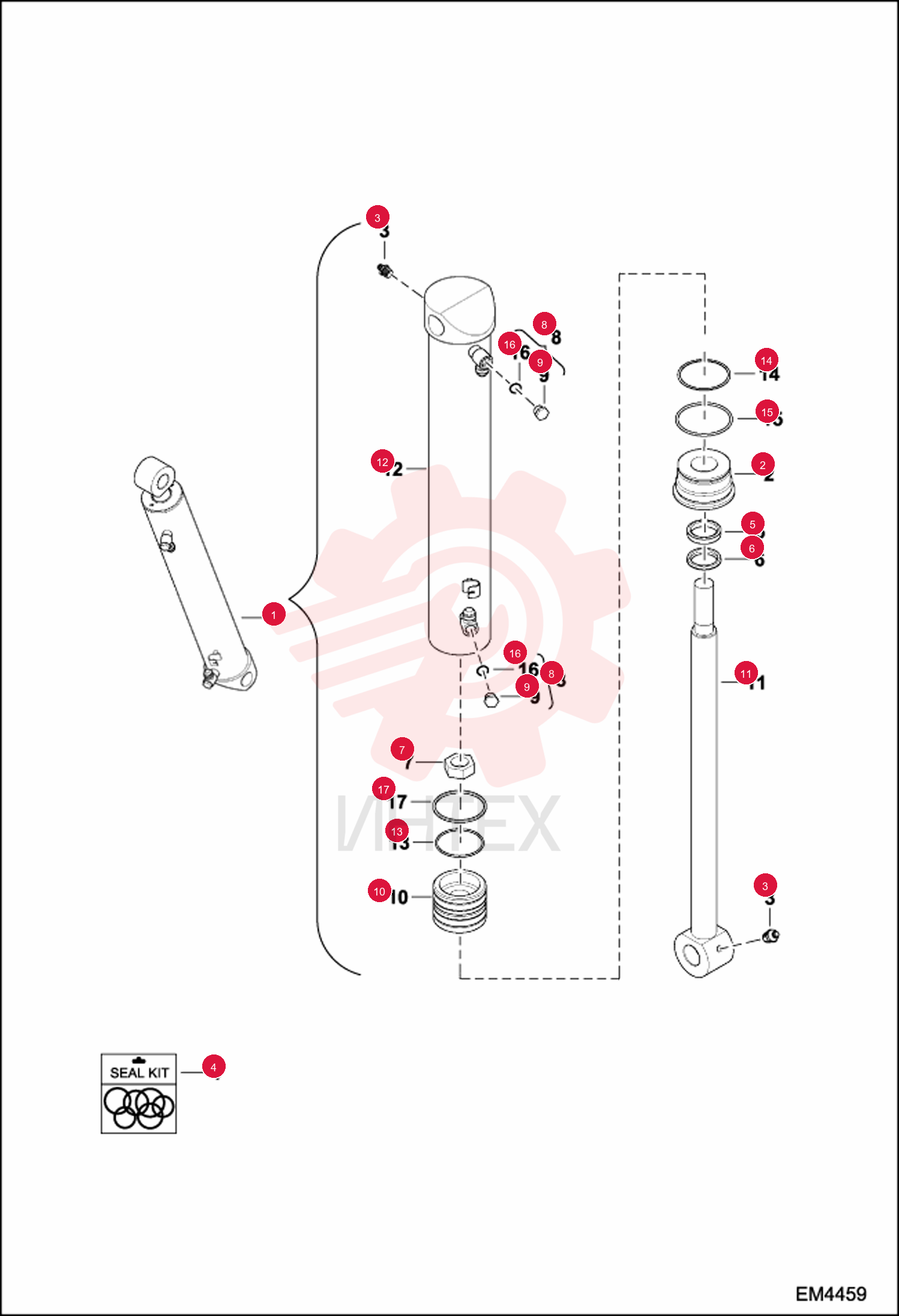

CYLINDER 7103776 (2)

CYLINDER 7103776 (2)

CYLINDER 7103776 (2)

1 7103776

  • 7103776 - CYLINDER
  • Ref. 2
  • 4-13 & 15-17

2 6538367

  • 6538367 - HEAD
  • CYL TILT

3 10H25

  • 10H25 - FTG GREASE STRAIGHT

4 7135547

  • 7135547 - KIT
  • SEAL
  • Ref. 5-7
  • 13
  • 17
  • 54K40224 & 73K232

5 6667326

  • 6667326 - SEAL

6 6690707

  • 6690707 - WIPER
  • ROD CYL

7 6810539

  • 6810539 - NUT

8 6812171

  • 6812171 - PLUG
  • W/Ref. 9
  • 18

9 7104103

  • 7104103 - TUBE
  • W/Ref. 8
  • 15

10 54K30218

  • 54K30218 - 0-RING

11 54K40300

  • 54K40300 - O-RING

12 75K6

  • 75K6 - O-RING

13 947088

  • 947088 - RING
  • BACK-UP
