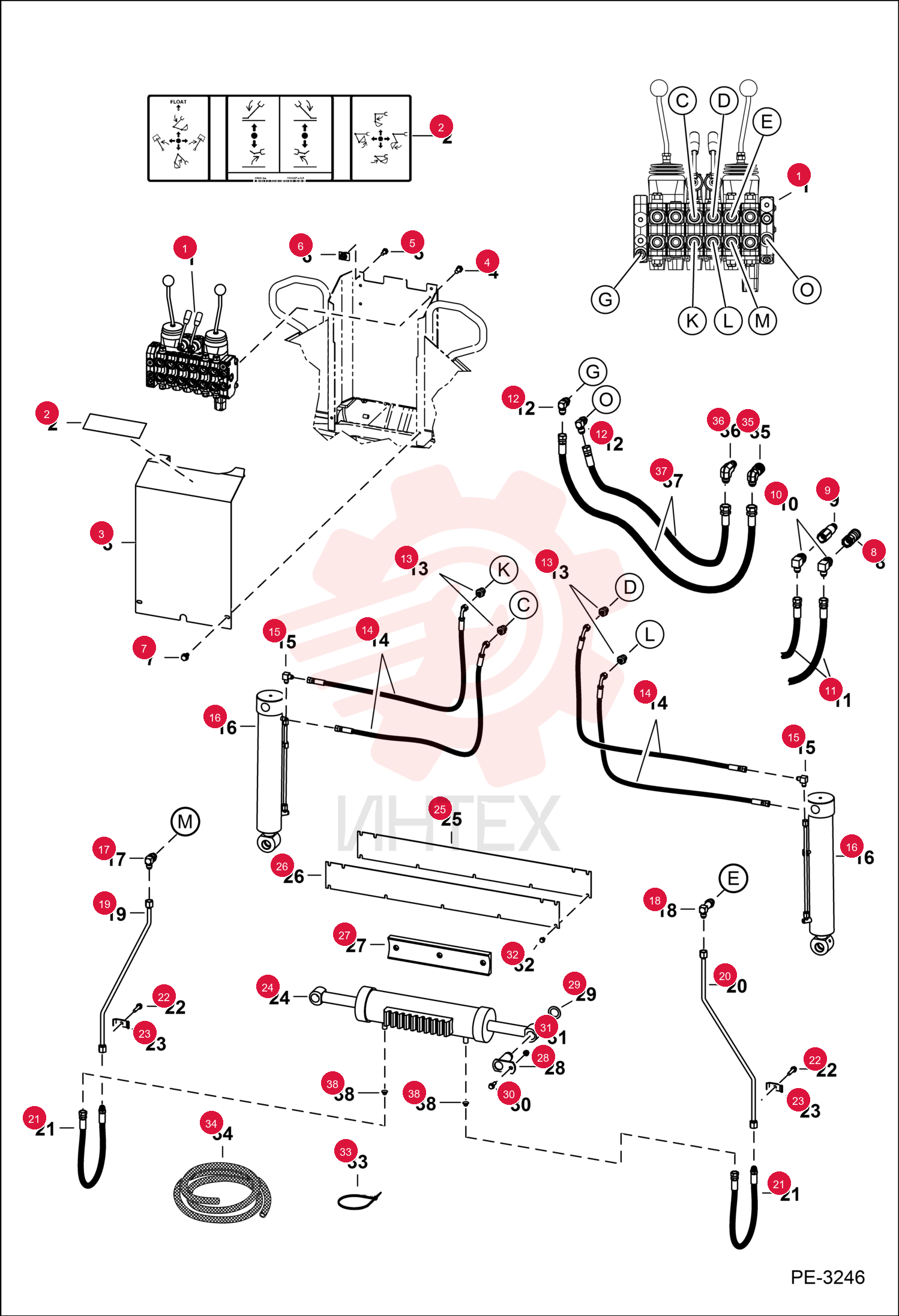

DECAL 7131327 (8)

DECAL 7131327 (8)

DECAL 7131327 (8)

1 7131327

  • 7131327 - DECAL
  • control

2 7130434

  • 7130434 - COVER

3 17C510

  • 17C510 - BOLT

4 17C410

  • 17C410 - BOLT 10

5 17C412

  • 17C412 - BOLT 5

6 7160765

  • 7160765 - NUT
  • Was 6660988

7 84G3712

  • 84G3712 - SCREW THD ROLLING TT

8 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

9 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

10 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

11 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

12 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • Use with Ref. 8 & 9 straight couplers

13 7131150

  • 7131150 - HOSE
  • 1422 mm (56") long - .875" threads - Use straight couplers

14 17KB1010

  • 17KB1010 - FTG HYD ELBOW 90

15 15KB0610

  • 15KB0610 - FITTING
  • HYD CONNECTOR

16 7131137

  • 7131137 - HOSE

17 77F5

  • 77F5 - FITTING

18 17KB0810

  • 17KB0810 - FTG HYD ELBOW 90

19 6816235

  • 6816235 - ELBOW

20 7130206

  • 7130206 - TUBELINE

21 7129636

  • 7129636 - TUBELINE

22 6533046

  • 6533046 - HOSE

23 84G3728

  • 84G3728 - SCREW THD ROLLING TT

24 6502426

  • 6502426 - CLAMP

25 6532861

  • 6532861 - SHIM

26 6532860

  • 6532860 - PLATE
  • WEAR

27 6533319

  • 6533319 - BAR
  • WEAR

28 6532869

  • 6532869 - PIN

29 6528927

  • 6528927 - WASHER

30 84G3728

  • 84G3728 - SCREW THD ROLLING TT

31 84G3720

  • 84G3720 - SCREW THD ROLLING TT

32 55D6

  • 55D6 - NUT

33 89D6

  • 89D6 - NUT

34 84G3110

  • 84G3110 - SCREW

35 6610510

  • 6610510 - STRAP
  • TIE 10

36 6649389

  • 6649389 - HOSE
  • CVR BULK/FT
  • bulk - sold per foot - for Ref. 21 hose

37 7246781

  • 7246781 - COUPLER
  • FF FEMALE
  • - 90 degree - Was 7168433

38 7246795

  • 7246795 - COUPLER
  • FF MALE
  • - 90 degree - Was 7168432

39 6958998

  • 6958998 - HOSE
  • 1422 mm (56") long - .87" thread & 1.063" thread - Use 90 degree coupler

40 6592824

  • 6592824 - ORIFICE
  • 2.73 mm (0.108") dia. - 14 mm (0.55") OD

41 6569312

  • 6569312 - ORIFICE
  • 2
  • 73 mm (0.108") dia. - 10
  • 7 mm (0.42") OD
