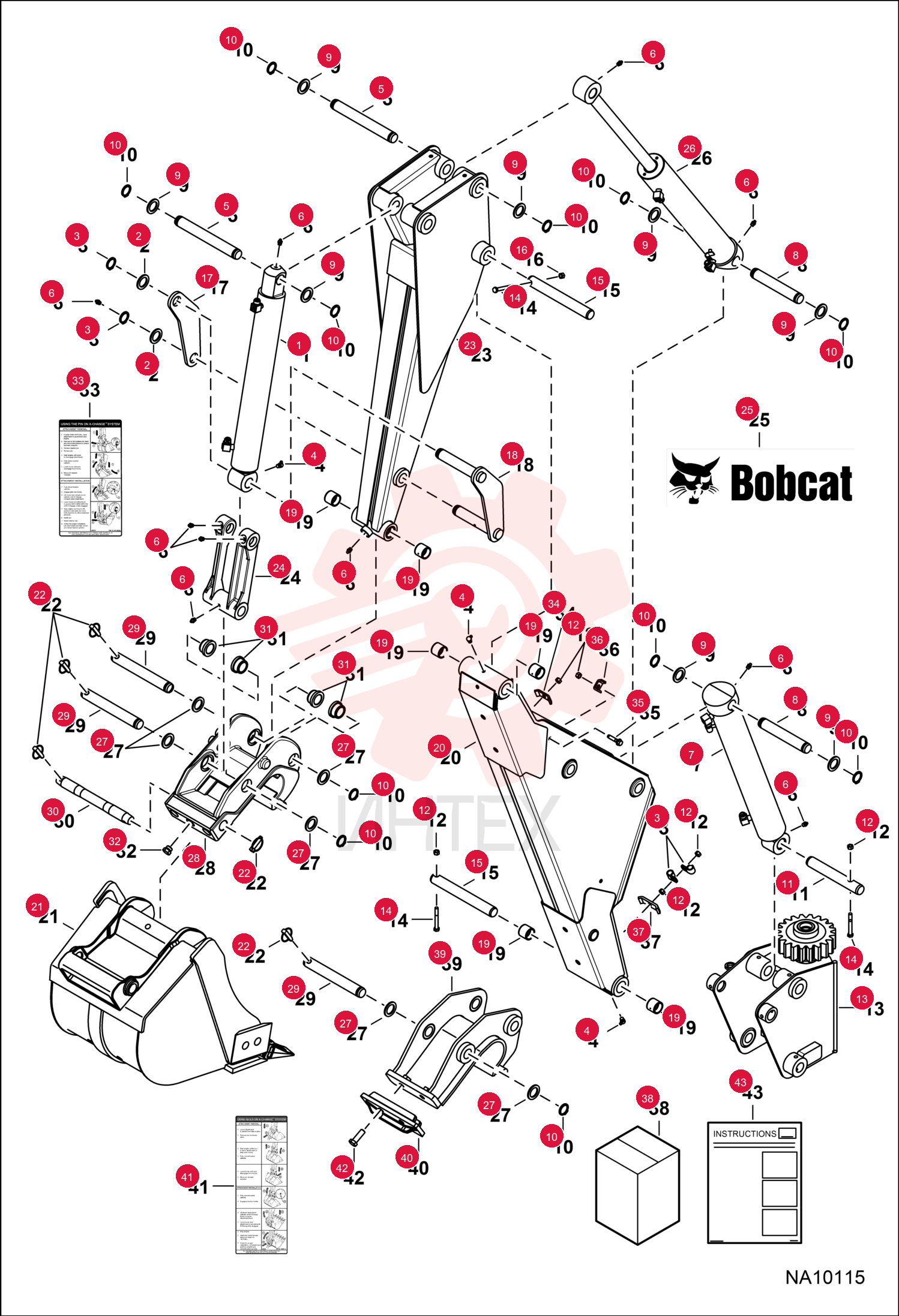

CYLINDER 7147446 (5)
1 7147446
- 7147446 - CYLINDER
- - bucket
2 6584872
- 6584872 - WASHER 5
3 30H38
- 30H38 - CLIP
4 12H15
- 12H15 - FTG GREASE 90
5 6532518
- 6532518 - PIN
6 10H25
- 10H25 - FTG GREASE STRAIGHT
7 6532517
- 6532517 - PIN
8 6532519
- 6532519 - WASHER
9 22J20
- 22J20 - SNAP RING
10 6532568
- 6532568 - PIN
11 81D6
- 81D6 - NUT
12 6711793
- 6711793 - FRAME
- SWING
13 17C648
- 17C648 - SCREW HEX CAP
14 6532522
- 6532522 - PIN
15 89D6
- 89D6 - NUT
16 6538405
- 6538405 - LINK
17 6535855
- 6535855 - LINK
18 6651171
- 6651171 - BEARING
19 6532491
- 6532491 - BOOM
- DIPPER ARM
20 6560382
- 6560382 - PIN
- LOCK
21 6535817
- 6535817 - ARM
- DIPPER BACKHOE
- 6" wide - Also Order (2) of Ref. 29 if using a standard bucket
22 6535852
- 6535852 - LINK
- 6" wide - Also Order (2) of Ref. 29 if using a standard bucket
23 6815489
- 6815489 - DECAL
- LOGO BOBCAT AND HEAD
- 402 mm (15.81") long - Used on both sides
24 6532519
- 6532519 - WASHER
25 7102890
- 7102890 - FRAME
- pin-on X-change
26 6537226
- 6537226 - PIN
27 7137214
- 7137214 - PIN
28 7103006
- 7103006 - BUSHING
29 24K6
- 24K6 - PLUG HYDR ORING BOSS
30 6818059
- 6818059 - DECAL
- using X-change
31 6502426
- 6502426 - CLAMP
32 84G3728
- 84G3728 - SCREW THD ROLLING TT
33 6562266
- 6562266 - CLAMP TUBE
34 6537761
- 6537761 - CLAMP
35 6714924
- 6714924 - FRAME
36 6804485
- 6804485 - PLATE
- BOLT-ON
37 6806121
- 6806121 - DECAL
38 1C1052
- 1C1052 - SCREW
39 6900862
- 6900862 - INSTRUCTIONS
