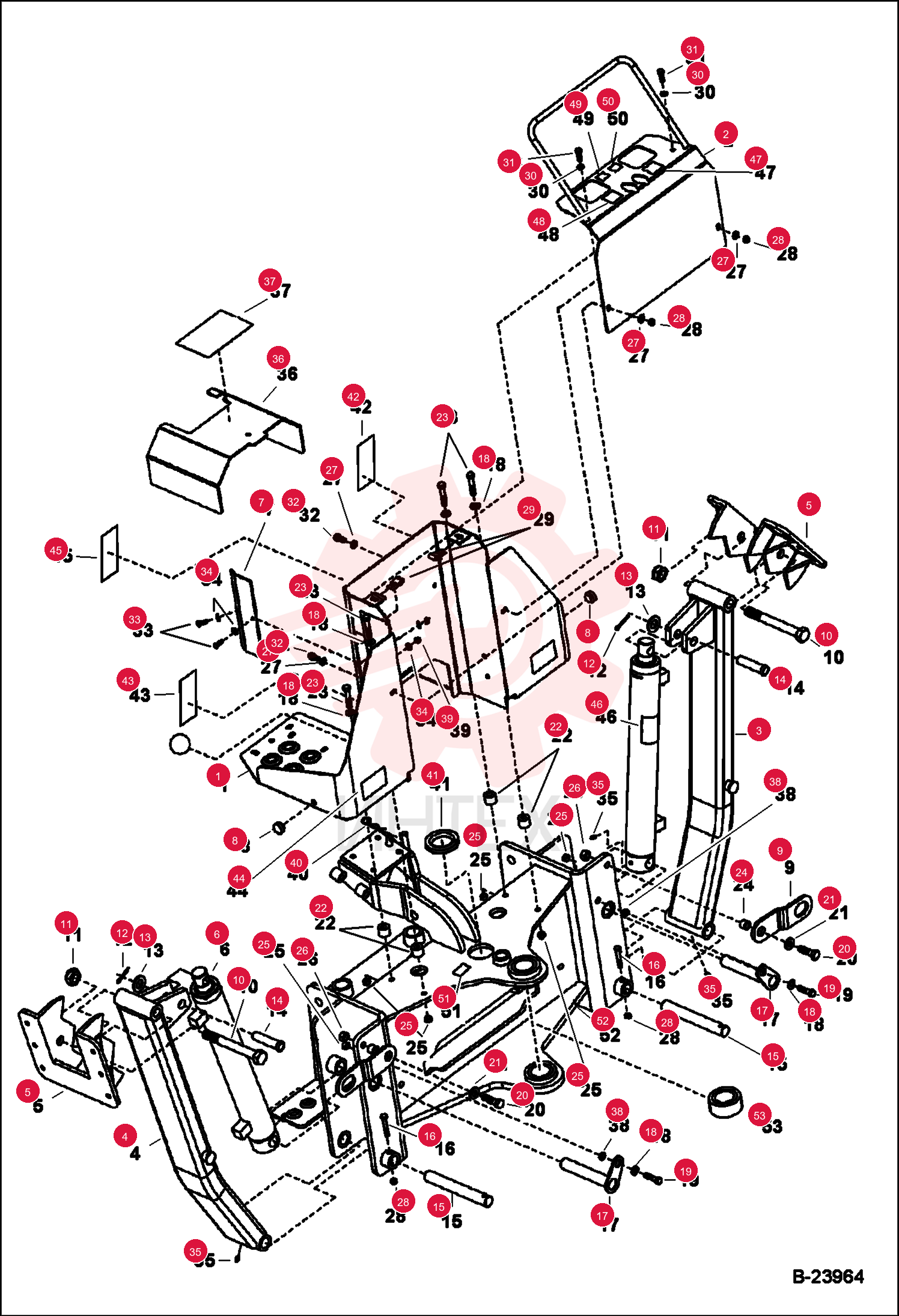

FRAME 7003691 (1)

FRAME 7003691 (1)

FRAME 7003691 (1)

1 7003691

  • 7003691 - FRAME

2 7003692

  • 7003692 - COVER
  • VALVE

3 7003549

  • 7003549 - STABILIZER
  • LH

4 7003550

  • 7003550 - STABILIZER
  • RH

5 7003551

  • 7003551 - PAD
  • STABILIZER

6 7003552

  • 7003552 - CYLINDER
  • STABILIZER

7 7003553

  • 7003553 - COVER

8 6698027

  • 6698027 - BUMPER
  • RUBBER

9 6693806

  • 6693806 - LOCK
  • FLAT

10 17C12104

  • 17C12104 - BOLT

11 7003554

  • 7003554 - NUT

12 1F524

  • 1F524 - PIN

13 27E12

  • 27E12 - WASHER

14 6693687

  • 6693687 - PIN
  • CLEVIS

15 7003555

  • 7003555 - PIN

16 17C532

  • 17C532 - BOLT 5

17 6693657

  • 6693657 - PIN
  • STABILIZER CYL BASE

18 27E6

  • 27E6 - WASHER HARDEN PLAIN

19 17C624

  • 17C624 - BOLT 5

20 17C828

  • 17C828 - BOLT

21 27E8

  • 27E8 - WASHER 10

22 7003556

  • 7003556 - SPACER

23 17C632

  • 17C632 - BOLT 5

24 7003557

  • 7003557 - SPACER

25 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

26 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

27 27E5

  • 27E5 - WASHER

28 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

29 6693807

  • 6693807 - NUT
  • SPEED

30 4E5

  • 4E5 - WASHER

31 17C516

  • 17C516 - BOLT

32 17C512

  • 17C512 - BOLT 5

33 17C412

  • 17C412 - BOLT 5

34 27E4

  • 27E4 - WASHER

35 10H35

  • 10H35 - FTG GREASE STRAIGHT

36 7003558

  • 7003558 - COVER

37 7003559

  • 7003559 - PAD
  • ANTI-SLIP

38 7D6

  • 7D6 - NUT

39 85D4

  • 85D4 - NUT 5

40 6693686

  • 6693686 - PIN
  • COTTER

41 6693739

  • 6693739 - STRIP
  • PLASTIC

42 7152889

  • 7152889 - DECAL
  • warning

43 7152893

  • 7152893 - DECAL
  • warning

44 7152892

  • 7152892 - DECAL
  • danger

45 7152890

  • 7152890 - DECAL
  • warning

46 7152891

  • 7152891 - DECAL
  • danger

47 7152895

  • 7152895 - DECAL
  • operation

48 7152894

  • 7152894 - DECAL
  • operation

49 7152888

  • 7152888 - DECAL
  • operation

50 7152887

  • 7152887 - DECAL
  • operation

51 7152896

  • 7152896 - DECAL
  • utility

52 7003560

  • 7003560 - FRAME
  • MAIN

53 7013213

  • 7013213 - BUSHING
  • weld-on
