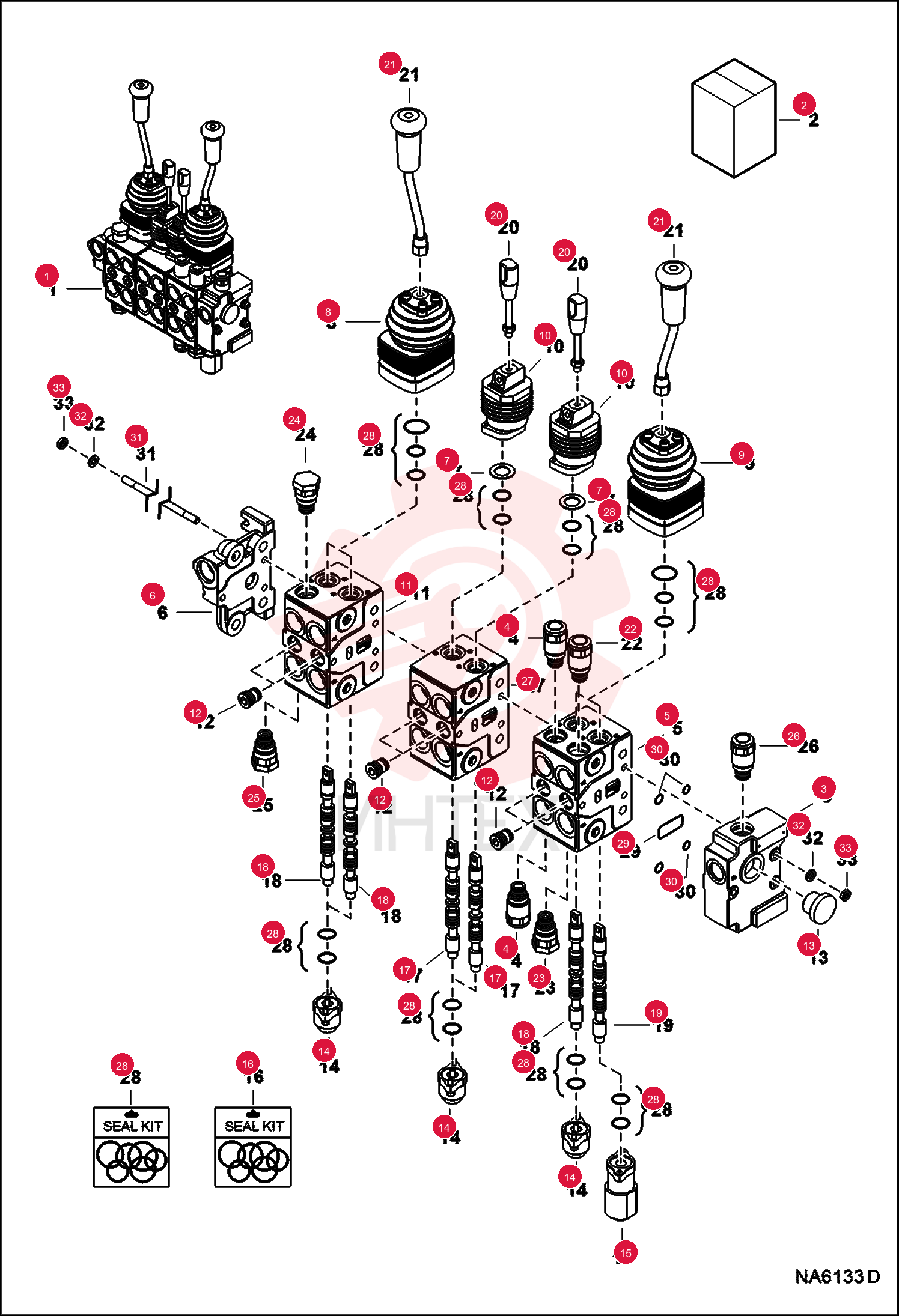

KIT, ROD TIE 7022322 (1)

KIT, ROD TIE 7022322 (1)

KIT, ROD TIE 7022322 (1)

1 7022322

  • 7022322 - KIT
  • ROD TIE
  • (3) of Ref. 31 & (6) each of Ref. 32 & 33

2 7022323

  • 7022323 - SECTION
  • VALVE
  • inlet

3 7022324

  • 7022324 - VALVE
  • RELIEF
  • anti-cavitation

4 7025066

  • 7025066 - SECTION
  • VALVE
  • assy - Ref. 4
  • 12
  • 14
  • 15
  • 18
  • 19
  • 22
  • 23 & 28

5 7022326

  • 7022326 - SECTION
  • VALVE
  • outlet

6 7022513

  • 7022513 - WASHER

7 7022328

  • 7022328 - JOYSTICK
  • - RH

8 7022329

  • 7022329 - JOYSTICK
  • - LH

9 7022330

  • 7022330 - LEVER
  • W/Ref. 7

10 7025060

  • 7025060 - SECTION
  • VALVE
  • assy - Ref. 12
  • 14
  • 18
  • 19
  • 24
  • 25 & 28

11 7022332

  • 7022332 - VALVE CHECK

12 7022333

  • 7022333 - PLUG

13 7022334

  • 7022334 - KIT
  • SPOOL RETURN SPRING

14 7022335

  • 7022335 - KIT
  • SPOOL RETURN SPRING

15 7022336

  • 7022336 - KIT
  • SEAL
  • Includes Ref. 29 & (4) of Ref. 30

16 7022337

  • 7022337 - SPOOL
  • VALVE

17 7022338

  • 7022338 - SPOOL
  • VALVE

18 7022339

  • 7022339 - SPOOL
  • VALVE

19 7022340

  • 7022340 - LEVER

20 7022341

  • 7022341 - LEVER

21 7022342

  • 7022342 - VALVE
  • RELIEF
  • anti-cavitation

22 7022343

  • 7022343 - VALVE
  • RELIEF

23 7022344

  • 7022344 - VALVE
  • RELIEF

24 7022345

  • 7022345 - VALVE
  • RELIEF

25 7022505

  • 7022505 - VALVE
  • RELIEF

26 7025065

  • 7025065 - SECTION
  • VALVE
  • assy - Ref. 12
  • 14
  • 17 & 28

27 7022506

  • 7022506 - KIT
  • SEAL
  • one spool

28 7022564

  • 7022564 - WASHER

29 7023331

  • 7023331 - NUT
