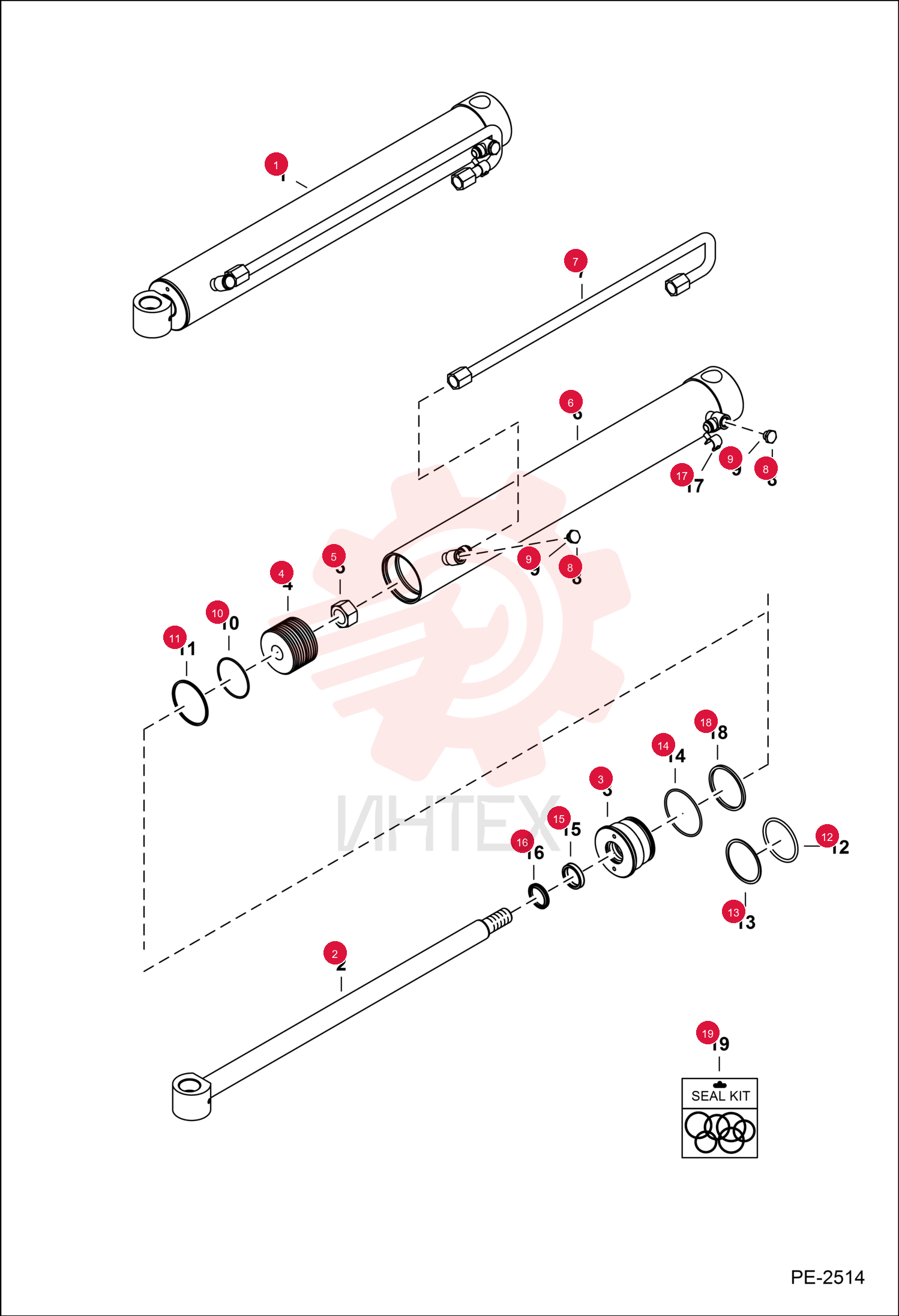

ASSY, CYL 7127686 (4)
1 7127686
- 7127686 - ASSY
- CYL
- Ref. 2-6 & 8-16 - tubeline clamp is 152 mm (6.00") from cylinder end
2 7104736
- 7104736 - SHAFT
- 38
- 1 mm (1.5") OD
3 6595035
- 6595035 - HEAD
4 6810539
- 6810539 - NUT
5 7127707
- 7127707 - CASE
- Use W/ 7127686 cylinder
6 7131047
- 7131047 - TUBELINE
- Use W/ 7127686 cylinder
7 6816855
- 6816855 - PLUG
8 75K7
- 75K7 - O-RING
9 25K30300
- 25K30300 - O RING 10
- Was 54K30300
10 1530265
- 1530265 - SEAL
- PISTON
11 54K60304
- 54K60304 - O-RING
- Was 58K338
12 82K238
- 82K238 - O-RING 10
13 6667326
- 6667326 - SEAL
14 6690707
- 6690707 - WIPER
- ROD CYL
- Was 6665086
15 7196894
- 7196894 - KIT
- SEAL
- Ref. 5 & 10-16 - Was 7135555
