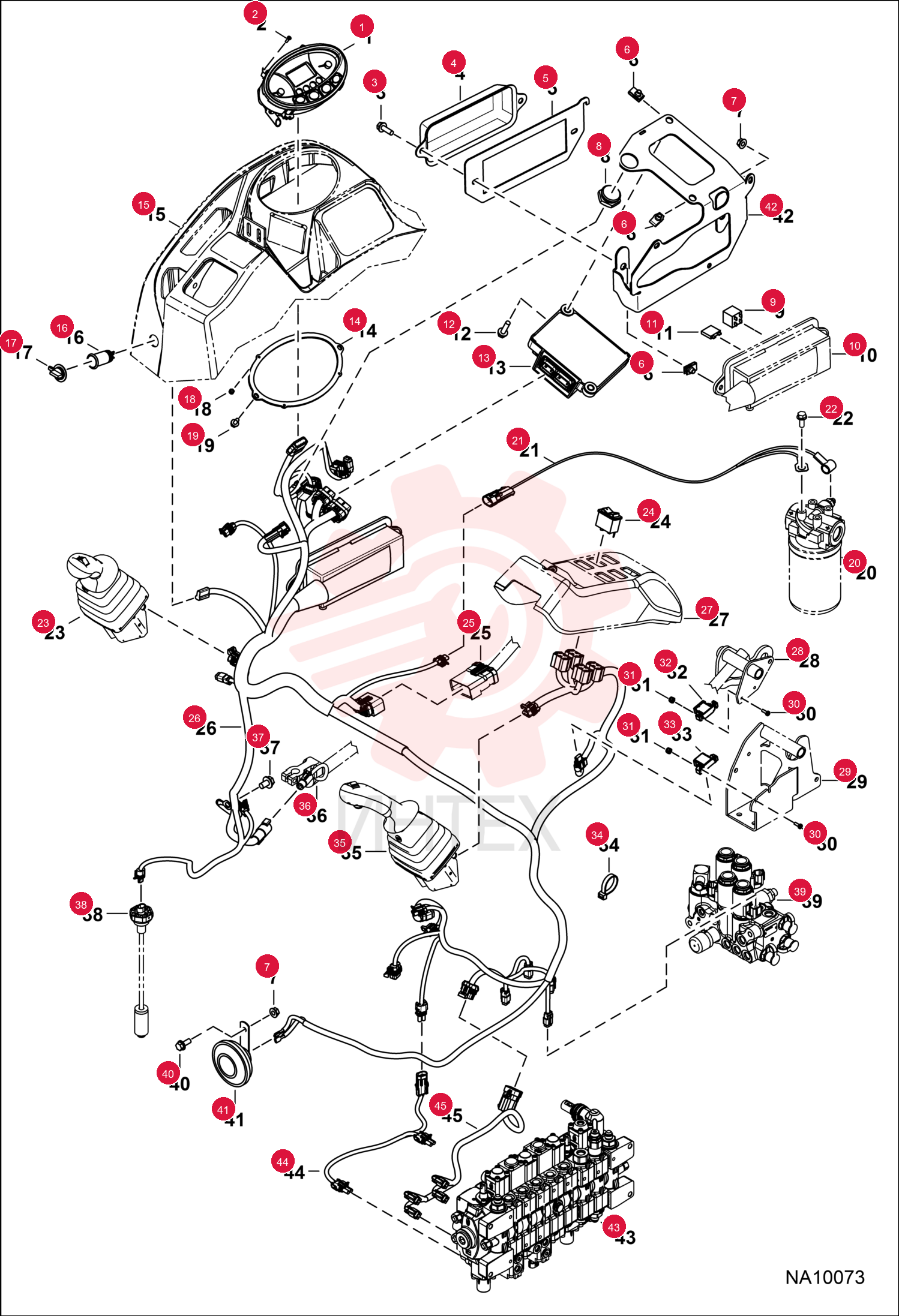

DISPLAY, STD 7023784

DISPLAY, STD 7023784

DISPLAY, STD 7023784

1 7023784

  • 7023784 - DISPLAY
  • STD
  • electric hydraulic controls

2 7217826

  • 7217826 - PANEL
  • INSTRUMENT
  • manual controls

3 27CM312

  • 27CM312 - SCREW

4 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

5 6716621

  • 6716621 - COVER
  • FUSE

6 7223778

  • 7223778 - COVER
  • FUSE BOX

7 6676169

  • 6676169 - NUT

8 43DM8

  • 43DM8 - NUT FLANGED HEX

9 6675705

  • 6675705 - ALARM

10 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

11 7155390

  • 7155390 - HOUSING
  • FUSE RELAY

12 6702444

  • 6702444 - FUSE 25A 5

13 6625575

  • 6625575 - FUSE
  • 20A

14 6654806

  • 6654806 - FUSE
  • 15A

15 6654805

  • 6654805 - FUSE 10A

16 6663289

  • 6663289 - FUSE
  • 5A

17 29CM830

  • 29CM830 - SCREW HEX

18 7260940

  • 7260940 - CONTROLLER GATEWAY
  • Was 7024906

19 7218019

  • 7218019 - PLATE
  • DASHBOARD

20 7224410

  • 7224410 - UPPERSTRUCTURE

21 6664223

  • 6664223 - OUTLET ELECTRICAL

22 6664224

  • 6664224 - CAP

23 7171265

  • 7171265 - NUT HEX LOCKING M3

24 29CM612

  • 29CM612 - BOLT
  • FLANGED

25 6688385

  • 6688385 - FILTER OIL HYDRAULIC ASSY

26 7198838

  • 7198838 - HARNESS
  • SWITCH

27 35C610

  • 35C610 - BOLT 5

28 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

29 6674025

  • 6674025 - SWITCH
  • blade lock/track expansion

30 7217815

  • 7217815 - HARNESS
  • ENG

31 7244548

  • 7244548 - HARNESS
  • FRAME
  • W/Ref. 3-6 & 9-11

32 7165562

  • 7165562 - COVER
  • LH

33 7215320

  • 7215320 - HANDLE

34 7334529

  • 7334529 - HOLDER CONSOLE
  • Was 7224007

35 87G808

  • 87G808 - SCREW

36 50D8

  • 50D8 - NUT

37 6680428

  • 6680428 - SENSOR

38 6680427

  • 6680427 - SENSOR
  • lockout

39 6624289

  • 6624289 - STRAP
  • TIE

40 7220731

  • 7220731 - JOYSTICK
  • LH
  • - manual controls

41 7217814

  • 7217814 - CABLE
  • POSITIVE

42 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

43 7287030

  • 7287030 - SENSOR
  • FUEL
  • Was 7179838

44 7222969

  • 7222969 - MANIFOLD
  • HYD ASSY

45 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

46 6671106

  • 6671106 - ALARM

47 7218030

  • 7218030 - HOLDER
  • FUSE

48 7217804

  • 7217804 - HARNESS
  • SWITCH

49 7243646

  • 7243646 - HARNESS
  • CONTROL EH
