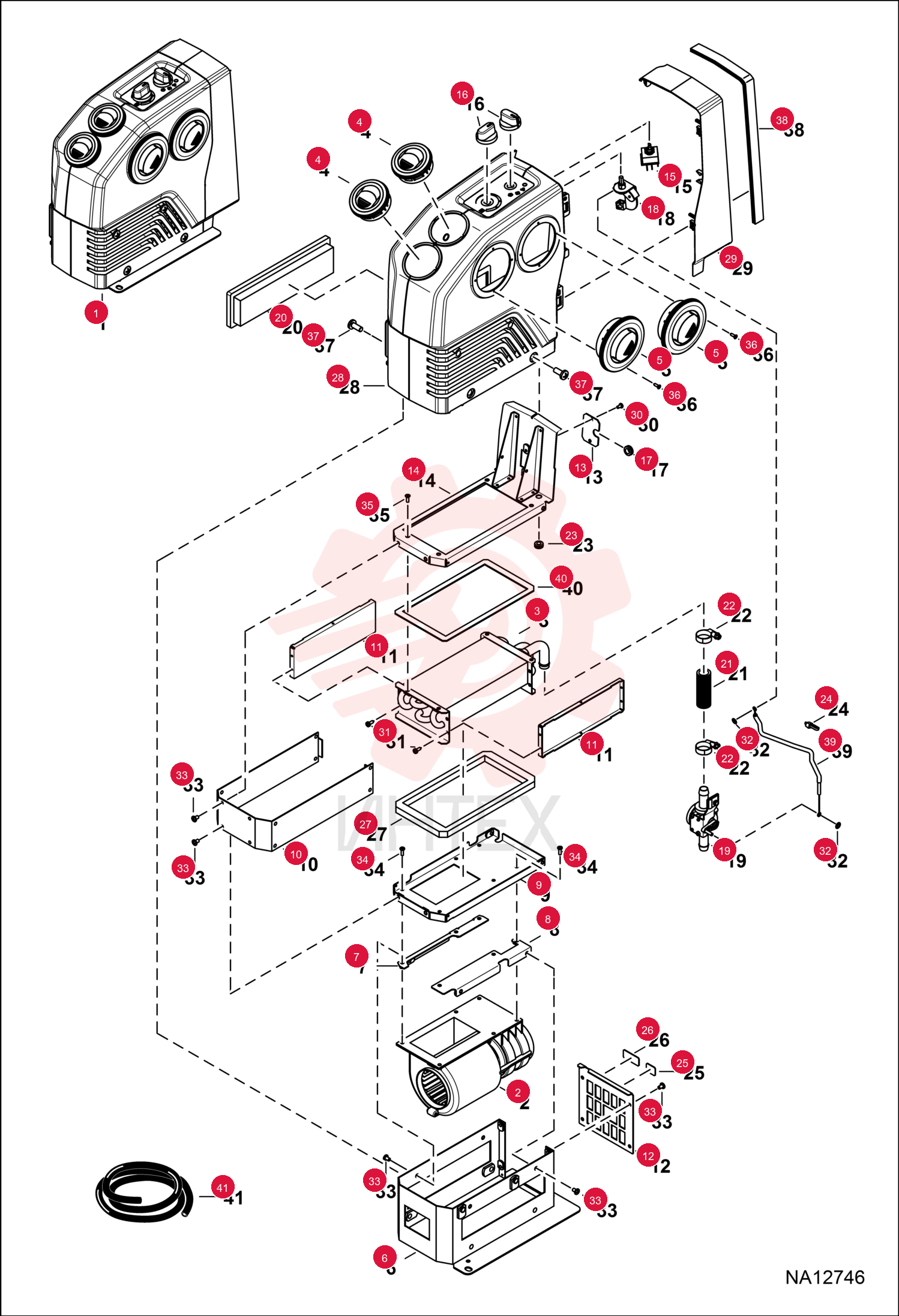

HEATER CAB 7310920

HEATER CAB 7310920

HEATER CAB 7310920

1 7310920

  • 7310920 - HEATER CAB
  • Ref. 2-41

2 7260016

  • 7260016 - BLOWER ASSY

3 7260017

  • 7260017 - COIL
  • HEATER

4 7011095

  • 7011095 - LOUVER

5 7011094

  • 7011094 - LOUVER

6 7260018

  • 7260018 - HOUSING
  • BASE

7 7260019

  • 7260019 - BRACKET
  • HEATER

8 7260020

  • 7260020 - BRACKET
  • HEATER

9 7260021

  • 7260021 - MOUNT
  • FAN

10 7260022

  • 7260022 - HOUSING
  • MIDDLE

11 7260023

  • 7260023 - COVER
  • PLATE

12 7260024

  • 7260024 - COVER
  • HEATER

13 7260025

  • 7260025 - COVER
  • WIRING

14 7261952

  • 7261952 - HOUSING
  • UPPER

15 6675176

  • 6675176 - SWITCH

16 6684940

  • 6684940 - KNOB

17 7260026

  • 7260026 - GROMMET

18 6676622

  • 6676622 - CONTROL

19 7217229

  • 7217229 - HEATER CONTROL VALVE

20 7176099

  • 7176099 - FILTER
  • AIR FRESH 10
  • Was 7260027

21 7028473

  • 7028473 - CLAMP
  • HOSE

22 6684947

  • 6684947 - GROMMET

23 7334202

  • 7334202 - STRAP TIE
  • Was 7260028

24 7010689

  • 7010689 - OVERLAY 'IN'

25 7010690

  • 7010690 - OVERLAY 'OUT'

26 7003460

  • 7003460 - SEAL
  • FOAM

27 7260030

  • 7260030 - HOUSING

28 7260031

  • 7260031 - COVER ASSEMBLY

29 7260032

  • 7260032 - SCREW

30 7260033

  • 7260033 - SCREW
  • TAPPING

31 7010692

  • 7010692 - PUSHNUT

32 7260034

  • 7260034 - SCREW

33 7010265

  • 7010265 - BOLT

34 7260035

  • 7260035 - SCREW

35 7011086

  • 7011086 - SCREW
  • TAPPING

36 7260036

  • 7260036 - SCREW

37 7260038

  • 7260038 - SEAL

38 7260039

  • 7260039 - CABLE ASSY

39 6693236

  • 6693236 - FOAM

40 6684944

  • 6684944 - HEATER HOSE
  • bulk - sold per foot
