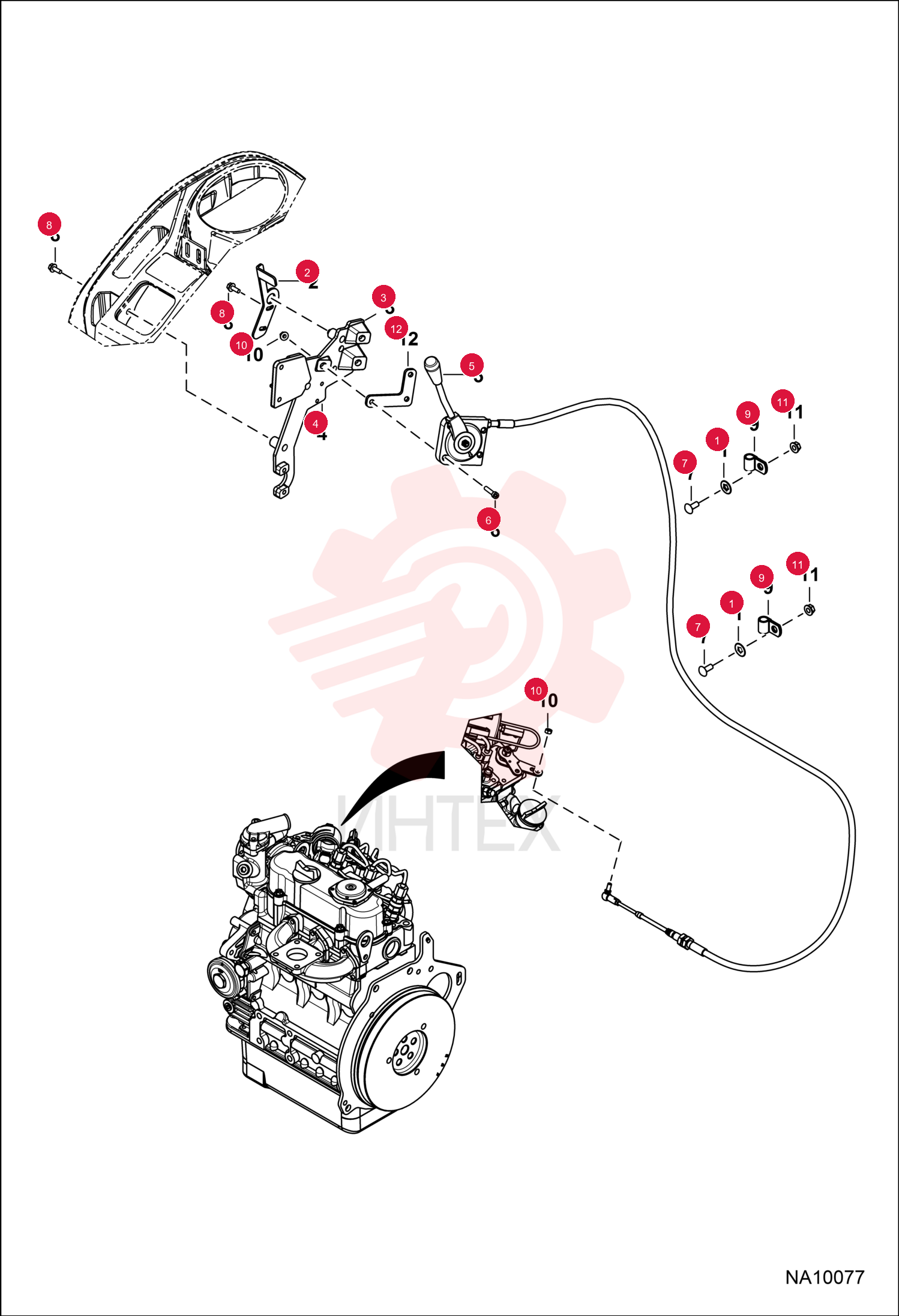

RETAINER 6675859 (2)

RETAINER 6675859 (2)

RETAINER 6675859 (2)

1 6675859

  • 6675859 - RETAINER

2 7187772

  • 7187772 - STOP
  • THROTTLE

3 7187775

  • 7187775 - BRACKET

4 7187787

  • 7187787 - HOLDER

5 7217858

  • 7217858 - LEVER
  • THROTTLE

6 27CM630

  • 27CM630 - SCREW

7 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

8 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

9 30H32

  • 30H32 - CLIP

10 43DM6

  • 43DM6 - NUT FLANGED HEX

11 43DM8

  • 43DM8 - NUT FLANGED HEX

12 7258404

  • 7258404 - SPACER
  • if equipped
