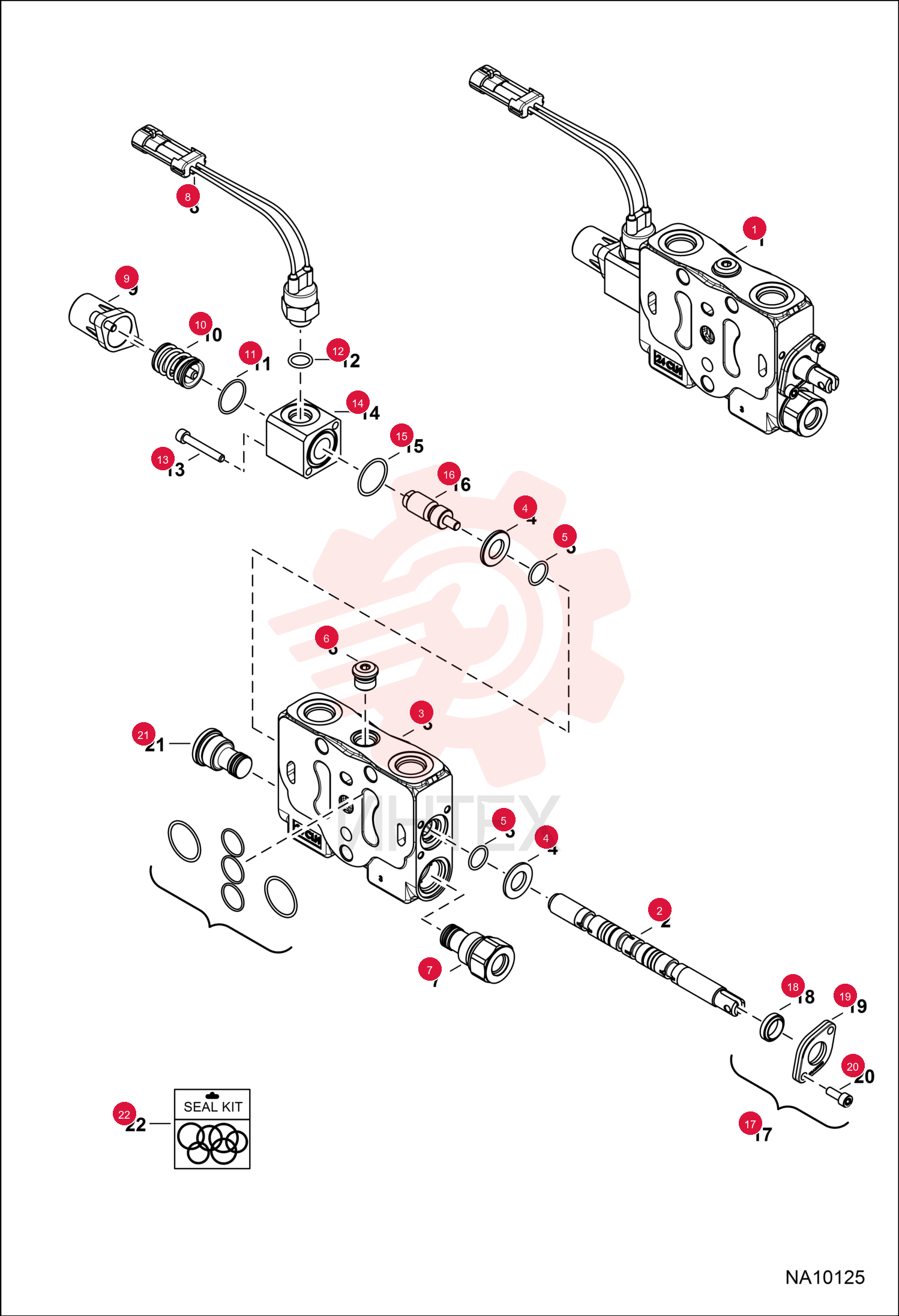

SECTION, VALVE 7259698

SECTION, VALVE 7259698

SECTION, VALVE 7259698

1 7259698

  • 7259698 - SECTION
  • VALVE
  • Ref. 2-21

2 7015382

  • 7015382 - SPOOL

3 6693131

  • 6693131 - KIT
  • Ref. 4-6

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 6680093

  • 6680093 - PLUG ASSEMBLY

7 6693139

  • 6693139 - GF/SDS100-SAE6 INLET JOINT

8 7259667

  • 7259667 - SENSOR
  • MAGNETIC

9 6679496

  • 6679496 - END CAP

10 7259656

  • 7259656 - KIT
  • SPOOL

11 7015578

  • 7015578 - O-RING

12 6679605

  • 6679605 - O-RING

13 6679501

  • 6679501 - SCREW

14 7015381

  • 7015381 - BLOCK
  • VALVE
  • Was 6679910

15 6679604

  • 6679604 - O-RING

16 6685780

  • 6685780 - CONTROL ASSEMBLY

17 6680097

  • 6680097 - COVER
  • END
  • Ref. 18-20

18 6679912

  • 6679912 - SEAL

19 6679911

  • 6679911 - FLANGE

20 6680071

  • 6680071 - SCREW

21 6680057

  • 6680057 - PLUG ASSEMBLY

22 7259707

  • 7259707 - KIT
  • SEAL
