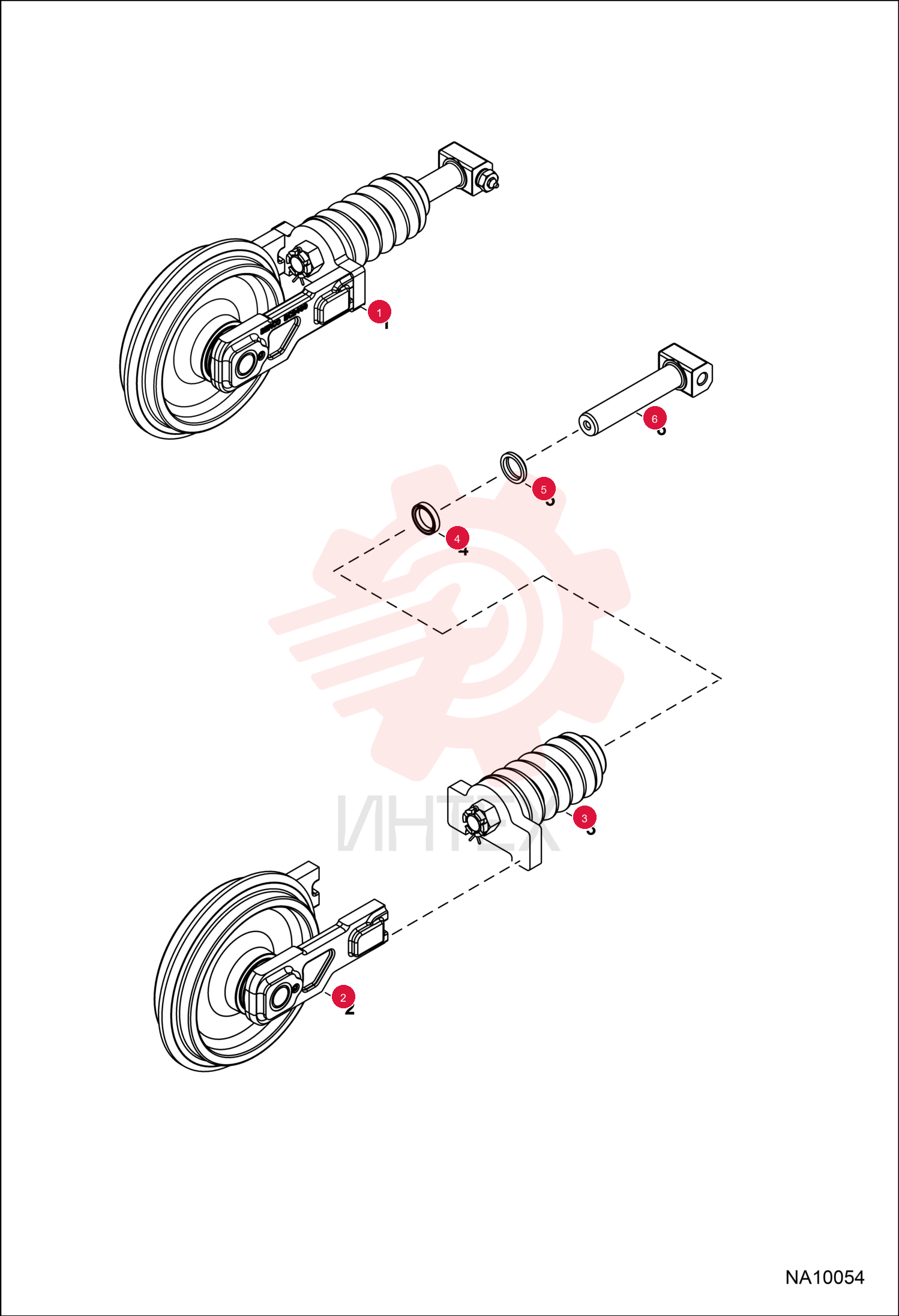

IDLER ASSEMBLY 7218754

IDLER ASSEMBLY 7218754

IDLER ASSEMBLY 7218754

1 7218754

  • 7218754 - IDLER ASSEMBLY
  • Ref. 2-6

2 7265760

  • 7265760 - WHEEL
  • TENSIONER

3 7265761

  • 7265761 - SPRING
  • IDLER TRACK

4 7256897

  • 7256897 - SEAL
  • WIPER ROD

5 7256896

  • 7256896 - RING
  • WEAR

6 7256895

  • 7256895 - SHAFT
  • ROD CYL
