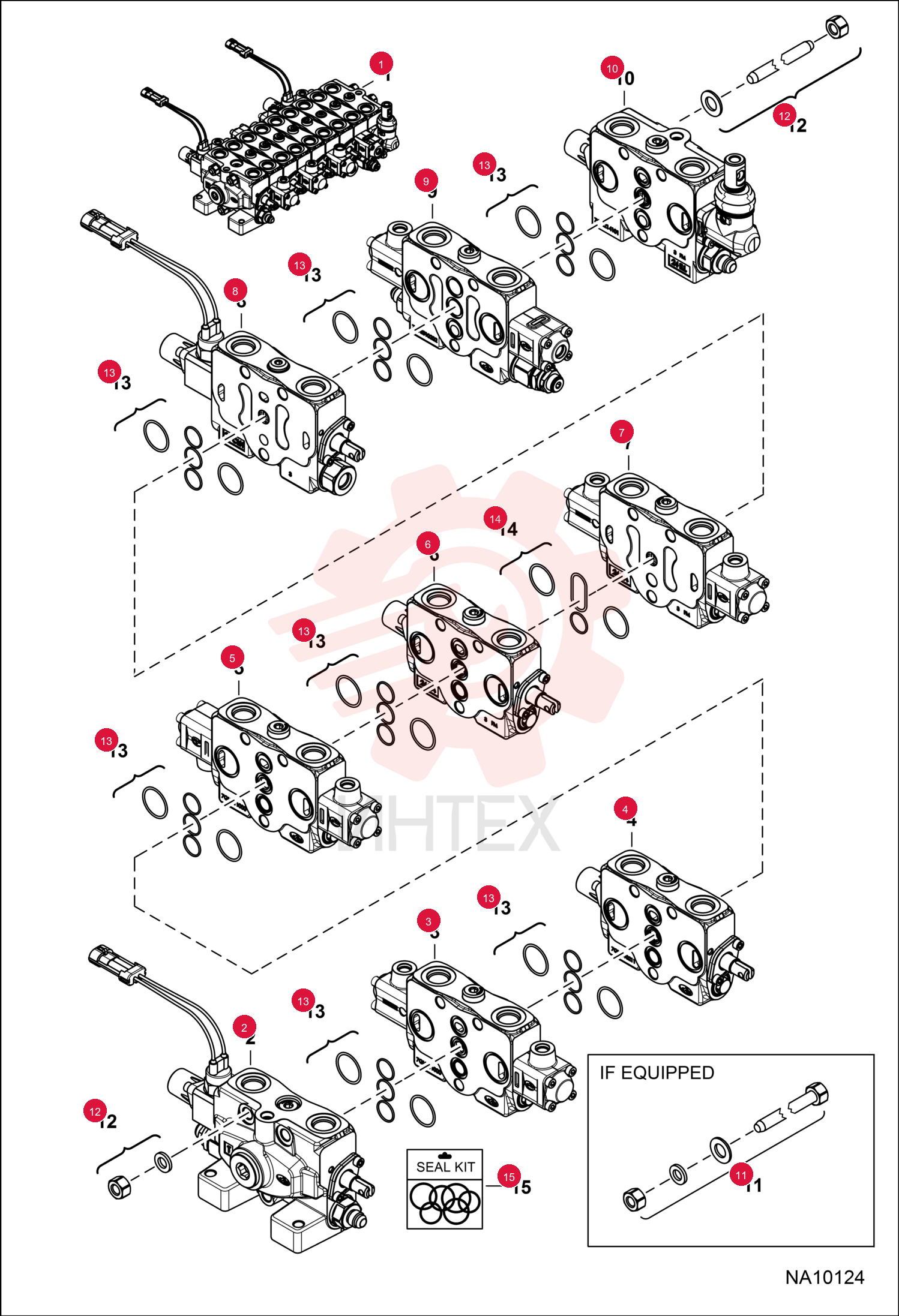

VALVE CONTROL 7354140 (2)

VALVE CONTROL 7354140 (2)

VALVE CONTROL 7354140 (2)

1 7354140

  • 7354140 - VALVE CONTROL
  • Ref. 2-10

2 7362816

  • 7362816 - SECTION VALVE CONTROL
  • - RH travel

3 7259693

  • 7259693 - SECTION
  • VALVE
  • - arm

4 7259694

  • 7259694 - SECTION
  • VALVE
  • - boom swing offset

5 7259695

  • 7259695 - SECTION
  • VALVE
  • - bucket

6 7259696

  • 7259696 - SECTION
  • VALVE
  • - auxiliary

7 7319371

  • 7319371 - VALVE SECTION
  • - boom

8 7259698

  • 7259698 - SECTION
  • VALVE
  • - LH travel

9 7259699

  • 7259699 - SECTION
  • VALVE
  • - slew

10 7259700

  • 7259700 - SECTION
  • VALVE
  • - blade

11 7259726

  • 7259726 - ROD
  • TIE

12 6680066

  • 6680066 - KIT
  • SEAL

13 6680064

  • 6680064 - KIT
  • SEAL

14 7369080

  • 7369080 - KIT SEAL
  • complete
