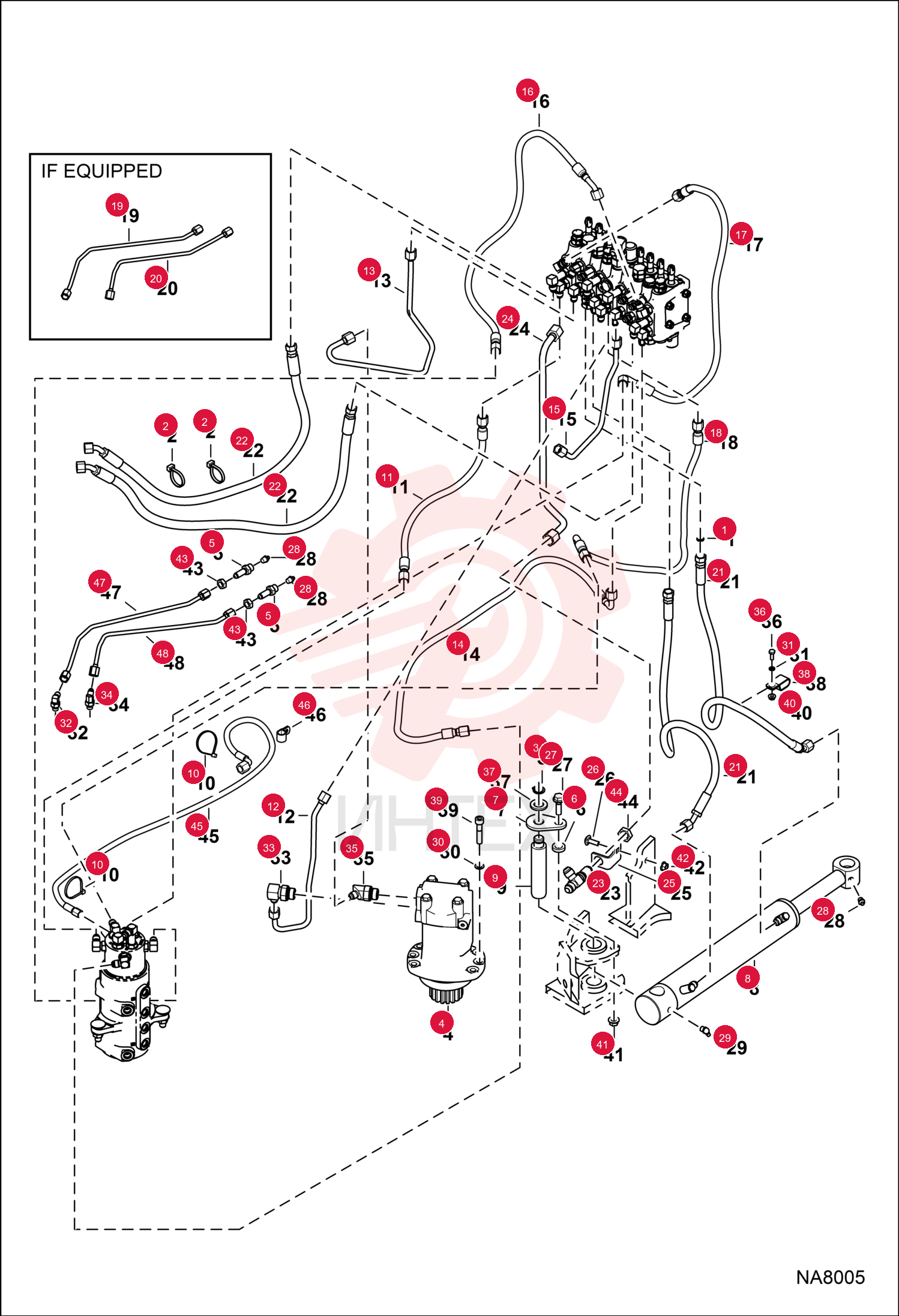

ORIFICE 6586430 (3)

ORIFICE 6586430 (3)

ORIFICE 6586430 (3)

1 6586430

  • 6586430 - ORIFICE
  • if equipped

2 6624289

  • 6624289 - STRAP
  • TIE

3 6662745

  • 6662745 - SNAP RING

4 6693416

  • 6693416 - SLEW MOTOR

5 6807184

  • 6807184 - FITTING

6 6814436

  • 6814436 - WASHER

7 7112322

  • 7112322 - EAR

8 7222481

  • 7222481 - CYLINDER
  • - Was 7133312

9 7135395

  • 7135395 - PIN

10 6610510

  • 6610510 - STRAP
  • TIE 10

11 7199401

  • 7199401 - HOSE
  • HYD

12 7138934

  • 7138934 - TUBELINE

13 7138935

  • 7138935 - TUBELINE

14 7199402

  • 7199402 - HOSE
  • HYD

15 7138937

  • 7138937 - TUBELINE

16 7199403

  • 7199403 - HOSE
  • HYD

17 7199404

  • 7199404 - HOSE
  • HYD

18 7199406

  • 7199406 - HOSE
  • HYD

19 7138944

  • 7138944 - TUBELINE
  • if equipped

20 7138945

  • 7138945 - TUBELINE
  • if equipped

21 7143545

  • 7143545 - HOSE ASSY

22 7144749

  • 7144749 - HOSE

23 91K6

  • 91K6 - TEE

24 7150754

  • 7150754 - TUBELINE

25 7150761

  • 7150761 - HOLDER

26 7159145

  • 7159145 - BOLT

27 7159236

  • 7159236 - BOLT

28 10H25

  • 10H25 - FTG GREASE STRAIGHT

29 11H15

  • 11H15 - FTG GREASE STRAIGHT
  • 45 degree

30 15EM100

  • 15EM100 - WASHER

31 15EM60

  • 15EM60 - WASHER

32 79K4

  • 79K4 - O RING 10

33 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

34 79K10

  • 79K10 - O RING 10

35 17KB0610

  • 17KB0610 - FITTING
  • HYD ELBOW

36 79K4

  • 79K4 - O RING 10

37 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW

38 79K10

  • 79K10 - O RING 10

39 18KB0610

  • 18KB0610 - FITTING
  • HYD ELBOW

40 1CM616

  • 1CM616 - SCREW HEX CAP

41 1EM180

  • 1EM180 - WASHER

42 31H31

  • 31H31 - CLIP

43 3GM1050

  • 3GM1050 - SCREW

44 43DM6

  • 43DM6 - NUT FLANGED HEX

45 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

46 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

47 86F3

  • 86F3 - NUT 10

48 86F6

  • 86F6 - NUT HYDR BHD LOCK

49 7199410

  • 7199410 - HOSE
  • HYD

50 30H34

  • 30H34 - CLAMP

51 7273022

  • 7273022 - TUBELINE
  • HYD

52 7273023

  • 7273023 - TUBELINE
  • HYD
