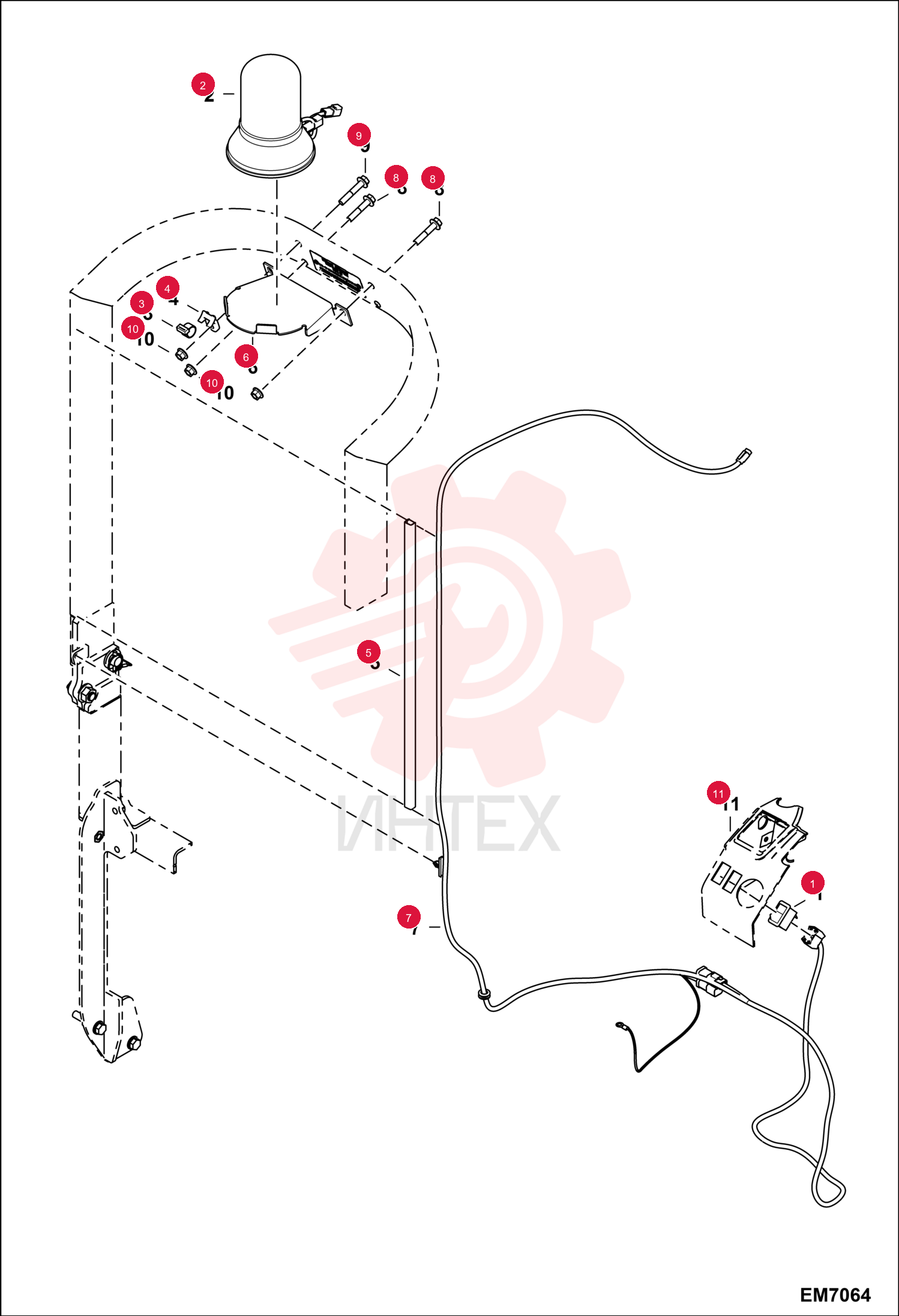

SWITCH 6668816 (1)

SWITCH 6668816 (1)

SWITCH 6668816 (1)

1 6668816

  • 6668816 - SWITCH

2 7341779

  • 7341779 - LIGHT BEACON
  • Was 6675523

3 6678669

  • 6678669 - STRAP T250 H/D

4 6679034

  • 6679034 - MOUNT

5 6682741

  • 6682741 - RETAINER

6 7155871

  • 7155871 - HOLDER BEACON

7 7160072

  • 7160072 - HARNESS BEACON/STRB

8 29CM1050

  • 29CM1050 - BOLT

9 29CM1055

  • 29CM1055 - BOLT

10 43DM10

  • 43DM10 - NUT FLANGED HEX

11 7234481

  • 7234481 - COVER
  • CONSOLE
